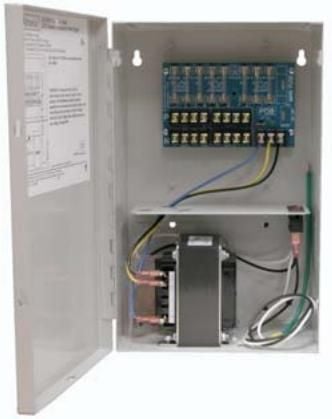

Altronix ALTV248175UL 8 Fused Outputs CCTV Power Supply, 24/28VAC @ 7.25A, 115VAC, BC200 Enclosure
SKU
ALTV248175UL
Model No
ALTV248175UL
$206.56
Product Highlights
- Input 115VAC, 50/60Hz, 1.73 amp
- 24VAC @ 7 amp (170VA) or 28VAC @ 6.25 amp (175VA) supply current
- Main fuse rated @ 10 amp/250V
- Illuminated power disconnect circuit breaker with manual reset
- Eight (8) fuse protected outputs, Outputs are rated 3.5 amp
Speak to an expert
This Altronix ALTV248175UL AC wall mount CCTV power supply provides 24VAC or 28VAC distributed via eight (8) fuse protected outputs for powering CCTV cameras, heaters, and other video accessories.
Altronix ALTV248175UL CCTV Power Supply Features
- Input: 115VAC, 50/60Hz, 1.73 amp for efficient power usage.
- Output Current: 24VAC @ 7 amp (170VA) or 28VAC @ 6.25 amp (175VA) for flexible voltage options.
- Main Fuse: Rated @ 10 amp/250V to protect against overloads.
- Power Disconnect: Illuminated circuit breaker with manual reset for safety.
- Fuse Protected Outputs: Eight (8) outputs rated 3.5 amp for stable power distribution.
- AC Power Indicator: LED shows power status for easy monitoring.
- Spare Fuses: Provided for convenience and quick replacements.
- Camera Synchronization: Maintains synchronization for smooth operation.
- Ease of Installation: Saves time and reduces labor costs, making setup straightforward.
Altronix ALTV248175UL Detailed Specifications
| Input Voltage | 115VAC |
| Input Frequency | 50/60Hz |
| Input Current | 1.73 amp |
| Output Voltage | 24VAC / 28VAC |
| Output Current | 7 amp / 6.25 amp |
| Main Fuse Rating | 10 amp / 250V |
| Number of Outputs | 8 |
| Output Rating per Channel | 3.5 amp |
| Dimensions | BC200 Enclosure |
SKU  | ALTV248175UL |
|---|---|
| Manufacturer | Altronix |
| Output Type | AC |
| Power Options | 6.25 amp @ 28VAC, 7 amp @ 24VAC |
| Input Voltage | 115VAC |
| Number of Outputs | 8 |
| Output Protection | Fuse |
| Fire Alarm Interface | No |
| Battery Charging | No |
| Certification | cUL, UL |
