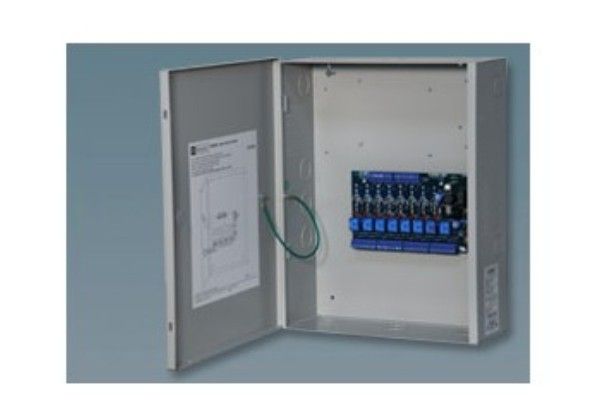

Altronix ACM8CBE Access Power Controller, 8 PTC Class 2 Relay Outputs, FAI, BC400 Enclosure

The ACM8CBE from Altronix is an Access Power Controller that is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The ACM8CBE converts one (1) 12 to 24 volt AC or DC input into eight (8) independently controlled PTC protected outputs. These outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc and they operate in both Fail-Safe and/or Fail-Secure modes. The ACM8CBE includes FACP Interface that enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. It also features fire alarm disconnect that is individually selectable for any or all of the eight (8) outputs.

Altronix ACM8CBE Access Control Features

• Eight (8) Access Control System outputs: Independently control multiple access devices, providing flexibility and efficiency.
• Red LEDs indicate outputs are triggered: Provides clear visual feedback that relays are energized, ensuring easy monitoring at a glance.
• Fire Alarm Disconnect: Enhances safety by allowing immediate response in the event of a fire emergency.
• Fire Alarm trigger LED: Clearly indicates activation, enabling quick response and verification of fire safety systems.
• Removable terminal blocks: Simplifies installation and reduces wiring complexity, saving time during setup.

Altronix ACM8CBE Detailed Specifications
