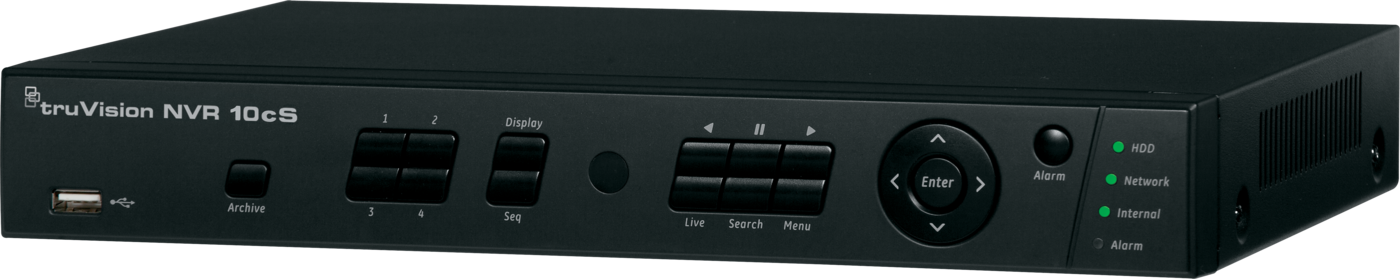

GE Security Interlogix TVN-1004CS-2T TruVision NVR10, 4 Channels, POE Switch, 20 Mbps, 2TB

SKU
TVN-1004CS-2T
GE Security Interlogix TVN-1004CS-2T TruVision NVR10, 4 Channels, POE Switch, 20 Mbps, 2TB TVN-1004CS-2T by Interlogix
GE Security Interlogix TVN-1004CS-2T TruVision NVR10, 4 Channels, POE Switch, 20 Mbps, 2TB TVN-1004CS-2T by Interlogix
Model No
TVN-1004CS-2T
$585.00
Qty:

Product Highlights
    • 4 HD Cameras (ONVIF/PSIA) in Real-time (30fps)
    • TruVision 4-Channel Encoders
    • Up to 8 Built-in PoE Ports
    • Plug-and-Play Camera Installation
    • Continuous, Motion or Scheduled Recording Modes

The TruVision NVR 10 (TVN 10) is a cost effective, network video recorder with up to 8 built-in PoE ports designed to support video streams from IP video cameras. With a total of 20/40/80Mbps of total bandwidth available, the NVR 10 can support up to 16 cameras at HD resolution in real-time (30fps) and many other configurations. Flexible bandwidth allocation per channel allows users to maximize recording performance. In addition to browser, software and mobile device management tools, the familiar front panel controls allow for easy operation. On-board PoE ports support up to 120 watts for ease of installation. IP camera support includes resolutions ranging from standard VGA to 5.0 megapixel, including Interlogix and third-party IP camera manufacturers. The NVR 10 also supports TruVision encoders for integrating existing analog cameras. Up to two internal hard disk drives may be configured for a total internal hard drive capacity of 2TB-6TB, making the NVR 10 ideal for megapixel camera applications.

Features

  • 4 HD Cameras (ONVIF/PSIA) in Real-time (30fps)
  • TruVision® and UltraView® IP Cameras from VGA through 5.0 Megapixel (indoor and outdoor)
  • TruVision 4-Channel Encoders
  • Up to 8 Built-in PoE Ports
  • Plug-and-Play Camera Installation
  • Continuous, Motion or Scheduled Recording Modes
  • Rack Mountable – 1.5 RU (CS model is not rack mountable)
  • Local USB Archiving
  • VGA and HDMI Output for High-quality Local Viewing
SKU  TVN-1004CS-2T
Manufacturer  Interlogix
IP Channels  4 Channels
Harddrive Size  2TB
Protocols  Axis Protocols, Interlogix Protocols, Onvif Protocols, Sony Protocols
Features  DDNS Functionality, HDMI Output (720p/1080p), Two-way Audio, Watermark Capability
Resolution   5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Compression   H.264
Bandwidth 20Mbps
Operating temperature   -10ºC ~+55ºC (14ºF~131ºF)
Dimensions  12.40 x 8.77 x 1.75 in.(315 x 222.8 x 44.5mm)
Voltage  48VDC
Power Consumption  ? 65 W
Network (1) RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces
SATA  (2) SATA interfaces
USB   (2) USB 2.0
Audio   1-channel, RCA (Linear, 600?)
DDNS Functionality Yes
HDMI Output (720p/1080p) Yes
Supports the Full HD Output (HDMI) Yes
Watermark Capability Yes
Two Way Audio  Yes
There are no related videos.
Downloads & Manuals
SKU
TVN-1004CS-2T
Availability: In stock
