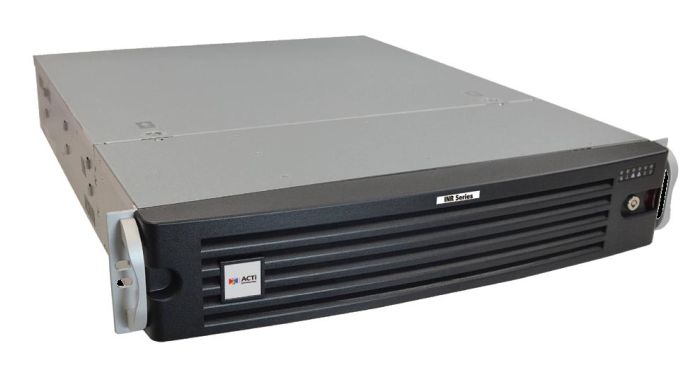

ACTi INR-430 200 Channel 8-Bay RAID Rackmount Standalone NVR
SKU
INR-430

ACTi Model INR-430

ACTi INR-430 200 Channel 8-Bay RAID Rackmount Standalone NVR

Free shipping
Model No
INR-430
$5,236.09
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 8-bay Rackmount (2U) with hardware RAID (0,1, 5,10)
  • Manage up to 200 cameras or video encoders
  • Recording up to 200 Channels
  • Live view local up to 16-channel, remote up to 64-channel
  • Synchronized playback local up to 9-channel, remote up to 64-channel

Overview

The INR-430 from Acti is a 200-Channel 8-bay RAID rackmount standalone NVR, designed for robust surveillance needs with seamless management of multiple video sources. Its advanced RAID technology ensures data integrity and security, while its capacity to handle up to 200 cameras makes it ideal for large-scale operations.

ACTi INR-430 Key Features

  • 8-bay Rackmount: Designed in a compact 2U form factor, it saves space while providing high capacity.
  • 200 Channel Management: Supports up to 200 cameras or video encoders for comprehensive surveillance coverage.
  • High-Quality Recording: Allows for recording of up to 200 channels simultaneously, ensuring every detail is captured.
  • Live View Flexibility: Offers local live viewing of up to 16 channels and remote viewing of up to 64 channels for versatile monitoring.
  • Synchronized Playback: Enables local playback of up to 9 channels and remote playback of up to 64 channels, making it easy to review footage.
  • Video Export Options: Provides RAW and AVI formats for exporting video, facilitating easy sharing and backup.
  • Advanced Event Management: Features event trigger, response, and notification capabilities for enhanced security measures.
  • Multi-Client Access: Supports Mobile Client, Web Client, and Workstation access, enhancing user convenience.
  • Location-Based Management: Utilize eMap for efficient organization and tracking of camera locations.
  • Included Licensing: Comes with a 64-channel free license to get started right away.
  • Wide Camera Compatibility: Supports non-ACTi cameras via a licensed Camera Device Pack, offering versatility.

ACTi INR-430 Detailed Specifications

Channel Capacity200
Recording ChannelsUp to 200 Channels
Live View Capacity16 Channels Local, 64 Channels Remote
Synchronized Playback Capacity9 Channels Local, 64 Channels Remote
Video Export FormatsRAW, AVI
Form Factor2U Rackmount
RAID Support0, 1, 5, 10
Licensing64-channel Free License Included
Client AccessMobile, Web, Workstation
Event ManagementTrigger, Response, Notification
Camera CompatibilityNon-ACTi via Licensed Camera Device Pack

Built-in Functions

  • Compression Supported
  • Alarm Notification by E-mail
  • Centralized E-map
  • Remote I/O Control
  • Supports the Full HD Output (HDMI)
  • Two Way Audio
  • Supports PTZ Control
  • H.264 Compression
  • MJPEG Compression
  • MPEG-4 Compression

Specifications

SKU  INR-430
Manufacturer  ACTi
IP Channels  200 Channels
Harddrive Size  No HDD
Protocols  ACTi Protocols, Dynacolor Protocols, Onvif Protocols, Visca Protocols
Features  Alarm Notification by E-mail, Audio, Centralized E-map, Compression Supported, H.264 Compression, MJPEG Compression, MPEG-4 Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio
Resolution    1920 x1080
Compression    H.264 , MPEG-4 , MJPEG
Operating temperature   0°C~ 40°C (32°F ~ 104°F)
Dimensions  88 mm x 482 mm x 560 mm (3.5” x 19” x 22.1”)
Voltage  110V~220V AC 50/60Hz
Power Consumption  85 W
USB    USB 2.0, 8 ports (2 front ports, 6 rear ports)
Audio    Two-way Audio
Frame Rate/Camera  Max 6000 fps total; Max 30 fps per camera
