Digital Watchdog DW-BJER4U84T-LX 128 Channels Blackjack E-Rack Linux 4U NVR, 84TB
SKU
DW-BJER4U84T-LX
Model No
DW-BJER4U84T-LX
$26,622.20
Product Highlights
- Storage Options: 4 - 144TB Internal Storage
- Record up to 128 IP Cameras with Total Throughput of 600Mbps
- Hot-Swappable HDDs
- Data Redundancy RAID-5, Redundant Power Supply
- Local Monitoring Outputs Ports
Speak to an expert

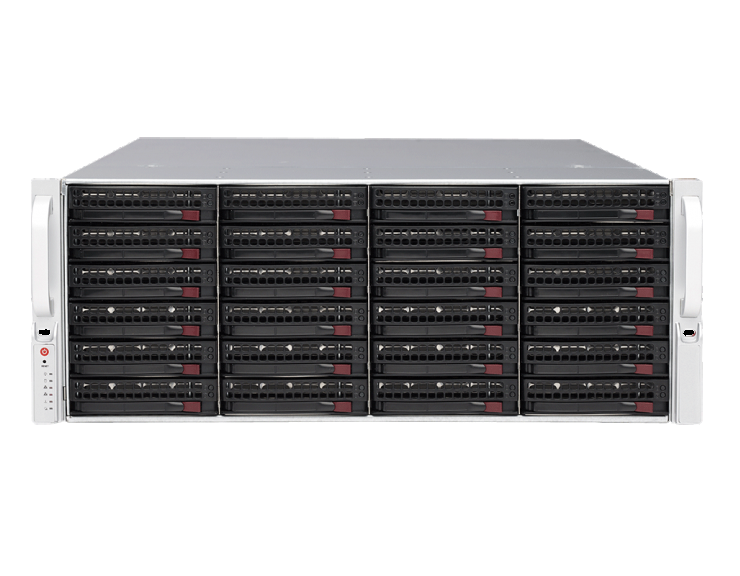

The Digital Watchdog DW-BJER4U84T-LX Blackjack E-Rack NVR is a powerful surveillance solution that can efficiently manage and record up to 128 1080P cameras simultaneously. Featuring advanced RAID 5 technology, an Intel® i7® processor, and scalable storage options from 4TB to 144TB, this NVR ensures high performance and ample storage capacity for demanding security environments. With DW Spectrum™ IPVMS software, you can enjoy easy camera management, remote access, and extensive system customization for optimal surveillance operations.
Digital Watchdog DW-BJER4U84T-LX Camera Features
- Storage Options: 4–144TB Internal Storage for flexible capacity management.
- Performance: Records up to 128 IP Cameras with a throughput of 600Mbps for seamless video capture.
- Hot-Swappable HDDs: Easily replace hard drives without downtime to maintain system availability.
- Data Redundancy: Utilizes RAID-5 technology and a Redundant Power Supply for enhanced data reliability.
- Local Monitoring Outputs: Multiple port options for monitoring including VGA, HDMI, and DP for versatile display setups.
- Dual Network Ports: Provides increased connectivity and improved network performance.
- Operating System: Runs on a dedicated Linux® OS, ensuring stability and performance.
- Integrated DW Spectrum™: Simplifies setup, configuration, monitoring, and recording for an all-in-one solution.
- Flexible Licensing: One-time recording license charge that is transferable between cameras to reduce long-term costs.
- No Maintenance Fees: Eliminate ongoing annual fees for cost-effectiveness.
- Enterprise Scalability: Easily expand your system as needs grow without complex reconfigurations.
- Auto Device Discovery: Automatically detects new devices, simplifying system setup and expansion.
- Dual Stream Recording: Efficiently records in multiple resolutions for versatile video management.
Digital Watchdog DW-BJER4U84T-LX Detailed Specifications
| Model | DW-BJER4U84T-LX |
| Channels | 128 |
| Camera Resolution | 2.1MP 1080P |
| Throughput | 600 Mbps |
| Processor | Intel® i7® |
| Memory | 8GB |
| Network Ports | 1Gbps X2 |
| Video Outputs | VGA / HDMI X 2 / DP X 4 |
| Operating System | Linux® on SSD |
| Storage Type | 4–144TB HDD (RAID-5) |
| Client Software Compatibility | Windows® and Mac® |
| ONVIF Compliance | Profile S |
SKU  | DW-BJER4U84T-LX |
|---|---|
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
| IP Channels | 128 Channels |
| Harddrive Size | 84TB |
| Protocols | Digital Watchdog Protocols, Onvif Protocols |
| Features | Audio, Centralized E-map, H.264 Compression, MJPEG Compression, MPEG-4 Compression, Redundant Power |
Resolution  | HD 1080p |
| Compression | MJPEG , MPEG4 , H.264 |
| Operating temperature | 10°C – 35°C (50°F – 95°F) |
| Dimensions | 698mm L x 437mm W x 178mm H (27.5" L x 17.2" W x 7.0" H) |
| Power Consumption | 1280W |
| Memory | 16GB (8x2 Dual Channel) |
| Redundant Power | Yes |
| Centralized E-map | Yes |
| H.264 Compression | Yes |
| MJPEG Compression | Yes |
| MPEG-4 Compression | Yes |
