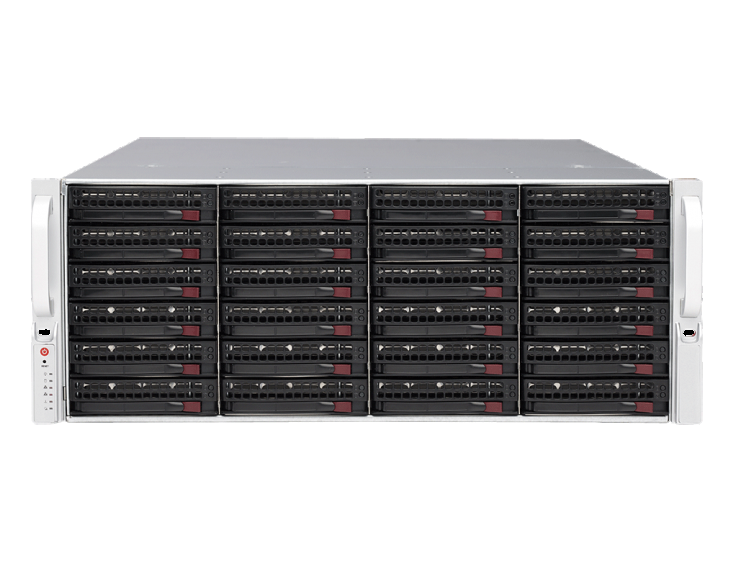

Digital Watchdog DW-BJER4U48T-LX 128 Channels Blackjack E-Rack Linux 4U NVR, 48TB
SKU
DW-BJER4U48T-LX
Model No
DW-BJER4U48T-LX
$20,231.80
Product Highlights
- Storage Options: 4 - 144TB Internal Storage
- Record up to 128 IP Cameras with Total Throughput of 600Mbps
- Hot-Swappable HDDs
- Data Redundancy RAID-5, Redundant Power Supply
- Local Monitoring Outputs Ports
Speak to an expert
The Digital Watchdog DW-BJER4U48T-LX Blackjack E-Rack NVR is an advanced network video recorder that seamlessly manages and records up to 128 HD cameras at 30fps, delivering exceptional performance with its robust hardware and cutting-edge software features. With extensive storage options and easy scalability, it is perfect for enterprise-level surveillance needs, offering reliable security and convenience for users.
Digital Watchdog DW-BJER4U48T-LX Key Features
- Storage Options: 4–144TB Internal Storage for extensive video retention capabilities.
- High Performance: Record up to 128 IP Cameras with a total throughput of 600Mbps, ensuring smooth video streams.
- Hot-Swappable HDDs: Allows for easy replacement of hard drives without downtime, enhancing system reliability.
- Data Redundancy: Built-in RAID-5 and redundant power supply provide data protection and system uptime.
- Local Monitoring Outputs: Multiple ports available to connect to displays, facilitating real-time monitoring.
- Dual Network Ports: Enhances network reliability and performance, providing redundancy.
- Linux® OS: Runs on a dedicated SSD, improving system responsiveness and stability.
- DW Spectrum™ Support: Comprehensive setup and monitoring tools simplify video management.
- Licensing: One-time recording license charge that is fully transferable between cameras and encoders, offering cost savings.
- No Annual Maintenance Fees: Reduces long-term operational costs and makes budgeting easier.
- Enterprise Scalability: Simple to expand with additional storage or devices as needs grow.
- Auto Device Discovery: Streamlines the initial setup and configuration process, saving time.
- Dual Stream Recording: Allows for simultaneous recording of different resolutions for flexible storage management.
Digital Watchdog DW-BJER4U48T-LX Specifications
| Feature | Details |
|---|---|
| Model | DW-BJER4U48T-LX |
| Channels | 128 |
| Camera Resolution | 2.1mp 1080P |
| Frame Rate | 30fps |
| Throughput | 600 Mbps |
| Storage Capacity | 4–144TB |
| Processor | Intel® i7® |
| Memory | 8GB |
| Network Ports | 1Gbps X2 |
| Video Output | VGA / HDMI X 2 / DP X 4 |
| Operating System | Linux® |
| Drive Type | Hot-Swappable HDDs, RAID 5 |
| Dimensions | 4U Rackmount |
SKU  | DW-BJER4U48T-LX |
|---|---|
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
| IP Channels | 128 Channels |
| Harddrive Size | 48TB |
| Protocols | Digital Watchdog Protocols, Onvif Protocols |
| Features | Audio, Centralized E-map, H.264 Compression, MJPEG Compression, MPEG-4 Compression, Redundant Power |
Resolution  | HD 1080p |
| Compression | MJPEG , MPEG4 , H.264 |
| Operating temperature | 10°C – 35°C (50°F – 95°F) |
| Dimensions | 698mm L x 437mm W x 178mm H (27.5" L x 17.2" W x 7.0" H) |
| Power Consumption | 1280W |
| Memory | 16GB (8x2 Dual Channel) |
| Redundant Power | Yes |
| Centralized E-map | Yes |
| H.264 Compression | Yes |
| MJPEG Compression | Yes |
| MPEG-4 Compression | Yes |
