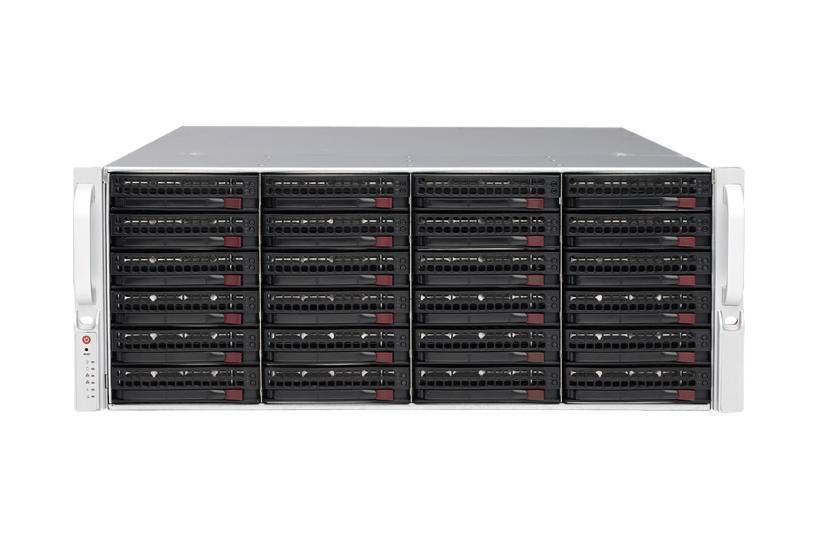

Digital Watchdog DW-BJER4U162T 128 Channel NVR Windows 7 OS, Raid 6, 162TB
- 162TB Storage
- Record up to 128 IP Cameras with Total Throughput of 600Mbps
- Hot-Swappable HDDs
- Data Redundancy RAID-6, Redundant Power Supply
- Local Monitoring Outputs Ports
Digital Watchdog DW-BJER4U162T 128 Channel NVR Windows 7 OS, Raid 6, 162TB. The Blackjack E-RACK™ NVR powered by DW Spectrum™ IPVMS can record and manage up to 128 2.1mp 1080P Cameras at 30fps, with 600 Mbps throughput. The NVR’s hardware offers RAID 6, Intel® i7® Processor, 8GB Memory, 1Gbps X2, VGA / HDMI X 2 / DP X 4, with Windows® 7 OS on an SSD card and scheduled auto reboot for hardware performance. The Blackjack™ NVR supports cross platform connectivity for Windows® and Mac® client software, allowing you to monitor and connect to your system from anywhere. The NVR is powered by DW Spectrum™ IPVMS, offering you great features such as Automatic Camera Detection, Fully Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping and Advanced Motion Masking and Sensitivity Settings. The Blackjack™ NVR is ONVIF Profile S conformant and is available with 4-TB HDD for true Enterprise Scalability.
Digital Watchdog DW-BJER4U162T Camera Features
Features
- 162TB Storage: Ample space for extensive video recordings without interruptions.
- Record up to 128 IP Cameras: Total Throughput of 600Mbps ensures high-quality video performance.
- Hot-Swappable HDDs: Allows for easy drive swaps and upgrades without downtime.
- Data Redundancy RAID-6: Protects data against drive failures with built-in redundancy.
- Redundant Power Supply: Ensures continuous operation even during power issues.
- Local Monitoring Outputs Ports: Multiple ports for versatile connection options.
- Dual Network Ports: Enhances network performance and reliability.
- USB & SD Card Interface: Facilitates easy data transfer and backup capabilities.
- OS Programming Information: Pre-installed Windows® 7 OS on an SSD for optimized performance.
- Hosting DW Spectrum™: All-in-one solution for setup, configuration, monitoring, and recording.
- One-time Recording License Charge: Cost-effective licensing model that is fully transferable.
- No Annual Maintenance Fees: Reduces overall ownership costs for users.
- Simple Enterprise Scalability: Easily expand your system as your needs grow.
- Auto Device Discovery: Streamlines the setup process for connecting devices.
- Dual Stream Recording: Records high and low-resolution streams for flexibility in storage and bandwidth use.
Digital Watchdog DW-BJER4U162T Detailed Specifications
| Feature | Details |
| Model | DW-BJER4U162T |
| Number of Channels | 128 |
| Storage Capacity | 162TB |
| Processor | Intel® i7® |
| Memory | 8GB |
| Throughput | 600Mbps |
| OS | Windows® 7 |
| HDD Type | Hot-Swappable |
| Redundancy | RAID-6 |
| Power Supply | Redundant |
| Network Ports | Dual 1Gbps |
| Video Outputs | VGA / HDMI X 2 / DP X 4 |
| Camera Support | 2.1mp 1080P at 30fps |
| Client Software | DW Spectrum™ for Windows® and Mac® |
| Compliance | ONVIF Profile S |
| Licensing | One-time charge, fully transferable |
| Maintenance Fees | No annual fees |
SKU  | DW-BJER4U162T |
|---|---|
| Manufacturer | Digital Watchdog |
| NDAA | Compliant |
| IP Channels | 128 Channels |
| Harddrive Size | 162TB |
| Protocols | Digital Watchdog Protocols, Onvif Protocols |
| Features | Centralized E-map, HD Resolution, Redundant Power |
Resolution  | HD 1080p |
| Operating temperature | 10°C – 35°C (50°F – 95°F) |
| Dimensions | 698mm L x 437mm W x 178mm H (27.5" L x 17.2" W x 7.0" H) |
| Power Consumption | 1280W |
| Memory | 16GB (8x2 Dual Channel) |
| Redundant Power | Yes |
| HD Resolution | Yes |
| Centralized E-map | Yes |
