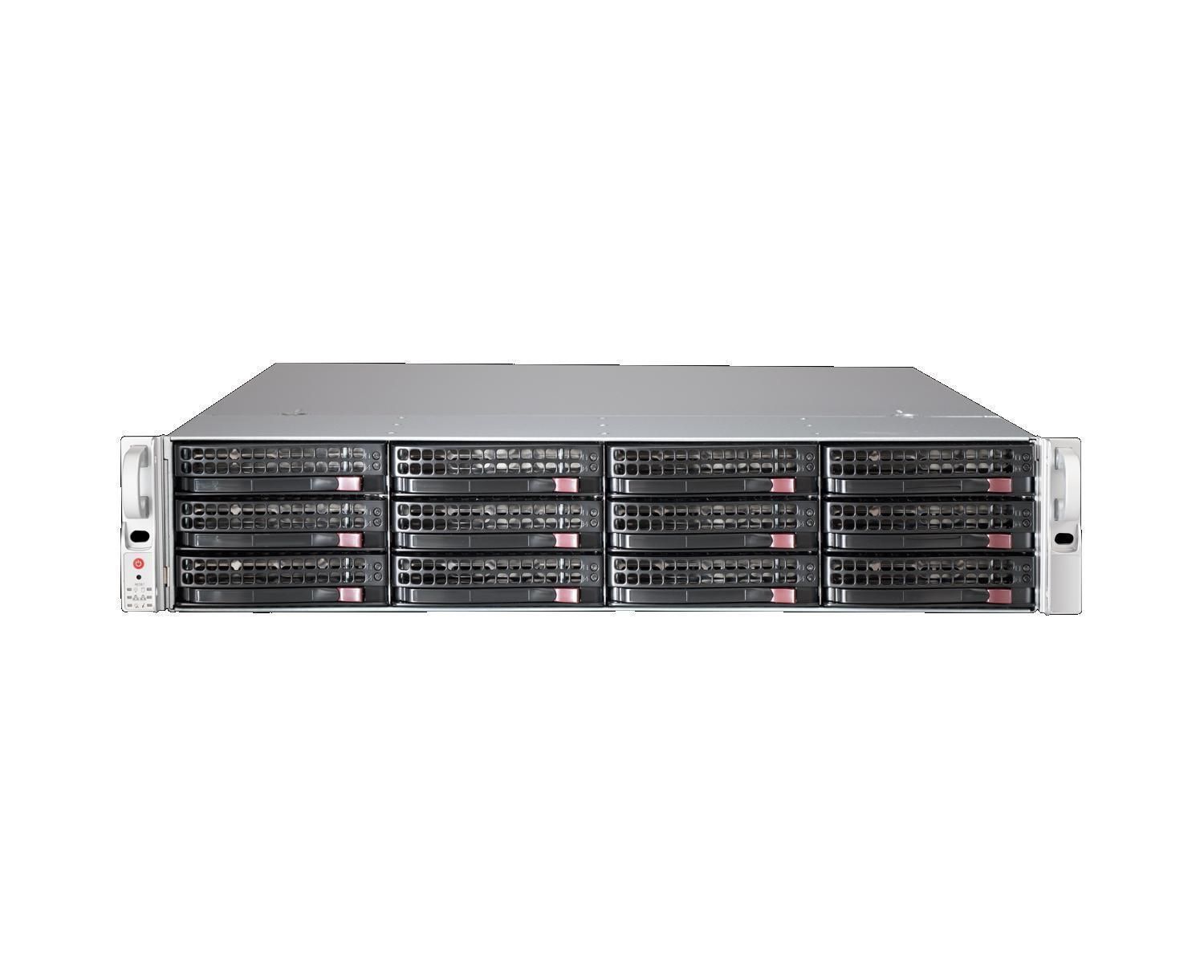

Digital Watchdog DW-BJER2U32T-LX 128 Channels Blackjack E-Rack Linux 2U NVR, 32TB

SKU
DW-BJER2U32T-LX
Model No
DW-BJER2U32T-LX
$15,847.86
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Additional Options
Product Highlights
  • Storage Options: 4 - 144TB Internal Storage
  • Record up to 128 IP Cameras with Total Throughput of 600Mbps
  • Hot-Swappable HDDs
  • Data Redundancy RAID-5, Redundant Power Supply
  • Local Monitoring Outputs Ports

The Digital Watchdog DW-BJER2U32T-LX Blackjack E-Rack Linux 2U NVR is an advanced security solution designed for maximum performance and efficiency. With the capability to manage up to 128 high-definition cameras simultaneously, it ensures exceptional recording quality and seamless operation. This NVR is equipped with impressive hardware and software features to support enterprise-level scalability, making it an ideal choice for comprehensive surveillance needs.

Digital Watchdog DW-BJER2U32T-LX Key Features

  • Storage Options: Choose from 4–144TB of internal storage for ample recording capacity.
  • High Throughput: Record up to 128 IP cameras with a total throughput of 600Mbps for flawless video streaming.
  • Hot-Swappable HDDs: Ensure continuous operation with hard drives that can be replaced without system downtime.
  • Data Redundancy: RAID-5 support and a redundant power supply safeguard against data loss.
  • Local Monitoring Outputs: Multiple output ports for easy local monitoring directly from the unit.
  • Dual Network Ports: Increase network efficiency and resilience with dual-port configuration.
  • Linux® OS: Built on a robust Linux operating system for enhanced reliability.
  • Hosting DW Spectrum™: Integrates powerful software for setup, configuration, monitoring, and recording.
  • One-time License Fee: Pay once for recording licenses, which are fully transferable between cameras and encoders.
  • No Annual Fees: Enjoy ongoing value with no annual maintenance fees required.
  • Simple Scalability: Easily expand your system to suit growing surveillance needs.
  • Auto Device Discovery: Streamlines the process of connecting cameras and devices.
  • Dual Stream Recording: Supports dual streaming for efficiency and flexibility in video quality.

Digital Watchdog DW-BJER2U32T-LX Detailed Specifications

FeatureDetails
ModelDW-BJER2U32T-LX
Channels128
Camera Resolution2.1MP 1080P
Frame Rate30fps
Throughput600 Mbps
Storage Capacity4-144TB
ProcessorIntel® i7®
Memory8GB
Network Ports1Gbps X2
Video OutputsVGA / HDMI X 2 / DP X 4
Operating SystemLinux® on SSD
RAID SupportRAID 5
Power SupplyRedundant
SKU  DW-BJER2U32T-LX
Manufacturer  Digital Watchdog
NDAACompliant
IP Channels  128 Channels
Harddrive Size  32TB
Protocols  Digital Watchdog Protocols, Onvif Protocols
Features  Alarm Notification by E-mail, Audio, Centralized E-map, H.264 Compression, HD Resolution, MJPEG Compression, MPEG-4 Compression, Redundant Power
Resolution    HD 1080p
Compression    MJPEG , MPEG4 , H.264
Operating temperature   10°C – 35°C (50°F – 95°F)
Dimensions  648mm L x 437mm W x 89mm H (25.5" L x 17.2" W x 3.5" H)
Power Consumption  1000W
Network1000 Mbps (2x) DUal NIC Card
Memory16GB (8x2 Dual Channel)
Redundant PowerYes
HD Resolution    Yes
Alarm Notification by E-mailYes
Centralized E-mapYes
H.264 CompressionYes
MJPEG CompressionYes
MPEG-4 CompressionYes
