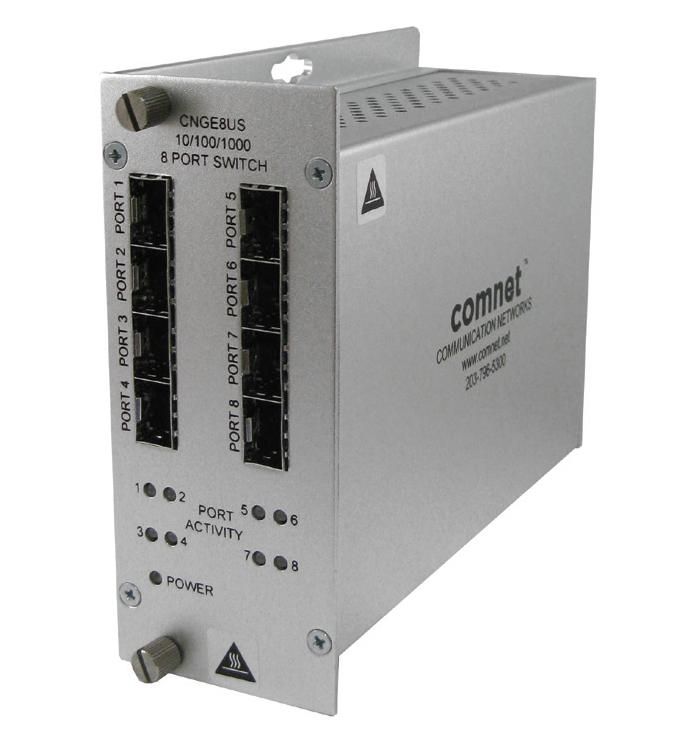

Comnet CNGE8US 8-Port Ethernet Unmanaged Switch

The ComNet™ CNGE8US Ethernet 8 port unmanaged switches are designed to transmit and receive 10/100/1000 Mbps data using small form factor pluggable modules. It is environmentally hardened to operate in demanding environments. LED indicators are provided for confirming equipment operating status. Plugand-play design ensures ease of installation requiring no optical adjustments. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

Features

• 10/100/1000 Mbps Ethernet
• 1000 BASE-FX optical port
• Optical port supports 1000 Mbps full duplex data
• Automatic MDI/MDI-X crossover
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
• No In-field optical adjustments required
• Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
• Power and Port status LED indicators
• IEEE 802.3 compliant
• Hot-swappable rack modules
• Interchangeable between stand-alone or rack mount use - ComFit
