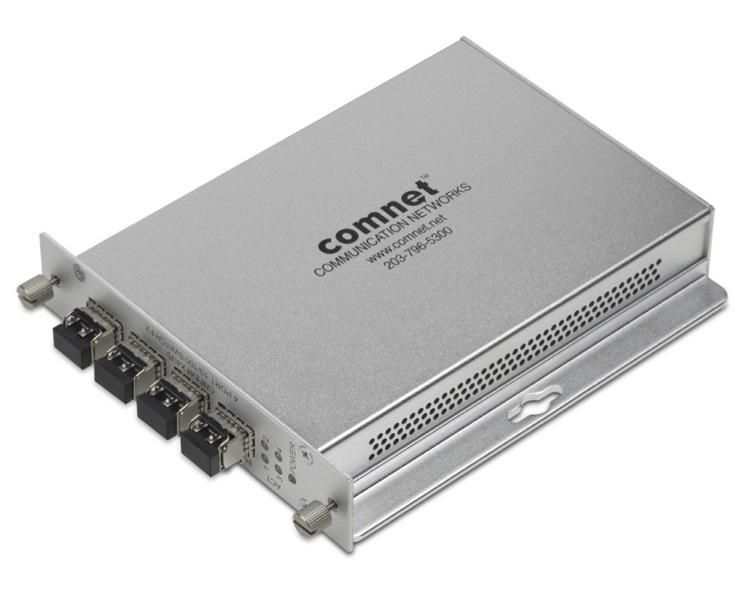

Comnet CNGE4US 4-Port Ethernet Unmanaged Switch

The ComNet™ CNGE4US Ethernet 4 port unmanaged switches are designed to transmit and receive 10/100/1000 Mbps data using small form factor pluggable modules. Both are environmentally hardened to operate in demanding environments. LED indicators are provided for confirming equipment operating status. Plug-and-play design ensures ease of installation requiring no optical adjustments. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

ComNet CNGE4US + Key Features

• 10/100/1000 Mbps Ethernet: Supports high-speed data transmission, enhancing network performance.
• Environmentally Hardened: Designed for unconditioned installations, ensuring reliability in harsh environments.
• Full Duplex Data: All ports support 1000 Mbps full duplex data, enabling simultaneous sending and receiving of data.
• Automatic MDI/MDI-X Crossover: Facilitates easy network connections without the need for crossover cables.
• Compliant with NEMA Standards: Meets environmental requirements for traffic signal control equipment, ensuring durability.
• No In-field Optical Adjustments: Simplifies installation and maintenance, saving time and effort.
• Voltage Transient Protection: Safeguards against power surges and voltage transients, enhancing system longevity.
• LED Status Indicators: Provides clear visual indications of power and port status for easy monitoring.
• IEEE 802.3 Compliant: Ensures compatibility with a wide range of network devices.
• Hot-swappable Rack Modules: Allows easy upgrades and replacements without downtime.
• ComFit Design: Enables interchangeable use between stand-alone or rack mount setups, offering flexibility in deployment.
