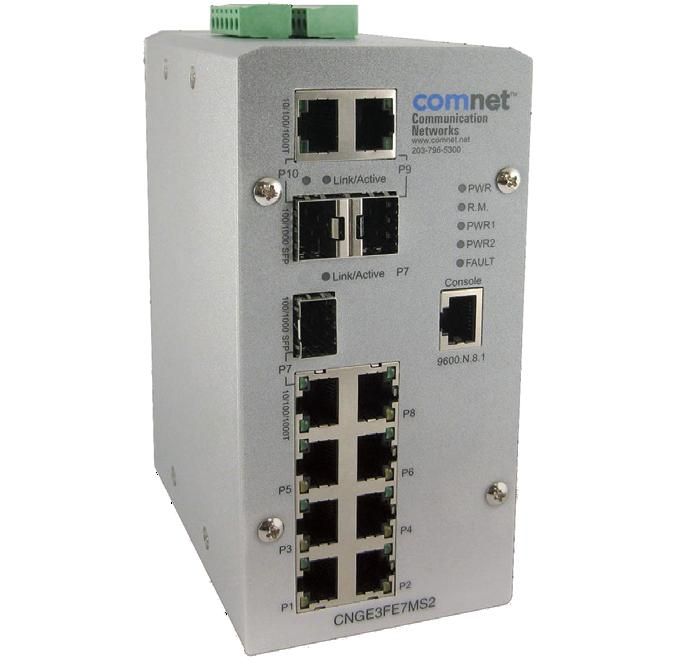

Comnet CNGE3FE7MS2 Hardened 3 Port 1000Mbps + 7 Port 100Mbps Managed Switch

The ComNet™ CNGE3FE7MS2 Managed Ethernet Switch is engineered for robust data transmission with (7) 10/100 BASE-TX ports and (3) 10/100/1000TX or 100/1000FX combo ports. This environmentally hardened switch excels in challenging out-of-plant and roadside environments, supporting various network architectures while providing high reliability and minimal installation complexity. With a variety of features including compliance with tough environmental standards and a flexible optical configuration, this switch is ideal for both conventional and optical transmission media.

ComNet CNGE3FE7MS2 Key Features

• Environmentally Hardened: Designed for tough conditions, it can be deployed in unconditioned environments, ensuring reliable operations regardless of external factors.
• Certified Compliance: Fully tested for adherence to environmental requirements of NEMA TS-1/TS-2 and CALTRANS, providing confidence in performance under extreme conditions.
• Hazardous Location Certified: Complies with EN60950-1 and UL Class 1, Division 2 standards, making it safe for use in hazardous locations.
• Wide Operating Temperature Range: Functions from -40? C to +75? C, ensuring performance in extreme temperatures and eliminating operation concerns.
• Versatile Media Compatibility: Supports both 10/100 BASE-TX and 100/1000 BASE-FX, providing flexibility in media selection.
• Flexible Optics Configuration: Offers configuration through SFP modules to meet specific network needs.
• Mounting Options: Can be DIN rail or wall-mounted, providing versatile installation possibilities.
• Redundant Power Supply: Compatible with redundant power supplies, enhancing reliability by reducing risk of failure.
• Comprehensive Network Management: Fully configurable via web-based or SNMP management for easy operation and monitoring.
• Advanced IGMP Support: Features IGMP Snooping V1/V2 and Query V1/V2 for effective multicast filtering.
• Port-Based VLAN Support: Implements IEEE 802.1Q VLAN capabilities to optimize network traffic.
• Rapid Spanning Tree Protocol: IEEE 802.1W compliant for improved network resilience and efficiency.
• Included Power Supply: Comes with a power supply, making it ready for immediate use.

ComNet CNGE3FE7MS2 Detailed Specifications
