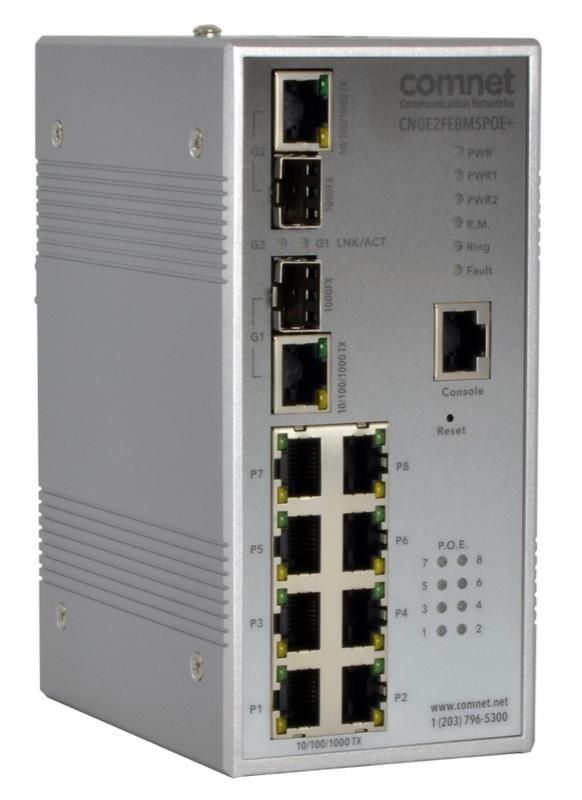

Comnet CNGE2FE8MSPOE+ 8 Port Hardened Managed Ethernet Switch

The ComNet™ CNGE2FE8MSPOE+ is a hardened Managed Ethernet Switch. It provides IEEE 802.3at (30W) PoE+ to eight 10/100BASE-T(X) and has twogigabit combination SFP or RJ-45 ports. Up to 240 watts of PoE or PoE+ power is available for distribution across all 8 TX ports. All SFP ports utilize ComNet SFP* modules for fiber and connector type and distance. The CNGE2FE8MSPOE+ is a redundant switch offering multiple Ethernet redundancy protocols, C-Ring (recovery time <10ms over 250 units of connection), ComRing, and MSTP/RSTP/STP (IEEE 802.1 s/w/D). This redundancy feature protects your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. Network management is supported by eConsole, a powerful, easy-to-use Windows-based utility, as well as Web-based telnet, and Console (CLI) configurations. This environmentally hardened switch is designed for direct deployment in difficult out-of-plant or roadside operating environments.

Features

• 5.6 Gbps Switching bandwidth: 2 Combo Gigabit Ports 8 10/100T(X) Ports
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic & Port Trunking for ease of bandwidth management
• STP/RSTP/MSTP supported
• Easy implementation of point-to-point, linear add-drop, dropand-repeat, star, or true self-healing ring and mesh network system architectures
• Operating Temperature: -40˚ to +75˚C (-40˚ to +167˚F). Functional to +85˚C (185ºF)
• Exclusive ComNet C-Ring fast recovery technology protects mission-critical applications from network interruptions or temporary malfunctions. Recovery time <10ms, with > 250 switches within the ring
• Redundant DC inputs for uninterrupted operation in the event of a loss of operating power or a power supply failure
• Centralized management via Windows utility, eConsole, configurable via browser, or byTelnet and console (CLI) ports
• Supports LLDP (Link Layer Discovery Protocol)
• Event notification through Syslog, E-mail, SNMP trap, and Relay Output
• Port lock to prevent access from unauthorized MAC address
• SNMP v1/v2c/v3 for secure network management
• PTP Client (Precision Time Protocol) for clock synchronization
• C-RSTP supports network applications with complex topology
• Rigid aluminum housing design provides for DIN-Rail or wall mounting
