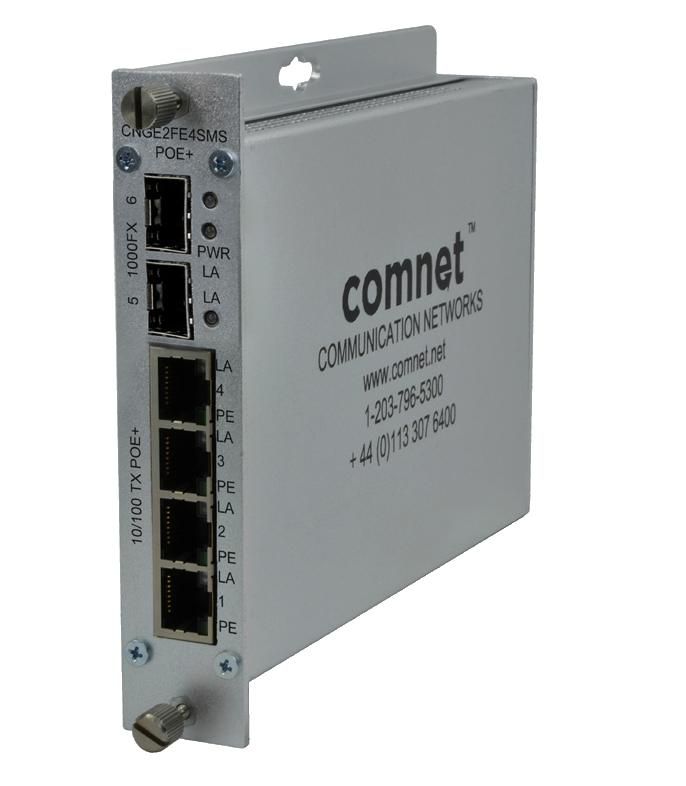

Comnet CNGE2FE4SMSPoE 6 Port Self-Managed Ethernet Switch, PoE

SKU
CNGE2FE4SMSPoE
Comnet CNGE2FE4SMSPoE 6 Port Self-Managed Ethernet Switch, PoE CNGE2FE4SMSPoE by Comnet
Comnet CNGE2FE4SMSPoE 6 Port Self-Managed Ethernet Switch, PoE CNGE2FE4SMSPoE by Comnet
Model No
CNGE2FE4SMSPoE
$1,040.63
Qty:
Product Highlights
    • No Programming Required
    • 10/100/1000 Mbps Ethernet
    • 10/100 BASE-T/TX electrical ports
    • 1000 BASE-FX SFP ports for Gigabit operation
    • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data

The ComNet™ CNGE2FE4SMSPoE is a six-port self-managed switch with uplink management functionality and provides 4 copper ports operating at 10/100 Mbps and two Gbps optical SFP* ports. It is designed to combine four electrical ports and one Gbps SFP port into one of two optical SFP ports. The CNGE2FE4SMSPoE SFP ports forwards this data to the next network device or can be configured for drop and insert operation. The CNGE2FE4SMSPoE uses ComNet SFPs for connector and distance options. There is no programming required to use this product. The ComNet CNGE2FE4SMSPoE comes pre-programmed, preventing network video flooding with dip switch selection of fiber ports as uplink or as an unmanaged switch. Ports 1 to 4 can supply up to thirty (30) watts of power (“Power over Ethernet”) per port based on the IEEE 802.3at standard. An optional High Output (HO) version is also available that can supply up to thirty (30) watts of PoE from ports 1 and 2 and up to sixty (60) watts of PoE from ports 3 and 4.

Features

  • No Programming Required
  • 10/100/1000 Mbps Ethernet
  • 10/100 BASE-T/TX electrical ports
  • 1000 BASE-FX SFP ports for Gigabit operation
  • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
  • Optical port supports 1000 Mbps full duplex data
  • IEEE802.3at Power over Ethernet (PoE+)†
  • Up to 30 W PoE+ on Ports 1 and 2† Up to 60 W PoE+ on Ports 3 and 4†
  • Automatic MDI/MDI-X crossover
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, highline/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
  • No in-field optical adjustments required
  • Power, Activity and Port PoE status LED indicators confirm operating status of this device
  • Hot-swappable rack modules
  • IEEE 802.3 compliant
SKU  CNGE2FE4SMSPoE
Manufacturer  Comnet
# of Ports  6 PORT
Data Rate  10/100/1000 Mbps
Management  Managed
Form Factor  Rackmount, Surface
PoE  Yes
Features  Rugged / Hardened
