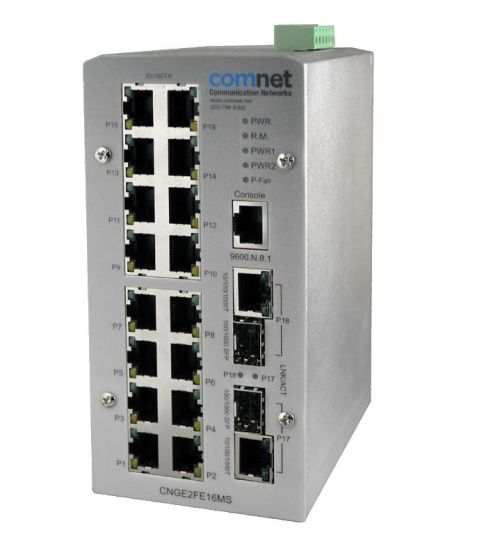

Comnet CNGE2FE16MS 16-Port Hardened Managed Switch

The ComNet™ CNGE2FE16MS Managed Ethernet Switch provides robust transmission of (16) 10/100 BASE-TX and (2) 10/100/1000TX or 100/1000FX combo ports of gigabit Ethernet data. Unlike most Ethernet switches, these environmentally hardened units are designed for direct deployment in difficult out-of-plant or roadside operating environments, and are available for use with either conventional CAT-5e copper or optical transmission media. Diverse media selection allows for easy implementation of point-to-point, linear add-drop, dropand-repeat, star, or true self-healing ring and mesh network system architectures. 2 ports are 10/100/1000 configurable for copper or fiber media for use with multimode or single mode optical fiber, selected by optional SFP* modules. These network managed layer 2 switches are optically (100/1000 BASE-FX) and electrically compatible with any IEEE 802.3 compliant Ethernet devices. Plug-andplay design ensures ease of installation, and no electrical or optical adjustments are ever required.

Features

• 16 × 10/100BASE-T(X) Ports
• 2 × 10/100/1000TX or 100/1000FX Gigabit combo ports
• Environmentally hardened for direct deployment in difficult unconditioned out-of-plant and roadside installations
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
• Compliant with EN60950-1 and UL Class 1, Division 2, Groups A, B, C and D for Hazardous Locations
• Extended ambient operating temperature range: -40˚ C to +75˚ C (Functional to 85ºC)
• 10/100 BASE-TX and 100/1000 BASE-FX compatible
• Electrical ports support 10/100/1000 Mbps Ethernet IEEE802.3 protocol
• Flexible optics configuration via SFP plug-in modules
• DIN rail or wall-mountable mounting
• Redundant power supply compatibility reduces possibility of single-point-of-failure for highest possible reliability
• Fully configurable through web-based or SNMP network management
• IGMP Snooping V1/V2 for multicast filtering and IGMP Query V1/V2 Port based VLAN (IEEE 802.1Q)
• Rapid Spanning Tree protocol (IEEE 802.1W)
• Automatic MDI/MDI-X crossover
• LED indicators provided for confirming equipment operating status
• Rigid aluminum housing design provides for DIN-Rail or wall mounting
• Power Supply Included
