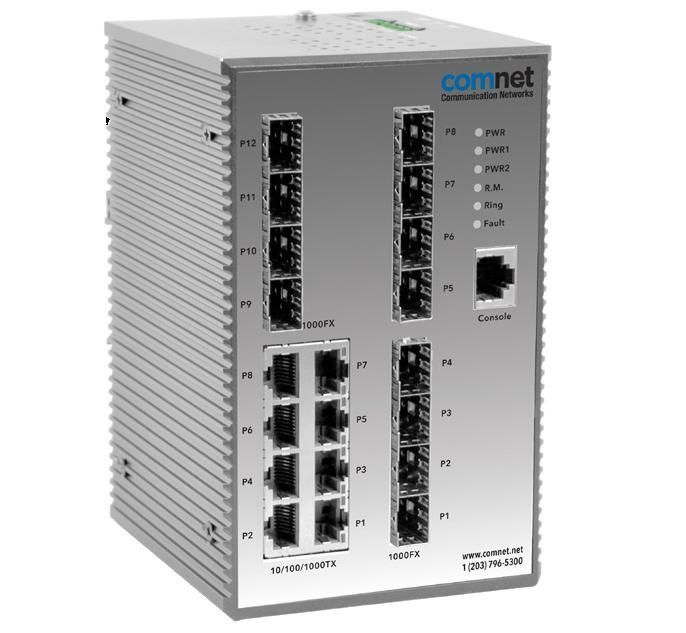

Comnet CNGE20MS 20-Port Managed Gigabit Switch

The ComNet™ CNGE20MS is a 20-port Managed Ethernet Switch designed to reliably operate in harsh, environmentally challenging applications. It features eight 10/100/1000BASE-TX and twelve 100/1000BASE-FX SFP* ports. The SFP ports are 100/1000Mbps configurable for either multimode or single-mode optical fiber by the use of optional ComNet SFPs. Exclusive to ComNet is C-Ring, a feature that protects the network from interruptions or temporary malfunctions with fast recovery technology. Legacy ring allows the switch to be used in an existing ring of ComNet X-Ring enabled switches. Redundant DC inputs are included for uninterrupted operation in the event of a power supply failure. These network-managed layer 2 switches are optically and electrically compatible with any IEEE802.3 compliant Ethernet device.

Features

• Twelve (12) SFP ports support 100/1000 Mbps SFP modules
• Eight (8) electrical ports support 10/100/1000 Mbps Ethernet IEEE802.3 protocol
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Supports Jumbo Frame up to 9.6K Bytes for streaming video applications
• MSTP/RSTP/STP
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
• Operating Temperature: -40˚ C to +75˚ C (-40˚ F to +167˚ F). Functional to +85˚ C (185º F)
• Fastest Redundant Ethernet Ring: ComNet C-Ring. Recovery time <30ms, with > 250 switches within the ring
• IP-Based Bandwidth Management & Application-Based QoS Management
• Device-Binding Security Function & DOS/DDS Auto-Prevention
• SNMP v1/v2c/v3, RMON & IEEE 802.1Q VLAN for secure network management
• Supports IPV6 new Internet protocol version
• Supports ACL, IEEE 802.1x, & TACACS+ for user security authentication
• Provides HTTPS/SSH protocol enhances network security
• Supports LLDP (Link Layer Discovery Protocol)
• Multiple Notifications for warning of unexpected events, including relay fault alarm
• Port lock to prevent access from unauthorized MAC address
• Windows utility, eConsole, supports centralized management, and is web-based configurable, or by Telnet and console (CLI) ports
• Rigid aluminum housing design provides for DIN-Rail or wall mounting
