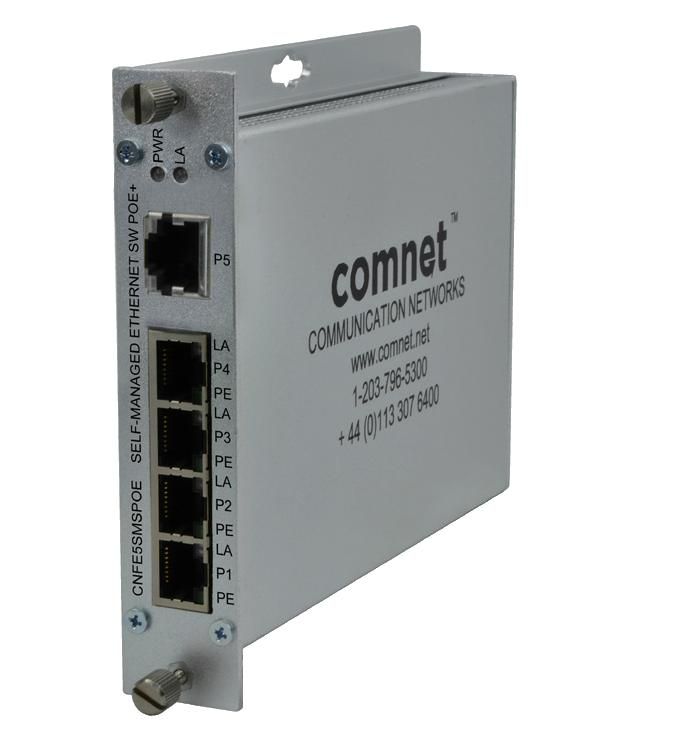

Comnet CNFE5SMSPOE 5-Port Ethernet Self-Managed Switch (PoE+)

The ComNet™ CNFE5SMSPOE is a five-port self-managed Ethernet switch with uplink management functionality. It provides 5 ports operating at 10/100Mbps and is designed to combine Ethernet data from the four electrical ports into a fifth electrical port and forward that data to the next network device. There is no programming required to use this product. The ComNet CNFE5SMSPOE comes pre-programmed, preventing network video flooding with a switch selection that allows the switch to be used as an uplink or as an unmanaged switch. Ports 1–4 can supply up to thirty watts of Power over Ethernet (PoE) power and incorporate PoE+ features based on the IEEE 802.3at standard. It is “Plug-and-Play” easy to use.

Features

• No Programming Required
• 10/100 Mbps Ethernet
• 5 10/100 BASE-T/TX electrical ports
• Ports 1–4 support PoE+
• Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
• Pre-programmed Port for uplink to other Ethernet devices
• Automatic MDI/MDI-X crossover
• Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and CALTRANS Traffic Signal Control Equipment Specifications
• Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
• Power and Activity status LED indicators
• Hot-swappable rack modules
• Interchangeable between stand-alone or rack mount use - ComFit
• IEEE 802.3 compliant
• LED array displays unit operational status along with received signal strength
