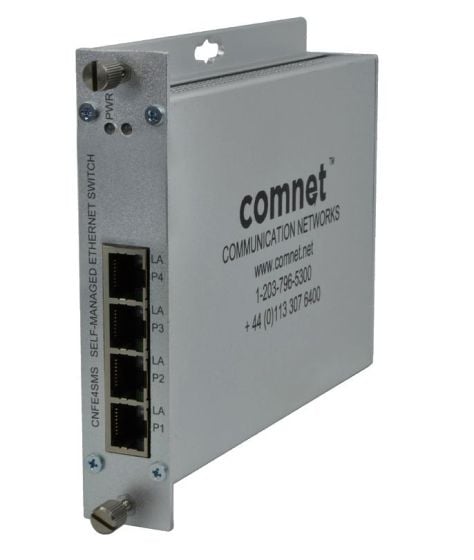

Comnet CNFE4SMS 4-Port Ethernet Self-Managed Switch, 4TX (Copper)

SKU
CNFE4SMS
Comnet CNFE4SMS 4-Port Ethernet Self-Managed Switch, 4TX (Copper) CNFE4SMS by Comnet
Comnet CNFE4SMS 4-Port Ethernet Self-Managed Switch, 4TX (Copper) CNFE4SMS by Comnet
Model No
CNFE4SMS
$503.39
Qty:
Product Highlights
    • No Programming Required
    • 10/100 Mbps Ethernet
    • 4 × 10/100 BASE-T(X) electrical ports
    • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
    • Pre-programmed Port for uplink

The ComNet™ CNFE4SMS is a four-port switch with uplink management functionality and provides 4 Ethernet ports operating at 10/100 Mbps and is designed to combine three electrical ports into an electrical port that forwards this data to the next network device, There is no programming required to use this product. The ComNet CNFE4SMS comes pre-programmed, preventing network video flooding with DIP switch selection of port 4 as uplink or as an unmanaged switch. It is “Plug-and-Play”. LED indicators confirm the operating status of this device. The ComNet CNFE4SMS may be either wall mounted, rack mounted (“ComFit” packaging) or DIN-rail mounted with the use of the ComNet DIN BKT1 adapter.

Features

  • No Programming Required
  • 10/100 Mbps Ethernet
  • 4 × 10/100 BASE-T(X) electrical ports
  • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
  • Pre-programmed Port for uplink
  • Automatic MDI/MDI-X crossover
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
  • No in-field optical adjustments required
  • Power and Activity status LED indicators
  • Hot-swappable rack modules
  • Interchangeable between stand-alone or rack mount use - ComFit
  • IEEE 802.3 compliant
SKU  CNFE4SMS
Manufacturer  Comnet
# of Ports  4 PORT
Data Rate  10/100 Mbps
Management  Managed
Form Factor  Rackmount, Surface
PoE  No
Features  Rugged / Hardened
