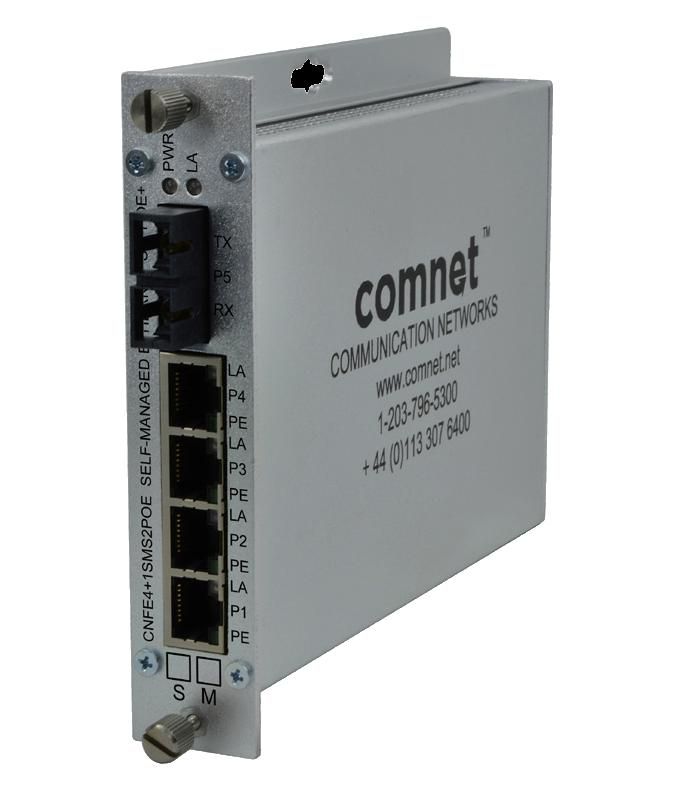

Comnet CNFE4+1SMSM2POE 5-Port Self-Managed Switch (MM)

SKU
CNFE4+1SMSM2POE
Comnet CNFE4+1SMSM2POE 5-Port Self-Managed Switch (MM) CNFE4+1SMSM2POE by Comnet
Comnet CNFE4+1SMSM2POE 5-Port Self-Managed Switch (MM) CNFE4+1SMSM2POE by Comnet
Model No
CNFE4+1SMSM2POE
$786.02
Qty:
Product Highlights
    • No Programming Required
    • 10/100 Mbps Ethernet
    • 4 × 10/100 BASE-T/TX electrical ports supporting PoE+
    • 100 BASE-FX optical port
    • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data

The ComNet™ CNFE4+1SMSM2POE is a five-port Ethernet switch with uplink management functionality and provides 4 copper ports operating at 10/100 Mbps and is designed to combine four electrical ports into a single optical port that forwards this data to the next network device. The fiber interface has an option of SC or ST connector type. There is no programming required to use this product. The CNFE4+1SMSM2POE comes pre-programmed, preventing network video flooding with dip switch selection of fiber port as uplink or as an unmanaged switch. Ports 1–4 can supply up to thirty watts of power (“Power over Ethernet”) and incorporate PoE+ features based on the IEEE 802.3at standard.It is “Plug-and-Play”.

Features

  • No Programming Required
  • 10/100 Mbps Ethernet
  • 4 × 10/100 BASE-T/TX electrical ports supporting PoE+
  • 100 BASE-FX optical port
  • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data
  • Optical port supports 100 Mbps full duplex data
  • Pre-programmed Port for uplink
  • Automatic MDI/MDI-X crossover
  • Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and CALTRANS Traffic Signal Control Equipment Specifications
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
  • No in-field optical adjustments required
  • Power and Activity status LED indicators
  • Hot-swappable rack modules
  • Interchangeable between stand-alone or rack mount use - ComFit
  • IEEE 802.3 compliant
SKU  CNFE4+1SMSM2POE
Manufacturer  Comnet
# of Ports  5 PORT
Data Rate  10/100 Mbps
Management  Managed
Form Factor  Rackmount, Surface
PoE  Yes
Features  Rugged / Hardened
