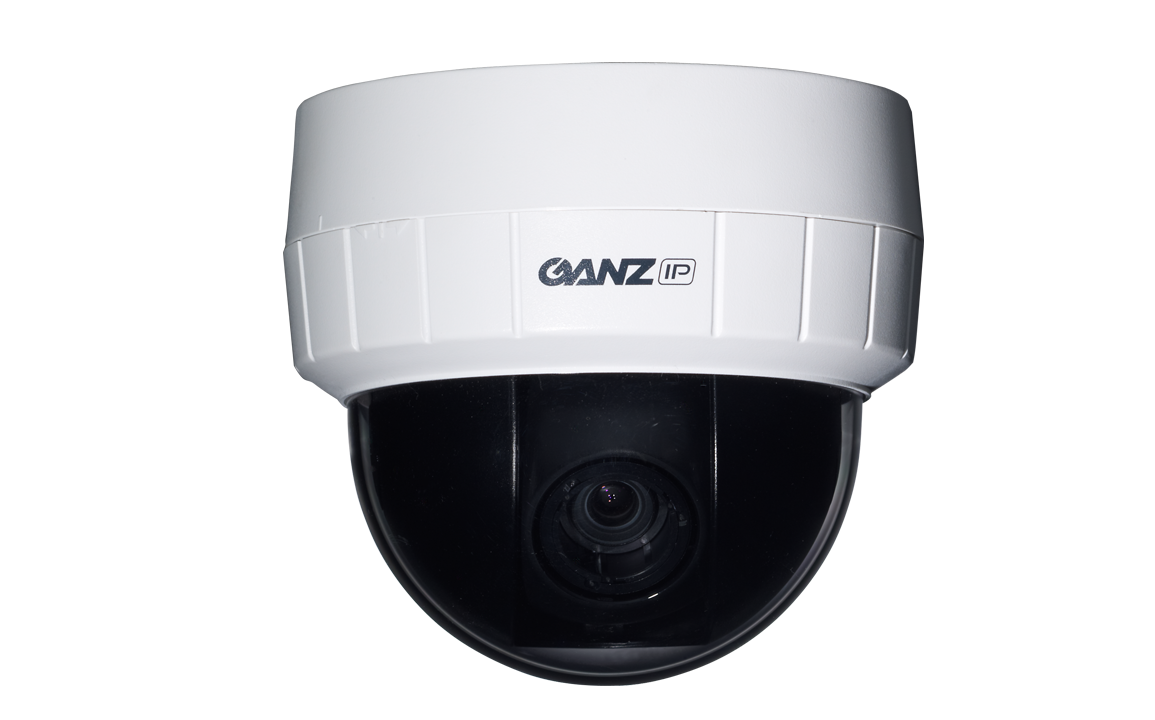

Ganz ZN-D2MTP PixelPro 1080p HD Day/Night Network Dome Camera, 3-9mm
SKU
ZN-D2MTP
Model No
ZN-D2MTP
$1,568.72
Product Highlights
- 1080p HD Resolution
- 1/2.8″ Progressive Scan CMOS
- 3-9mm or 3.3-12mm varifocal lens
- Improved picture quality
- Dual streaming video
Speak to an expert
Introducing the Ganz ZN-D2MTP PixelPro 1080p HD Day/Night Network Dome Camera, 3-9mm, the ultimate solution for reliable surveillance with exceptional image clarity. This high-definition camera features advanced technology to enhance performance during day and night conditions. Its versatile design allows for easy installation, making it ideal for various monitoring applications.
Ganz ZN-D2MTP PixelPro Camera Features
- 1080p HD Resolution: Provides clear and detailed video quality for enhanced surveillance clarity.
- 1/2.8” Progressive Scan CMOS: Delivers improved image performance and accuracy in capturing motion.
- Varifocal Lens (3-9mm or 3.3-12mm): Offers flexibility in focal lengths for customized field-of-view adjustments.
- Improved Picture Quality: Ensures high-resolution imaging for effective monitoring and identification.
- ProSet System: Allows remote zoom and focus adjustments via PC, simplifying setup and operational efficiency.
- Improved Low-Light Performance: Equipped to provide quality video in challenging lighting conditions, ensuring reliable operation 24/7.
- Dual Streaming Video: Enables simultaneous video streams for various applications and better bandwidth management.
- True Day/Night Performance: Automatic switching between day and night modes ensures optimal image quality regardless of lighting.
- 18 IR LEDs (IR Models): Enhances visibility in low-light environments for complete surveillance coverage around the clock.
- DPC (Defective Pixel Correction): Allows for improved image integrity on select models, enhancing overall video quality.
- Triple Power Options: Flexible power supply choices (12VDC / 24VAC / PoE) for easier installation and setup.
- External Alarm I/O: Integrates with existing alarm systems for an added layer of security.
- Setup and Recording Software Included: Offers a complete package for monitoring and recording, providing user-friendly access to camera features.
- Multiple Mounting Options Available: Supports varied installation environments, accommodating different user needs.
Detailed Specifications for Ganz ZN-D2MTP Camera
| Video Resolution | 1080p HD |
| Sensor Type | 1/2.8” Progressive Scan CMOS |
| Lens Options | 3-9mm / 3.3-12mm Varifocal |
| IR LEDs | 18 IR LEDs for night vision |
| Power Supply | 12VDC / 24VAC / PoE |
| Weight | [Insert Weight] |
| Dimensions | [Insert Dimensions] |
| Mounting Type | Multiple options available |
| Software Included | Yes |
| Alarm I/O | External |
SKU  | ZN-D2MTP |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection Tracking, ONVIF |
| Manufacturer | Ganz |
| Connection Type | Wired |
Infrared Distance  | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-9mm |
| Mount Type | In-Ceiling, Pendant, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Dimensions (W x H) | 4.5” (H) x 4.9”Ø / 113mm (H) x 124.7mm Ø |
| Electronic Shutter | 1/4, 1/10, 1/12.5, 1/15, 1/20, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/240, 1/480, 1/960, 1/1024, 1/2000 sec |
| Image Device | 1/2.8" Progressive Scan CMOS |
| Image Size | 1/2.8" CMOS |
| Minimum Scene Illumination | 0.21 lux (F1.2, 50 IRE), 0 lux IR LED ON |
| Operating Temperature | 32ºF ~ 104ºF (0ºC ~ 40ºC) |
| Power Consumption | 12VDC - 630mA / Max 7.6W , 24VAC - 500mA / Max 7.5W , PoE - 140mA / Max 6.7W (IEEE 802.3af compliant) |
| Protocols | IPv4, HTTP, SMTP, UPnP, DNS, RTP, TCP, UDP, RTCP, DHCP, ARP, IGMP, IGMP, ICMP, NTP |
| Signal System | NTSC/PAL selectable |
| Video Output | BNC, RJ-45 |
| Zoom Ratio | 2 ~ 10x (client software) |
| Motion Detection Tracking | User set 4 ROI (Region of Interest), 10 Step Sensitivity |
| Automatic White Balance | ATW / MANUAL (Preset) |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| ONVIF | Yes |
