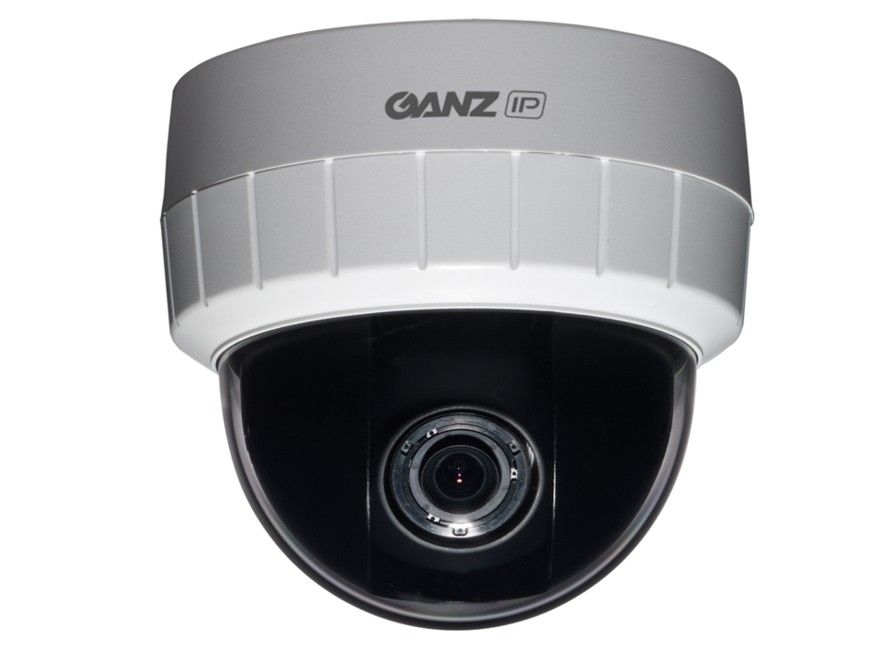

Ganz ZN-D2MAP 1080p Indoor True Day & Night, A/I 3.3-12mm
SKU
ZN-D2MAP
Model No
ZN-D2MAP
$504.00
Product Highlights
- Optimized for HD
- 1/2.5″ progressive scan CMOS
- 3.3-12mm computar Varifocal Lens
- ProSet Systems lets you zoom and focus directly from your PC
- Dual streaming video
Speak to an expert
The ZN-D2MAP from Ganz is a 1080p, indoor, true day & night camera with A/I capabilities featuring a 3.3-12mm lens. This innovative camera offers superior image quality, flexible installation, and extensive functionality, making it ideal for various surveillance applications.
Ganz ZN-D2MAP Camera Features
- Optimized for HD: Experience crisp, clear video quality that ensures every detail is captured for reliable monitoring.
- 1/2.5” Progressive Scan CMOS: Benefit from enhanced low-light performance and improved dynamic range for clear images both day and night.
- 3.3-12mm Computer Varifocal Lens: Adjust the focal length easily to suit your monitoring needs, providing flexibility in diverse environments.
- ProSet Systems: Allows zooming and focusing directly from your PC, simplifying setup and adjustments without the need for physical access to the camera.
- Dual Streaming Video: Stream video in two formats simultaneously, allowing for various resolutions and bitrates to accommodate different bandwidth requirements.
- True Day/Night Performance: Automatically switches between color and monochrome modes to provide clear imaging in all lighting conditions.
- Triple Power Options: Operate using 12VDC, 24VAC, or Power over Ethernet (PoE) for versatile installation options.
- Service Monitor Output: Easily connect to a monitor for real-time viewing and setup assistance.
- MicroSDHC Card Slot: Support for on-board recording provides a convenient backup solution in case of network issues.
- External Alarm I/O: Integrate with other security systems for enhanced monitoring capabilities.
- Setup and Recording Software Included: User-friendly software makes installation and operation straightforward right out of the box.
- Bi-directional Audio Support: Communicate effectively with two-way audio, perfect for interactive surveillance setups.
- Multiple Mounting Options: Adapt the camera’s positioning easily to fit various installation scenarios.
Detailed Specifications for Ganz ZN-D2MAP
| Camera Resolution | 1080p |
| Lens Type | Varifocal 3.3-12mm |
| Image Sensor | 1/2.5” Progressive Scan CMOS |
| Power Supply | 12VDC, 24VAC, PoE |
| Streaming Capability | Dual streaming |
| Storage Option | MicroSDHC card slot |
| Audio Type | Bi-directional audio |
| Additional Features | True Day/Night performance, ProSet systems, external alarm I/O |
SKU  | ZN-D2MAP |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night |
| Manufacturer | Ganz |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2.1 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.3-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264 |
| Durability | Indoor |
| Voltage | 12vDC, 24vAC |
| Automatic Gain Control (AGC) | Yes |
| Dimensions (W x H) | 4.5” x 4.9” |
| Electronic Shutter | 1/4, 1/10, 1/12.5, 1/15, 1/20, 1/25, 1/30, 1/50, 1/60, 1/100, 1/120, 1/240, 1/480, 1/960, 1/1024, 1/2000 sec |
| Image Device | 1/2.5" Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.98 lux B/W: 0.09 lux (Slow Shutter ON ) |
| Operating Temperature | 14ºF ~ 122ºF (-10ºC ~ 50ºC) |
| Protocols | IPv4/6, HTTP, SMTP, UPnP, DNS, Dynamic DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP |
| Signal System | NTSC/PAL selectable |
| Video Output | BNC , RJ-45 |
| Motion Detection Tracking | Userset 5 ROI (Region of Interest), 10 Step Sensitivity |
| Automatic White Balance | ATW / MANUAL (Preset) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
