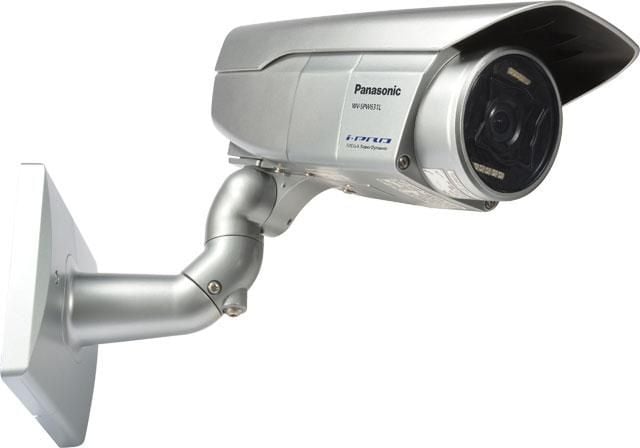

Panasonic WV-SPW631LT 2 Megapixel i-PRO 1080p Smart HD IR Network Box Camera
SKU
WVSPW631LT
Model No
WV-SPW631LT
$1,022.42
Product Highlights
- 1080p Full HD / 720p HD images up to 60 fps
- Approximate 1/2.8", high sensitivity MOS image sensor
- Maximum Screen Size is 2,048 x 1,536 @ 30fps, H.264
- Multi process NR & 3D-DNR ensures noise reduction in various conditions
- IR LED equipped : The equipped infrared LED makes it possible to take pictures at zero lx
Speak to an expert
The Panasonic WV-SPW631LT 2 Megapixel i-PRO 1080p Smart HD IR Network Box Camera is a high-performance security solution packed with innovative features to ensure superior surveillance in various environments. With 1080p Full HD and advanced image processing technologies, including Enhanced Super Dynamic range and high sensitivity MOS sensor, this camera provides exceptional clarity and reliability at any time of day. Its robust design, complemented by cutting-edge functionalities like IR capabilities and intelligent analytics, makes it an ideal choice for advanced security applications.
Panasonic WV-SPW631LT Camera Features
- 1080p Full HD / 720p HD images: Capture high-quality images at up to 60 fps for smooth video playback.
- High sensitivity MOS image sensor: Approximate 1/2.8" sensor improves performance in low-light conditions.
- Multiple streaming options: Supports maximum of 4 H.264 streams and JPEG streams for real-time monitoring and recording.
- Enhanced Dynamic Range: 133 dB of dynamic range ensures better detail in bright and dark areas.
- Multi-process noise reduction: 3D-DNR technology minimizes noise in various environmental conditions.
- Infrared LED capability: Enables clear imaging at 0 lx, providing around-the-clock surveillance.
- High sensitivity with Day & Night function: Achieve clear images in color at 0.06 lx and in black & white at 0.02 lx.
- Motorized Zoom: 9-22mm lens with Auto Back Focus simplifies the installation process and allows for precise adjustments.
- VIQS technology: Retain high image quality in eight designated areas, potentially reducing file size.
- Fog compensation and Super Chroma Compensation: Enhance visibility in challenging weather conditions while maintaining color accuracy.
- Privacy Masks: Protect up to 8 areas from surveillance, ensuring compliance with privacy regulations.
- Full duplex audio: Allows clear communication between the camera location and the monitoring station.
- Double SD memory card slots: Enable manual and alarm recording capacity with backup functionality.
- ONVIF compliance: Ensures interoperability with a wide range of security devices.
- IP66 rated: Offers reliable protection against water and dust ingress for outdoor installations.
Panasonic WV-SPW631LT Detailed Camera Specifications
| Image Sensor | Approx. 1/2.8" High Sensitivity MOS |
| Max Resolution | 2,048 x 1,536 @ 30fps (H.264) |
| Dynamic Range | 133 dB (Enhanced Super Dynamic) |
| Video Compression | H.264 (High Profile), JPEG |
| Streaming Capacity | Max. 4 H.264 streams |
| Low Light Performance | 0.06 lx (Color), 0.02 lx (B/W) |
| Lens | 9-22mm Motorized Zoom with Auto Back Focus |
| Privacy Zones | Up to 8 programmable zones |
| Audio Support | Full duplex communication capability |
| Protection Rating | IP66 rated (water and dust resistant) |
| Power Supply | IEEE 802.3af compliant PoE |
| Protocols Supported | IPv4, IPv6, SSL, DDNS |
| Card Slots | Double SDXC/SDHC/SD for recording |
| Dimensions | Approx. 129.5mm x 76.2mm x 129.5mm |
| Weight | Approx. 650g (without lens) |
SKU  | WVSPW631LT |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 9-22mm |
| Mount Type | Ceiling, Wall |
| Compression Method | JPEG |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | On (Low) / On(Mid), On(High) / Off |
| Dimensions (W x H) | 94 mm (W) x 89 mm (H) x 226 mm (L) {3-3/4 inches (W) x 3-1/2 inches (H) x 8-7/8 inches (L)} |
| Electronic Shutter | [2 mega pixel [16 : 9] (60 fps mode) / 1.3 mega pixel [16 : 9] (60 fps mode)], OFF(1/60), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000,1/10000, Other than [2 mega pixel [16 : 9](60 fps mode)/ 1.3 mega pixel [16 : 9](60 fps mode)], OFF(1/30), 3/100, |
| Image Device | Approx. 1/2.8 type MOS image sensor, Built-in primary color filter |
| Image Pixels-Effective | Approx. 2.4 mega pixels |
| Minimum Scene Illumination | Color : 0.06 lx, BW: 0.02 lx (F1.6, Maximum shutter : Max. 1/30s, Gain : On(High)), BW : 0 lx (F1.6, Maximum shutter : Off(1/30 s), Gain : High, when the IR LED is lit), Color : 0.004 lx, BW : 0.002 lx (F1.6, Maximum shutter : Max. 16/30s, Gain : On(High) |
| Operating Humidity | 10 ~ 90 % (no condensation) |
| Operating Temperature | –40 °C ~ +50 °C (–40 °F ~ 122 °F) |
| Power Consumption | When IR LED is On, DC power supply : 12 V DC / 1080 mA / Approx. 12.9 W, PoE Device : 48 V DC / 360 mA / Approx. 12.95 W* (Class 0 device) |
| Privacy Zone | Up to 8 zones |
| Protocols | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
| Scanning System | Progressive scan |
| Weatherproof | IP66 |
| Digital Noise Reduction | High / Low |
| Angle of View | [16 : 9 mode] Horizontal : 13.8 ° (TELE) ~ 33.5 ° (WIDE), Vertical : 7.7 ° (TELE) ~ 18.1 ° (WIDE), [4 : 3 mode] Horizontal : 11.5 ° (TELE) ~ 27.4 ° (WIDE), Vertical : 8.6 ° (TELE) ~ 20.1 ° (WIDE) |
| Motion Detection Tracking | 4 areas, Sensitivity : 15 steps, Detection size : 10 steps |
| Automatic White Balance | AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K) |
| IR Distance | 30m/98.43ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
