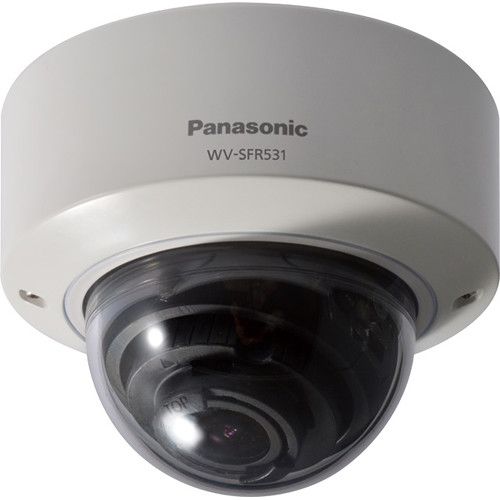

Panasonic WV-SFR531 Super Dynamic Full HD Indoor Vandal Resistant Dome Network Camera
SKU
WVSFR531
Model No
WV-SFR531
$598.95
Product Highlights
- 1080p Full HD images up to 60 fps*1
- Approximate 1/3 inches, high sensitivity MOS image sensor
- Super high resolution at Full HD/1,920 x 1,080 created by high sensitivity MOS image sensor
- Supports SSL, DDNS (viewnetcam, RFC2136)
- Vandal resistant mechanism for high reliability
Speak to an expert
The Panasonic WV-SFR531 Super Dynamic Full HD Indoor Vandal Resistant Dome Network Camera offers exceptional performance with Full HD 1080p resolution at up to 60 frames per second. Designed with high sensitivity and superior image processing capabilities, it ensures clear visuals even in low light conditions. Featuring intelligent Video Motion Detection technology, this camera enhances security with comprehensive monitoring and reduced false alerts, making it an ideal choice for both residential and commercial applications.
Panasonic WV-SFR531 Camera Features
- 1080p Full HD Resolution: Experience crystal-clear imaging at up to 60 fps for smooth video playback.
- High Sensitivity MOS Sensor: Achieves excellent low-light performance with sensitivity as low as 0.04 lux in color mode.
- Advanced Noise Reduction: Utilizes Multi-process Noise Reduction (MNR) for clearer images in various lighting conditions.
- Multi-Stream Capability: Supports up to 4 simultaneous H.264 (High Profile) streams for flexible monitoring and recording.
- Wide Dynamic Range: Delivers 133 dB dynamic range for enhanced image clarity in high-contrast scenes.
- Auto VIQS Function: Optimizes bandwidth by adjusting image quality based on movement detection in specified areas.
- Face Super Dynamic Technology: Ensures clear facial images, enhancing identification during monitoring.
- Privacy Masking: Masks up to 8 private areas, safeguarding sensitive locations from view.
- Bi-Directional Audio: Facilitates interactive audio communication between installed locations and monitoring stations.
- Vandal Resistant Design: Robust construction ensures durability and reliability in challenging environments.
Panasonic WV-SFR531 Detailed Specifications
| Resolution | Full HD 1920 x 1080 pixels |
| Frame Rate | Up to 60 fps |
| Image Sensor | 1/3-inch High Sensitivity MOS |
| Low Light Performance | 0.04 lux (Color), 0.01 lux (B/W) |
| Dynamic Range | 133 dB |
| Stream Types | Max 4 H.264, JPEG streams |
| Audio Functionality | Full duplex bi-directional audio |
| Privacy Masking Zones | Up to 8 areas |
| Network Interface | 10Base-T / 100Base-TX Ethernet |
| Power Supply | 24 V AC, PoE |
SKU  | WVSFR531 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-9.5mm |
| Mount Type | Ceiling, Wall |
| Compression Method | JPEG |
| Durability | Indoor, Vandal Resistant |
| Voltage | 12vDC, PoE |
| Automatic Gain Control (AGC) | On (Low, Mid, High) / Off |
| Dimensions (W x H) | ø129.5 mm x 102.5 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)}, Dome radius 41.5 mm {1-5/8 inches} |
| Electronic Shutter | [2 mega pixel [16:9](60 fps mode)], Off(1/60), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, Other than [2 mega pixel [16:9](60 fps mode)], Off(1/30), 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250,1/500, 1/1000, 1/2000, 1/4000, 1/10000 |
| Image Device | Approx. 1/3 type MOS image sensor |
| Minimum Scene Illumination | Color: 0.07 lx, BW: 0.01 lx (F1.6, Maximum shutter: Max. 1/30s, Gain: On(High)), Color: 0.005 lx, BW: 0.0007 lx (F1.6, Maximum shutter: Max. 16/30s, Gain: On(High)) |
| Operating Humidity | 10 to 90 % (no condensation) |
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Power Consumption | DC power supply: DC12 V / 450 mA / Approx. 5.4 W, PoE Device: DC48 V / 110 mA / Approx. 5.3 W (Class 2 device) |
| Privacy Zone | Up to 8 zones |
| Protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP |
| Scanning System | Progressive scan |
| Digital Noise Reduction | High / Low |
| Motion Detection Tracking | 4 areas, Sensitivity : 15 steps, Detection size : 10 steps |
| Automatic White Balance | AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
