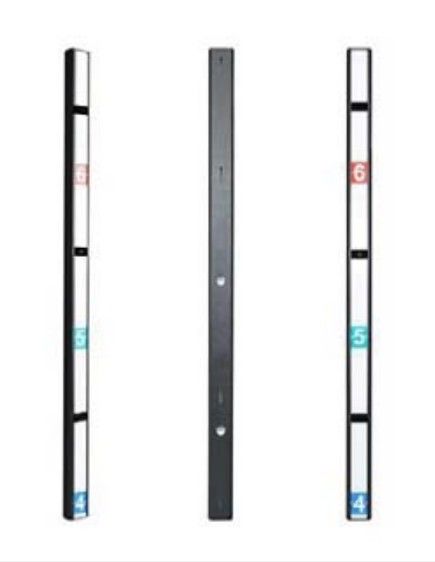

Weldex WDP-4602MXV 2 Megapixel Full HD IP Height Strip Camera POE with Fixed 2.9mm Lens

SKU
WDP-4602MXV
Model No
WDP-4602MXV
$376.74
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 2 Megapixel full HD IP height strip camera
  • Up to 30fps@1080p (H.264)
  • Progressive scan
  • Dual streaming (H.264 & MJPEG)
  • Power over ethernet

The WDP-4602MXV from Weldex is a 2 Megapixel Full HD IP Height Strip Camera POE with Fixed 2.9mm Lens, designed for high-quality surveillance in compact spaces. This camera offers exceptional image clarity and flexibility, making it ideal for a range of applications.

Weldex WDP-4602MXV Camera Features

  • 2 Megapixel Full HD: Captures crystal-clear images at 1080p resolution, ensuring high-quality surveillance footage.
  • 30fps@1080p (H.264): Provides smooth and clear video playback, allowing for effective monitoring and analysis.
  • Progressive Scan: Enhances image quality by reducing motion blur, preserving detail even in fast-moving scenes.
  • Dual Streaming: Supports H.264 and MJPEG compression, offering flexibility in streaming quality and bandwidth usage.
  • Power over Ethernet (POE): Allows for easier installation with fewer cables required, simplifying the setup process.
  • Covert Design: Concealed appearance for discreet surveillance, making it suitable for sensitive environments.
  • ONVIF Profile S Supported: Ensures compatibility with a wide range of network video products, enhancing integration capabilities.
  • 8” Miniature Height Strip: Compact design allows for installation in tight spaces without sacrificing performance.

Weldex WDP-4602MXV Detailed Specifications

Camera TypeIP Height Strip Camera
Resolution2 Megapixel Full HD (1080p)
Frame RateUp to 30fps
Lens TypeFixed 2.9mm Lens
Video CompressionH.264 & MJPEG
Power SupplyPower over Ethernet (POE)
DesignCovert Miniature
ONVIF SupportProfile S
SKU  WDP-4602MXV
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Wide Dynamic Range
Manufacturer  Weldex
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    2.9mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Indoor
Voltage  9-28vDC, PoE
Automatic Gain Control (AGC)    Low / Middle / High
Electronic Shutter    Auto / Flx;NTSC: 1/30 ~ 1/50,000sec PAL: 1/25 ~ 1/50,000sec
Image Device    SONY IMX 122 1/3” 2.1Megapixel CMOS
Minimum Scene Illumination  1.0 Lux (color), 0.5 Lux (BW), 0.02 (sens-up x60)
Operating Humidity    10 ~90 RH, non condensing
Operating Temperature    -10°C ~ +60°C
Protocols  IPv4, IPv6 (Coming Soon), TCP / IP, HTTP, HTTPS, UPnP, RTP / RTSP, SMTP, FTP, DHCP, NTP, DNS, DDNS, QoS (Coming Soon), SNMP
S/N Ratio  More than 50dB
Digital Noise Reduction    2DNR / 3DNR / Smart NR
Motion Detection Tracking    On / Off (12 Zone Selectable)
Back Light Compensation  BLC / HLC / OFF
Automatic White Balance    AWB / manual / indoor / outdoor
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
