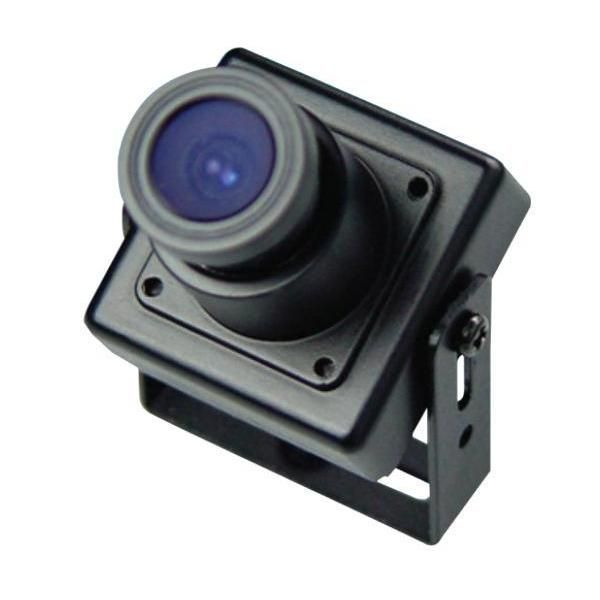

Weldex WDH-2500BS 1/3" B&W Ultra Mini Covert Camera with Fixed 3.6mm Lens

SKU
WDH-2500BS
Model No
WDH-2500BS
$50.70
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Ultra compact miniature camera
  • Extremely low power consumption (B&W: 80mA)
  • 0.01Lux at F1.2 (B&W) minimum illumination
  • 620 TV lines (B&W) of resolution
  • Metal housing with mounting bracket, RCA connector & power cord

The WDH-2500BS from Weldex is a 1/3" B&W Ultra Mini Covert Camera with Fixed 3.6mm Lens, designed for discreet surveillance with exceptional image clarity and low light performance.

Weldex WDH-2500BS Camera Features

  • Ultra compact design: Perfect for covert operations where space is limited, allowing for discreet placement in various environments.
  • Extremely low power consumption: With only 80mA required, this camera is energy-efficient, making it ideal for long-term surveillance without excessive energy costs.
  • Superior low-light sensitivity: Achieving 0.01Lux at F1.2 ensures clear image capture even in minimal lighting conditions, enhancing surveillance capability around the clock.
  • High resolution: Offering 620 TV lines of resolution in black and white, the camera delivers sharp, detailed footage, essential for identification purposes.
  • Durable construction: Metal housing comes with a mounting bracket, RCA connector, and power cord, ensuring longevity and ease of installation.

Weldex WDH-2500BS Detailed Camera Specifications

Camera Type1/3" B&W Ultra Mini Covert Camera
LensFixed 3.6mm Lens
Power Consumption80mA
Minimum Illumination0.01Lux at F1.2
Resolution620 TV lines (B&W)
Housing MaterialMetal
Included AccessoriesMounting bracket, RCA connector, power cord
SKU  WDH-2500BS
Features  Auto Gain Control
Manufacturer  Weldex
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    3.6mm, 5mm
Infrared Distance    Non Infrared
Durability    Indoor
Mount Type  Ceiling, Wall
Voltage  12vDC
Image Device    1/3" CCD area sensor
Image Pixels-Effective512(H)x494(V)
Minimum Scene Illumination  0.01 Lux at F1.2 (B&W)
Operating Humidity    RH 95 % max
Operating Temperature    -4°F ~ 158°F (-20°C ~ + 70°C)
Dimensions (W x H)  25mm(L) x 25mm(W) x 30mm(D)
Power Consumption  80mA
S/N Ratio  45dB
Scanning System    2:1 interlaced
Video Output    1.0-1.1 Vp-p 75ohm composite signal
Auto Gain Control    Yes
