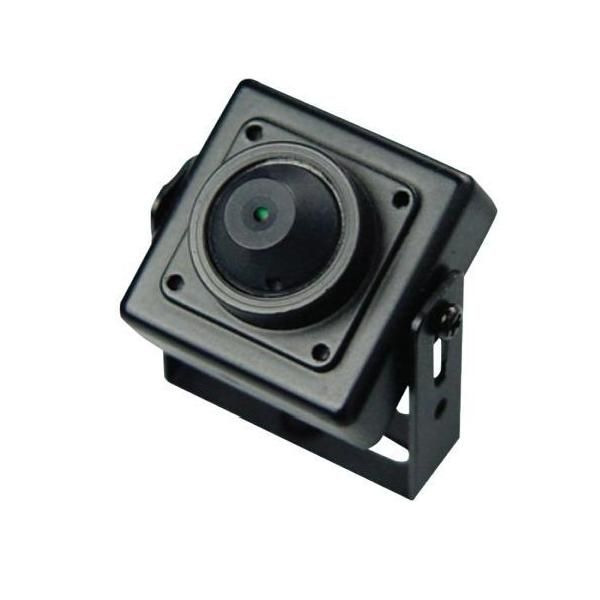

Weldex WDH-2500BC 1/3" B&W Ultra Mini Covert Camera with Fixed 3.6mm Conical Pinhole Lens

SKU
WDH-2500BC
Model No
WDH-2500BC
$50.70
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Ultra compact miniature camera
  • Extremely low power consumption (B&W: 80mA)
  • 0.01Lux at F1.2(B&W) minimum illumination
  • 620 TV lines(B&W) of resolution
  • Metal housing with mounting bracket, RCA connector & power cord

The WDH-2500BC from Weldex is a 1/3" B&W Ultra Mini Covert Camera with Fixed 3.6mm Conical Pinhole Lens, designed for those who need a discreet surveillance solution without compromising on quality. Its compact size and advanced features make it ideal for a variety of monitoring needs.

Weldex WDH-2500BC Camera Features

  • Ultra compact miniature camera: Perfect for covert operations where space is limited and discretion is key.
  • Extremely low power consumption (B&W: 80mA): Energy-efficient design ensures longer operation and less concern for power sources.
  • 0.01Lux at F1.2(B&W) minimum illumination: Capable of capturing clear images even in near-total darkness, enhancing safety and security.
  • 620 TV lines(B&W) of resolution: High-resolution output provides detailed video quality for thorough monitoring.
  • Metal housing with mounting bracket, RCA connector & power cord: Durable construction and included accessories make installation straightforward and reliable.

Weldex WDH-2500BC Detailed Specifications

Camera Type1/3" B&W Ultra Mini Covert Camera
Lens TypeFixed 3.6mm Conical Pinhole Lens
Minimum Illumination0.01Lux at F1.2
Resolution620 TV lines
Power Consumption80mA
Housing MaterialMetal
Included AccessoriesMounting bracket, RCA connector, Power cord
SKU  WDH-2500BC
Features  Auto Gain Control
Manufacturer  Weldex
Camera Signal     Analog
Resolution    620 TVL
Sensor Option    1/3" CCD
Lens Type    Fixed
Lens Size    3.6mm, 4.3mm, 5mm
Infrared Distance    Non Infrared
Durability    Indoor
Mount Type  Ceiling, Wall
Image Device    1/3-inch CCD Area Sensor
Image Pixels-Effective512 (H) x 494 (V)
Minimum Scene Illumination  0.01 Lux at F1.2
Operating Humidity    RH 95% Max
Operating Temperature    -4°F ~ 158°F (-20°C ~ + 70°C)
Dimensions (W x H)  25mm(L) x 25mm(W) x 16mm(D)
Power Consumption  80mA
S/N Ratio  45dB
Scanning System    2:1 Interlaced
Signal System    EIA
Video Output    1.0 - 1.1 Vp-p 75 ohm Composite Signal
Auto Gain Control    Yes
