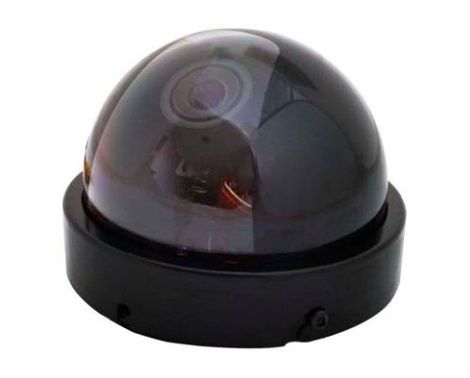

Weldex WDD-4905C 1/3" Vari-Focal Armordome Camera
SKU
WDD-4905C
Model No
WDD-4905C
$287.00
Product Highlights
- Vari-Focal 4-9mm Auto Iris Lens Included with Every WDD-4900 Series
- The Auto Iris Level Control Provides Adjustments for Extreme Light Conditions
- High Impact Lexan Dome Cover and Tamper Proof Screws Provide Ultimate Protection Against Vandalism
- The Heavy Duty All Metal Dome Base and Camera Swivel Bracket Add to The Protection of The Camera Circuitry
- Manual Pan, Tilt and Rotating (X-Y-Z axis) Adjustments Allow for Unobstructed Movement of The Camera Module
Speak to an expert
The Weldex WDD-4905C 1/3" Vari-Focal Armordome Camera is a robust solution for security and surveillance, delivering superior image quality and exceptional durability. With its 570TVL resolution and advanced features like AGC, BLC, and DSP, this camera is designed to perform in various lighting conditions, all while ensuring protection against vandalism with its heavy-duty housing and tamper-proof design.
Weldex WDD-4905C Camera Features
- Vari-Focal 4-9mm Auto Iris Lens: Provides flexibility for various viewing angles and lighting adjustments, ensuring optimal image clarity.
- Auto Iris Level Control: Easily adjusts to extreme light conditions, maintaining clear visibility in fluctuating environments.
- High Impact Lexan Dome Cover: Offers superior protection against vandalism, ensuring the camera remains operational in challenging situations.
- Heavy Duty All Metal Base: Enhances the durability of the camera's circuitry against physical damage.
- Manual Pan, Tilt, and Rotate Adjustments: Allows for precise camera positioning, facilitating comprehensive surveillance coverage.
- Line Lock with Vertical Phase Adjustment: Simplifies integration into existing matrix systems, making installation straightforward.
- Back Light Compensation: Selectable feature enhances image quality in backlit scenarios, ensuring clear video capture.
- Digital Signal Processing (DSP): Enhances picture clarity, delivering superior visual performance in various lighting conditions.
- Camera Options: Includes both color and B/W modes, as well as normal (420/430TVL) and high resolution (570TVL) capabilities.
Weldex WDD-4905C Detailed Specifications
| Image Sensor | 1/3” Interline Transfer Sony CCD |
| Resolution | 570TV Lines |
| S/N Ratio | 45dB |
| Lens | 4-9mm Auto Iris Lens (Optional 2.6-6mm Vari-Focal D-Mount Lens) |
| Illumination | 0.3 Lux |
| Video Output | BNC |
| Construction | Steel Housing and Polycarbonate Dome |
| Vandal Resistance | Can withstand an 8lb sledgehammer |
| Dimensions | Compact and lightweight for easy mounting and installation |
SKU  | WDD-4905C |
|---|---|
| Features | Auto Gain Control, Back Light Compensation |
| Manufacturer | Weldex |
Camera Signal  | Analog |
| Resolution | 570 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Varifocal |
| Lens Size | 4-9mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor, Vandal Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 24vAC |
| Image Device | 1/3" Color DSP |
| Image Pixels Total | High resolution – 768(H) x 494(V),Normal Resolution – 512(H) x 492(V) |
| Minimum Scene Illumination | 0.3 lux |
| Operating Temperature | +4 Deg. F to +158 Deg. F |
| Dimensions (W x H) | 4.7” DIA. X 3.55” H |
| Power Consumption | 200mA or less |
| S/N Ratio | More than 48dB |
| Video Output | 1.0Vp-p 75ohm |
| Weatherproof | NEMA 2 |
| Backlight Compensation | Selectable On/Off |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Auto Gain Control | Yes |
