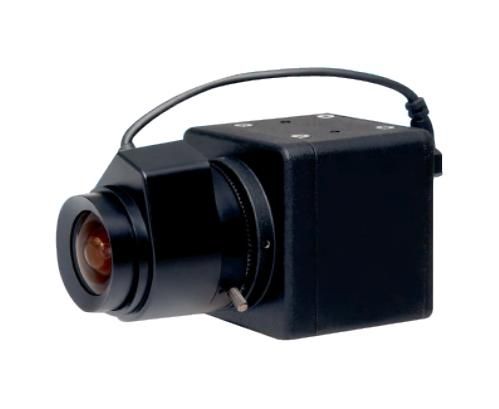

Weldex WDAC-4288WD 1/3" High Resolution Digital OSD Camera
SKU
WDAC-4288WD
Model No
WDAC-4288WD
$183.27
Product Highlights
- Ultra wide dynamic range pxim seawolf sensor for outstanding back light sensitivity
- Enhanced low-light performance for indoor & outdoor applications (0.1 Lux)
- High resolution of 690 HTVL lines
- User friendly OSD menu control
- Day & night
Speak to an expert
The Weldex WDAC-4288WD 1/3" High Resolution Digital OSD Camera delivers exceptional image quality and versatility for both indoor and outdoor surveillance applications. It features an ultra wide dynamic range sensor for backlight sensitivity, enhanced low-light performance, and a user-friendly on-screen display menu control, making it the ideal choice for high-demand security installations.
Weldex WDAC-4288WD Camera Features
- Ultra Wide Dynamic Range: Equipped with the Pxim Seawolf sensor, this camera provides outstanding backlight sensitivity, enabling clear images in challenging lighting conditions.
- Low-Light Performance: With a minimum illumination of just 0.1 Lux, this camera excels in low-light environments, ensuring reliable operation day and night.
- High Resolution: Achieving an impressive resolution of 690 HTVL lines guarantees sharp and detailed visuals for effective monitoring.
- User-Friendly OSD Menu: The intuitive on-screen display menu control allows for easy adjustments and settings management, streamlining the setup process.
- Dual Voltage Compatibility: Supporting both AC24V and DC12V, the WDAC-4288WD offers flexible installation options, catering to various power supply requirements.
- Dynamic Range: With a maximum dynamic range of 120 dB, this camera provides superior image quality by preserving details in both bright and dark areas.
- Versatile Additional Functions: Features such as sens-up, motion detection, mirror image, sharpness adjustments, and sync options enhance functionality for a comprehensive surveillance solution.
Weldex WDAC-4288WD Detailed Specifications
| Camera Type | 1/3" High Resolution Digital OSD Camera |
| Sensor Type | Pxim Seawolf |
| Resolution | 690 HTVL lines |
| Illumination | 0.1 Lux |
| Dynamic Range | 120 dB max |
| Voltage | AC24V / DC12V |
| Special Features | OSD menu control, dual voltage, additional video functions |
SKU  | WDAC-4288WD |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant |
| Manufacturer | Weldex |
Camera Signal  | Analog |
| Resolution | 690 TVL |
| Sensor Option | 1/3" PIXIM |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor, Weather Resistant |
| Connection Type | Wired |
| Mount Type | Bracket Required |
| Voltage | 12vDC, 24vAC, Dual Voltage |
| Electronic Shutter | NTSC: 1/25 ~ 1/30, 720 second (F1.2), PAL: 1/25 ~ 1/30, 720 second (F1.2) |
| Image Device | 1/3” Pixim seawolf |
| Minimum Scene Illumination | NTSC: 0.1Lux min. illumination (F1.2, 50IRE), PAL: 0.1Lux min. illumination (F1.2, 50IRE) |
| Operating Humidity | 30 ~ 90% RH |
| Operating Temperature | -10˚C ~ 50˚C |
| OSD Menu | Built-in |
| Privacy Zone | On / off (16 programmable zone) |
| S/N Ratio | up to 50dB max (Y signal, AGC o ) |
| Scanning Horizontal | 15.734KHz |
| Scanning System | Progressive |
| Scanning Vertical | 59.94Hz |
| Signal System | NTSC, PAL |
| Video Output | NTSC: 1.0Vp-p/75 (video 0.714Vp-p SYNC 0.286Vp-p), PAL: 1.0Vp-p/75 (video 0.7Vp-p SYNC 0.3Vp-p) |
| Synchronization | Internal / line lock (phase adjust) |
| Digital Noise Reduction | 3D motion adaptive |
| Backlight Compensation | BLC on / off |
| Automatic White Balance | ATW, AWB |
| Auto Gain Control | Programmable up to 50dB |
| Motion Detection | On / off (4 programmable zone) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
