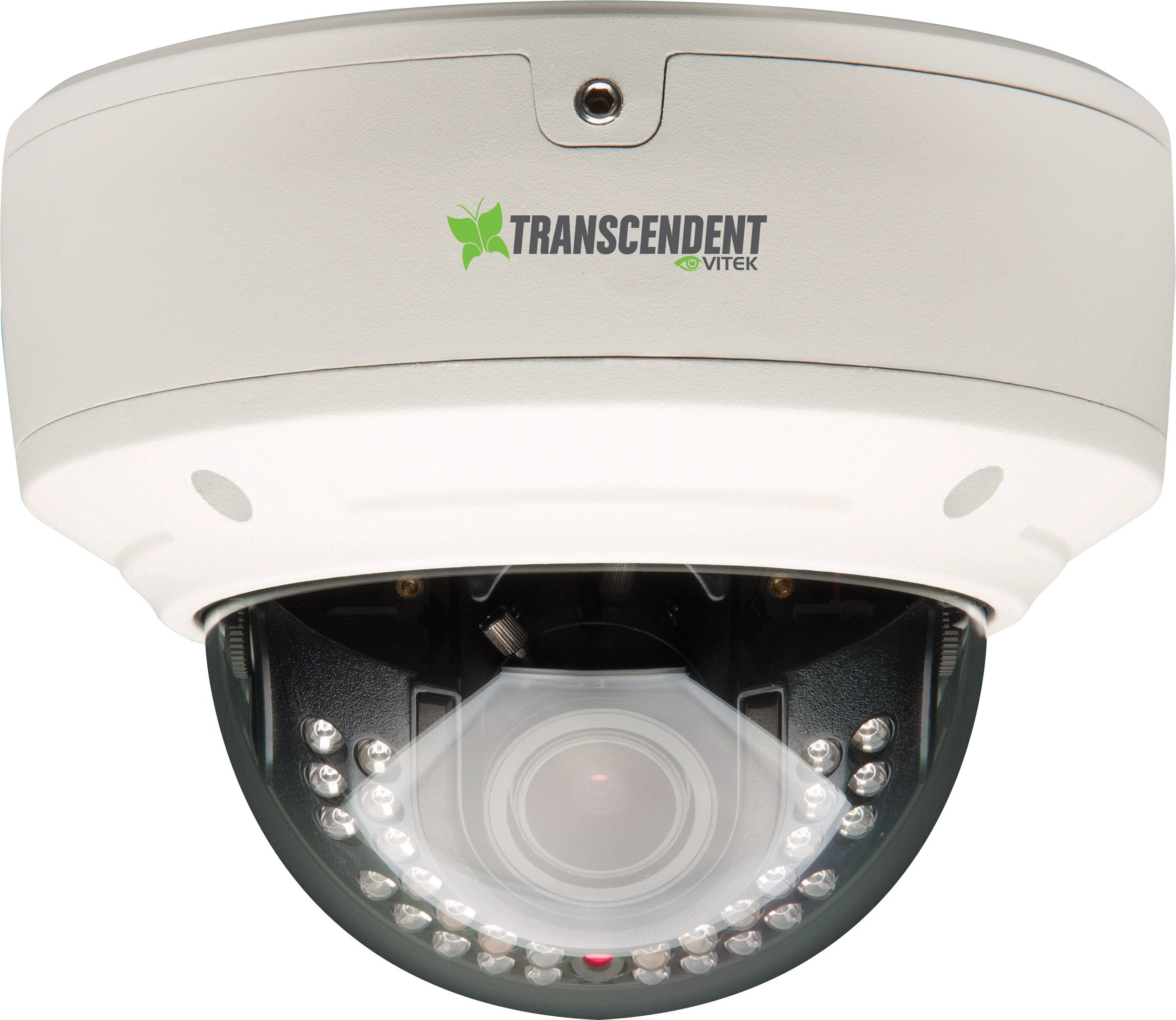

Vitek VTD-TND30R3V 3 Megapixel Outdoor IR Network Vandal Dome
SKU
VTD-TND30R3V
Model No
VTD-TND30R3V
was $263.00 Special Price $248.05
Product Highlights
- 1/3 3.0 Megapixel Progressive Scan CMOS image sensor
- Up to 30fps live view @ 1920x1080 (2MP) / 15fps live view @ 2048x1536 (3MP)
- 2.8~12mm Varifocal Lens
- 30 Infrared LED™s with 100™ IR Range
- Wide Dynamic Range (WDR)
Speak to an expert
The Vitek VTD-TND30R3V 3 Megapixel Outdoor IR Network Vandal Dome is designed to deliver high-quality video surveillance with its advanced features and robust design. This camera ensures reliable performance in various conditions, making it an ideal choice for both residential and commercial security installations. Its easy installation and remote viewing capabilities enhance user convenience and accessibility.
Vitek VTD-TND30R3V Camera Features
- Image Sensor: 1/3” 3.0 Megapixel Progressive Scan CMOS image sensor for clear and detailed images.
- Live View Performance: Up to 30fps live view @ 1920x1080 (2MP) and 15fps live view @ 2048x1536 (3MP) for smooth video feed.
- Lens: 2.8~12mm Varifocal Lens providing flexible field of view options.
- IR Capability: 30 Infrared LED’s with 100’ IR Range ensuring visibility in total darkness.
- Wide Dynamic Range: Wide Dynamic Range (WDR) technology for balanced lighting conditions in challenging environments.
- Day/Night Function: True Mechanical Day/Night function by ICR for improved night-time surveillance.
- Noise Reduction: 3D-DNR Noise Reduction technology enhancing video quality in low light.
- Motion Detection: On Board Motion Detection for proactive security monitoring.
- Dual Streaming: H.264/MJPEG Dual Streaming for flexible bandwidth management.
- Onvif Compliance: Ensures compatibility with various surveillance systems.
- Remote Viewing: Access live camera feed via CMS, Internet Explorer, and iOS & Android Apps.
- Multi-user Access: Minimal Latency with up to 10 simultaneous user connections for shared monitoring.
- Weather Resistance: IP66 Weather Resistance for durability against harsh environmental conditions.
- Power Options: 12VDC & PoE (Power over Ethernet) Operation for versatile installation options.
Vitek VTD-TND30R3V Detailed Specifications
| Image Sensor | 1/3” 3.0 Megapixel Progressive Scan CMOS |
| Video Resolution | Up to 2048x1536 (3MP) |
| Frame Rate | 30fps @ 1920x1080, 15fps @ 2048x1536 |
| Lens Type | Varifocal, 2.8~12mm |
| IR Range | 100 feet with 30 Infrared LEDs |
| Dynamic Range | Wide Dynamic Range (WDR) |
| Day/Night Switching | True Mechanical Day/Night |
| Noise Reduction | 3D-DNR |
| Motion Detection | On Board Motion Detection |
| Streaming Protocols | H.264/MJPEG Dual Streaming |
| Compliance | Onvif Compliant |
| Remote Access | CMS, Internet Explorer, iOS & Android Apps |
| User Connections | Up to 10 simultaneous users |
| Weather Rating | IP66 |
| Power Supply | 12VDC & PoE |
SKU  | VTD-TND30R3V |
|---|---|
| Features | Auto Gain Control, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vitek |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 3 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 3.10” x 3.58” x 5.70” (78.7 × 90.9 × 144.7mm) H x W x Dia |
| Electronic Shutter | 1/25s~ 1/100000s |
| Image Device | 1/3” CMOS (GM8139 + Aptina0330) |
| IR LEDs | 30 |
| Minimum Scene Illumination | 0 Lux (IR LED ON) |
| Operating Humidity | 10%~90% Humidity |
| Operating Temperature | -4~122 |
| Protocols | TCP/IP, UDP, DHCP, NTP, RTSP, HTTP, PPPOE, DDNS, SMTP, FTP |
| Video Output | RJ45 |
| Weatherproof | IP66 |
| Digital Noise Reduction | 3D-DNR |
| IR Distance | 30.48m/100ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
