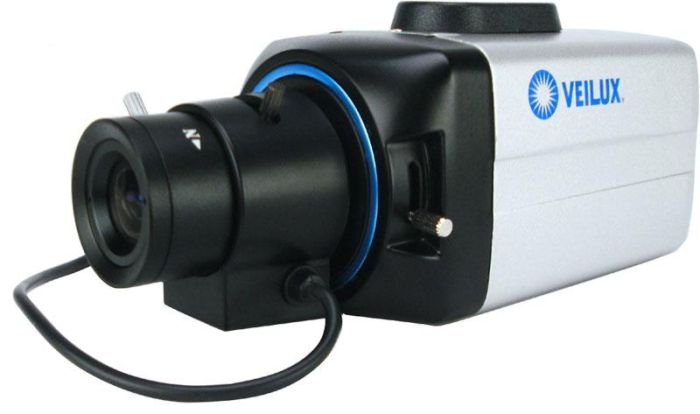

Veilux VS-70 960H Day/Night Box Camera
SKU
VS-70
Model No
VS-70
$124.80
Product Highlights
- Triple Voltage Optional (12VDC, 24VDC, 24VAC)
- Digital Zoom
- Defog
- Digital Image Stabilizer
- AF Detector
Speak to an expert
The Veilux VS-70 is a high-performance Day/Night box camera designed for versatile monitoring needs. With over 760 TV lines of resolution, it delivers outstanding clarity in both color and black and white images, ensuring reliable performance round the clock. Key features like back light compensation, 3D Digital Noise Reduction, and Wide Dynamic Range help eliminate issues due to contrast and lighting variations, making it an ideal choice for any security application.
Veilux VS-70 Camera Features
- Triple Voltage Optional: Supports 12VDC, 24VDC, and 24VAC, offering flexibility for various installations.
- Digital Zoom: Provides enhanced visibility by allowing users to zoom in on important details without sacrificing image quality.
- Defog: Improves clarity in foggy conditions, ensuring a clear image in challenging weather.
- Digital Image Stabilizer: Reduces blurring from camera shakes, delivering smooth and stable video footage.
- AF Detector: Automatic focus detection enhances the clarity of the main subject while minimizing distractions.
- Lens Shading Compensation: Corrects color variations across the image, resulting in consistent visual quality.
- Motion Detection: Alerts users to movement within the field of view, optimizing security monitoring efficiency.
- Sense Up: Enhances low-light performance, allowing for better visibility in dark environments.
- Privacy Zone Mask: Allows users to define specific areas that should be excluded from monitoring, ensuring privacy where needed.
Detailed Camera Specifications for Veilux VS-70
| Resolution | Over 760 TV Lines |
| Day/Night Functionality | Removable IR Cut Filter |
| Back Light Compensation | Yes |
| 3D DNR | Yes |
| WDR | Yes |
| Voltage Options | 12VDC, 24VDC, 24VAC |
| Digital Zoom | Yes |
| Defog | Yes |
| Motion Detection | Yes |
| Sense Up | Yes |
| Privacy Zone Mask | Yes |
SKU  | VS-70 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Veilux |
Camera Signal  | Analog |
| Resolution | 760 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 12vDC |
| Electronic Shutter | Auto / Manual / Fixed |
| Image Device | 1/3” Sony EFFIO-V 960H CCD |
| Image Pixels-Effective | 1020(H) x 508(V) (NTSC), 1020(H) x 596(V) (PAL) |
| Minimum Scene Illumination | 0.01Lux |
| Operating Humidity | 10% -85% RH |
| Operating Temperature | Operating: 14°F to 131°F (-10°c to 55°C) |
| Dimensions (W x H) | 2.3” x 3.9” x 2.5” [ 6cm x 10cm x 6.5cm ] |
| Power Consumption | Less than 150mA |
| S/N Ratio | >52dB(AGC off) |
| Signal System | NTSC / PAL |
| Video Output | 1.0Vp-p/75 Ω |
| Synchronization | Internal |
| Digital Noise Reduction | 3DNR+2DNR |
| Backlight Compensation | BLC / HLC |
| Automatic White Balance | AWB (1800K-10500K) |
| Auto Gain Control | Auto |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Digital Noise Reduction | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
| Digital Zoom | Yes |
