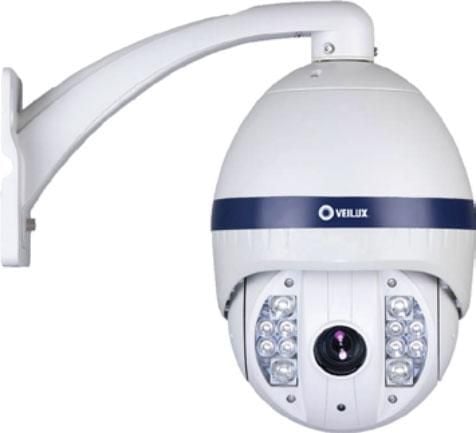

Veilux VPIP-2MIR22X 2Mp 22x Outdoor IR Network PTZ Camera

SKU
VPIP-2MIR22X
Model No
VPIP-2MIR22X
$1,373.85
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Progressive Scan CMOS Image Sensor
  • 2 Megapixel Full HD Resolution - 1920 x 1080 @ 30fps
  • 22x optical zoom (4.7-103mm)
  • Built-in IR LEDs with up to 100 meter range
  • True Day/Night with ICR Filter

The VPIP-2MIR22X from Veilux is a cutting-edge 2-megapixel Full HD network PTZ camera designed for outdoor use. With an impressive 22x optical zoom lens and built-in IR LEDs for enhanced night visibility up to 100 meters, this camera delivers exceptional performance in various lighting conditions. Its IP66 weatherproof enclosure ensures reliable operation in challenging environments, while features like 360-degree endless rotation and two-way audio make it an ideal solution for comprehensive surveillance.

Veilux VPIP-2MIR22X Unique Features

  • Progressive Scan CMOS Image Sensor: Provides superior image quality for clear and detailed video footage.
  • 2 Megapixel Full HD Resolution: Captures high-definition video at 1920 x 1080 resolution, ensuring crisp visuals at 30 frames per second.
  • 22x Optical Zoom (4.7-103mm): Allows for close-up detail without losing image quality, ideal for monitoring distant objects.
  • Built-in IR LEDs with up to 100 Meter Range: Ensures excellent night vision capabilities for around-the-clock surveillance.
  • True Day/Night with ICR Filter: Automatically switches between day and night modes for optimal image quality in varying light conditions.
  • 360-degree Endless Rotation: Provides complete coverage without blind spots, enhancing surveillance capabilities.
  • SD Local Storage Support (Max. 32GB): Offers convenient storage options for recorded footage, ensuring data is readily accessible.
  • H.264 High Profile / MJPEG Compression: Reduces file sizes while maintaining video quality, optimizing storage and bandwidth utilization.
  • Wide Dynamic Range: Balances exposure for both bright and dark areas in the same scene, enhancing visibility in challenging lighting.
  • 2D+3D Digital Noise Reduction / Privacy Masks: Improves image clarity and provides privacy options as needed for sensitive areas.
  • Two-way Audio: Facilitates communication with on-site individuals, adding versatility to surveillance functions.
  • BLC (Back Light Compensation): Corrects exposure levels in backlit situations, ensuring clear video capture.
  • IP66 Rated: Guarantees protection against water and dust, making it suitable for harsh outdoor environments.
  • 24VAC Operation: Ensures reliable power supply for continuous operation.
  • Onvif Compliant: Ensures compatibility with a wide range of third-party surveillance products.

Veilux VPIP-2MIR22X Detailed Specifications

FeatureDetails
Image SensorProgressive Scan CMOS
Resolution2 Megapixel (1920 x 1080) at 30fps
Optical Zoom22x (4.7-103mm)
IR RangeUp to 100 meters
Day/Night FunctionTrue Day/Night with ICR filter
Rotation360-degree endless rotation
Local StorageSupports up to 32GB SD card
Video CompressionH.264 High Profile / MJPEG
Wide Dynamic RangeYes
Noise Reduction2D+3D Digital Noise Reduction
Audio SupportTwo-way audio
BLCBack Light Compensation
Weatherproof RatingIP66
Power Supply24VAC
Onvif ComplianceYes
SKU  VPIP-2MIR22X
Features  Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Digital Zoom, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Veilux
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Lens Size    22X
Mount Type  Wall
Compression Method    H.264, M-JPEG
Durability    Vandal Resistant, Weather Resistant
Voltage  24vAC
Automatic Gain Control (AGC)    Auto / Fixed 8~102db
Dimensions (W x H)  9.3 x 14.4 mm (237 mm x 368 mm)
Image Device    2MP CMOS HD 1080P
Minimum Scene Illumination  ICR OFF 0.26 lux / ICR ON 0.005 lux
Operating Humidity    10% -85% RH
Operating Temperature    Operating: 14°F to 131°F (-10°c to 55°C)
OSD Menu    English, Russian, Chinese, Polish
Power Consumption  35W (Max)
Privacy Zone    5 User defined masking areas <8% of total picture
Protocols  HTTP, TCP/IP, UDP/IP, RTSP, FTP, DHCP, NTP, PPoE, NTP. Unicast and Multicast supported
Video Output    BNC 1.0Vp-p / 75 Ohm support PAL/NTSC
Weatherproof    IP66
Digital Noise Reduction    3D
Angle of View    Wide: 4.7 mm 58°11’ x 34°44’, Tele: 94 mm 3°11’ x 1°48’
Automatic White Balance    Auto
IR Distance  100 meters
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
Digital ZoomYes
