Veilux VEX-Thermal-50 Explosion Proof Thermal Imaging Camera, 50mm
SKU
VEX-Thermal-50
Model No
VEX-Thermal-50
$26,045.87
Product Highlights
- Uncooled VOx Microbolometer Sensor
- 17 m Pixel Pitch
- 640x480 FPA/ Digital Video Display Format
- 560TV Lines of Resolution
- IP67 rated

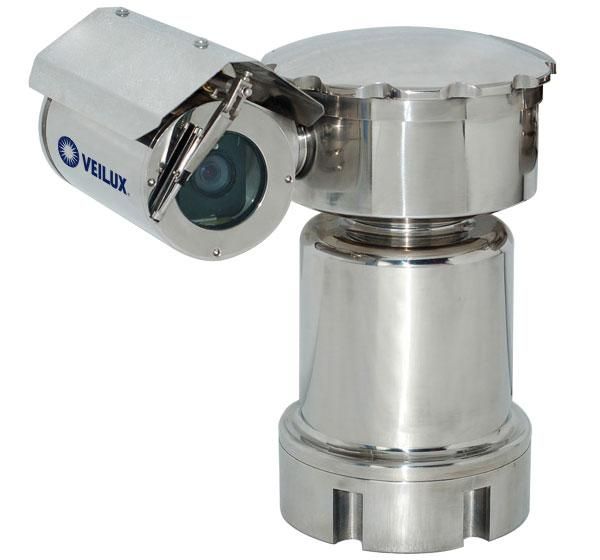

The VEX-Thermal-50 from Veilux is an explosion proof thermal imaging camera.
Features
- Uncooled VOx Microbolometer Sensor
- 17 m Pixel Pitch
- 640x480 FPA/ Digital Video Display Format
- 7.5-13.5 m Spectral Band
- Scene Range (High Gain) -25 degree C ~ +135 degree C
- Scene Range (Low Gain) -40 degree C ~ +550 degree C
- up to 8x Digital Zoom
- 560TV Lines of Resolution
- IP67 rated
- 360 degree Continuous Pan Rotation / 10 degree per second (max.)
- -90 degree ~ +90 degree Tilt Range
- Stainless Steel construction
SKU  |
VEX-Thermal-50 |
|---|---|
| Features |
Auto Gain Control, Weather Resistant |
| Manufacturer |
Veilux |
Camera Signal  |
Analog |
| Resolution |
560 TVL |
| Sensor Option |
Uncooled Microbolometer |
| Lens Type |
Fixed |
| Lens Size |
50mm |
| Infrared Distance |
Non Infrared |
| Durability |
Explosion Proof, Weather Resistant |
| Mount Type |
Pedestal |
| Voltage |
4-6vDC |
| Image Device |
Uncooled VOx Microbolometer Sensor |
| Operating Humidity |
<95%RH [77°F (+25°C)] |
| Operating Temperature |
0°C ~ 65°C (32°F ~ 149°F) |
| Weatherproof |
IP67 |
| Auto Gain Control |
Yes |
