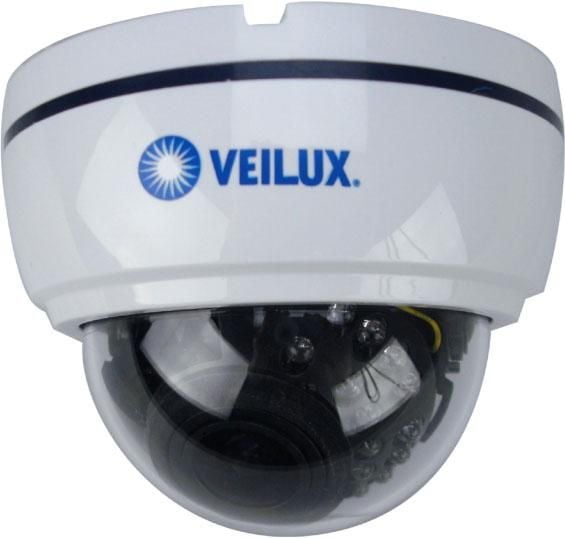

Veilux VD-70MINI-IRV 700TVL Indoor IR Mini Dome Camera
SKU
VD-70MINI-IRV
Model No
VD-70MINI-IRV
$73.20
Product Highlights
- High Resolution 700 TV Lines
- 0.001 Lux
- 24 IR LEDs
- E-WDR
- EZoom
Speak to an expert
The Veilux VD-70MINI-IR is a powerful mini camera for indoor use. This Day/Night camera has a 2.8-12mm Varifocal Autoiris lens and has a strong 700 TVL resolution. This powerful unit has back light compensation w/ auto-matic white balance. Great things come in small packages.
Features
- High Resolution: 700 TV Lines provide clear and detailed images, ensuring you have a high-quality viewing experience.
- Low Light Performance: 0.001 Lux sensitivity allows the camera to capture clear images in very low light conditions, enhancing surveillance capabilities.
- Infrared LEDs: 24 IR LEDs enable effective night vision, ensuring continuous monitoring even in complete darkness.
- E-WDR: Enhanced Wide Dynamic Range balances lighting conditions, preventing overexposure and underexposure in challenging environments.
- EZoom: Electronic zoom capability allows for detailed close-ups without losing image quality, providing flexibility in surveillance.
- Motion Detection: Built-in motion detection alerts you to any movement, improving security by minimizing false alarms.
- DIS: Digital Image Stabilization reduces blurriness caused by camera shake, enhancing overall video clarity.
- Triple Voltage: Optional power supply (12VDC, 24VDC, 24VAC) makes installation easier with flexible power options.
Veilux VD-70MINI-IR Specifications
| Camera Resolution | 700 TVL |
| Lens Type | 2.8-12mm Varifocal Autoiris |
| Low Light Sensitivity | 0.001 Lux |
| Infrared LED Count | 24 IR LEDs |
| Wide Dynamic Range | E-WDR |
| Electronic Zoom | EZoom |
| Motion Detection | Yes |
| Digital Image Stabilization | DIS |
| Power Supply Options | 12VDC, 24VDC, 24VAC |
SKU  | VD-70MINI-IRV |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Veilux |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Infrared Distance | 0~60 Feet |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Image Device | 1/3” Sony CCD EFFIO-E |
| Image Pixels Total | 1020(H) x 508(V) (NTSC), 1020(H) x 596(V) (PAL) |
| Image Pixels-Effective | 976(H) x 494(V) (NTSC), 976(H) x 582(V) (PAL) |
| Minimum Scene Illumination | [email protected] |
| Operating Humidity | 10% -85% RH |
| Operating Temperature | 14°F to 131°F (-10°c to 55°C) |
| Dimensions (W x H) | Ø4.3” x 3.5”(H) [Ø11cm x 9cm(H)] |
| Power Consumption | Less than 150mA |
| Privacy Zone | 4 Windows, (Polygonal, 4 Colors) |
| S/N Ratio | More than 50dB(AGC off) |
| Signal System | NTSC / PAL |
| Video Output | 1.0Vp-p/75 Ω |
| Synchronization | Internal |
| Backlight Compensation | BLC / HSBLC |
| Automatic White Balance | ATW / USER1 / USER2/ ANTI CR/ Manual / Push Lock / Push ATW |
| Auto Gain Control | Auto |
| IR LEDs | 24 Units |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
