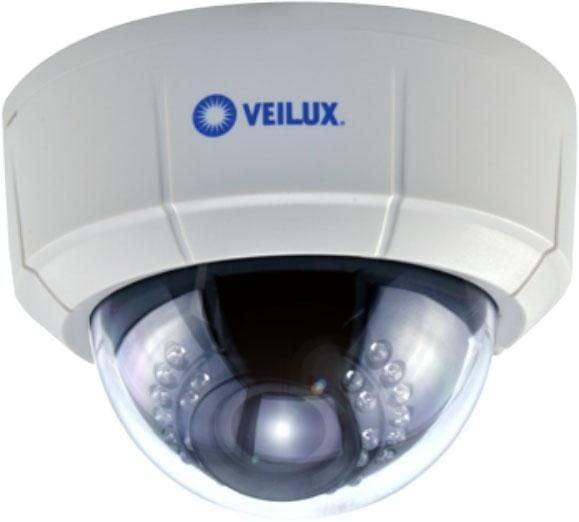

Veilux VD-70IR30V High Resolution Indoor IR Dome Camera

SKU
VD-70IR30V
Model No
VD-70IR30V
$129.60
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Triple Voltage Optional (12VDC, 24VDC, 24VAC)
  • Digital Zoom
  • Defog
  • Digital Image Stabilizer
  • AF Detector

This Veilux multi-function dome camera is designed for use indoors. This is a well-built true day/nite product with 30 IR LEDs. Among its many features are WDR, Sens-Up, Zero Defect, Motion Detection, Eclipse Function and an IR cut filter. This camera can see 35 meters indoors at night.

Features

  • Triple Voltage Optional: 12VDC, 24VDC, 24VAC provides flexibility for various power setups.
  • Digital Zoom: Allows for detailed inspections without losing image quality.
  • Defog: Enhances visibility in foggy conditions, ensuring clearer images.
  • Digital Image Stabilizer: Reduces blurriness caused by camera movement, enhancing overall image sharpness.
  • AF Detector: Automatic focus detection for improved clarity on subjects.
  • Lens Shading Compensation: Minimizes shading effects around the corners, producing uniform lighting across the image.
  • Motion Detection: Alerts and records only when motion is detected, saving storage space.
  • Sense Up: Improves low-light sensitivity, allowing clear video in dark environments.
  • Privacy Zone Mask: Lets you block specific areas from being recorded for privacy concerns.

Veilux VD-70IR30V Camera Features

Detailed Camera Specifications

Camera TypeHigh Resolution Indoor IR Dome Camera
IR LEDs30
Night Vision Range35 meters
WDR (Wide Dynamic Range)Yes
Sens-UpYes
Zero DefectYes
DimensionsStandard Dome Size
WeightLightweight for easy installation
SKU  VD-70IR30V
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range
Manufacturer  Veilux
Camera Signal     Analog
Resolution    760 TVL
Sensor Option    1/3" CCD
Lens Type    Varifocal
Lens Size    2.8-12mm
Infrared Distance    61~100 Feet
Durability    Indoor
Mount Type  Ceiling, Wall
Voltage  12vDC
Electronic Shutter    Auto/Manual/Fixed
Image Device    1/3” Sony EFFIO-V 960H CCD
Image Pixels-Effective1020(H) x 508(V) (NTSC), 1020(H) x 596(V) (PAL)
Minimum Scene Illumination  0.01 Lux
Operating Humidity    10% -85% RH
Operating Temperature    14°F to 131°F (-10°c to 55°C)
Dimensions (W x H)  Ø5.5” x 4.3”(H) [Ø14cm x 11cm(H)]
Power Consumption  Less than 150mA
S/N Ratio  More than 50dB(AGC off)
Signal System    NTSC / PAL
Video Output    1.0Vp-p/75 Ω
Synchronization  Internal
Digital Noise Reduction    3DNR+2DNR
Backlight Compensation    BLC / HLC
Automatic White Balance    AWB (1800K-10500K)
Auto Gain Control    Auto
IR LEDs  30 Units
Back Light Compensation    Yes
Automatic White Balance    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Mirror    Yes
On Screen Display Menu    Yes
Wide Dynamic Range    Yes
Privacy Masking    Yes
Auto Gain Control    Yes
Motion Detection Tracking    Yes
Digital ZoomYes
