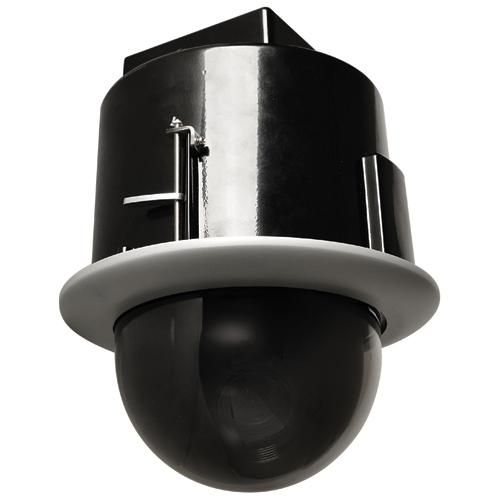

GE Security Interlogix TVP-4106 PTZ Dome Camera
SKU
TVP-4106
Model No
TVP-4106
$1,000.00
Product Highlights
- 1/3-inch EXview CCD II (23X); 1/4 super HAD-II CCD (36X)
- 23X or 36X optical zoom, 16X digital
- 700TVL resolution
- 3DNR and DWDR (ATR-EX) functionality
- Supports Interlogix RS-485 protocol as well as selectthird-party protocols
Speak to an expert
The TruVision® 960H Premium Resolution Series PTZ camera utilizes the latest PTZ technology to provide powerful, cost-effective surveillance for retail, commercial and small business applications. With advanced features such as True day/night surveillance and Digital Wide Dynamic Range imaging, the 23X and 36X PTZ cameras provide optimal image quality in a variety of indoor or outdoor environments. Motion detection, auto tracking, privacy masking and electronic image stabilization provide additional value to any surveillance system.
Features
- 1/3-inch EXview CCD II (23X); 1/4 super HAD-II CCD (36X)
- 23X or 36X optical zoom, 16X digital
- 700TVL resolution
- 3DNR and DWDR (ATR-EX) functionality
- Supports Interlogix RS-485 protocol as well as selectthird-party protocols
- Indoor and outdoor versions available
- Wall mounts compatible with UltraView®/CyberDome™/Legend™ wall mount accessories
- Auto tracking, privacy masking, motion detection
SKU  | TVP-4106 |
|---|---|
| Features | Auto Gain Control, Day/Night, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Interlogix |
Camera Signal  | Analog |
| Resolution | 700 TVL |
| Sensor Option | 1/4" CCD |
| Lens Type | Motorized Zoom |
| Lens Size | 36X |
| Infrared Distance | Non Infrared |
| Durability | Weather Resistant |
| Mount Type | In-Ceiling |
| Voltage | 24vAC |
| Electronic Shutter | 1/4 to 1/100,000 second |
| Image Device | 1/4 super HAD-II CCD |
| Image Pixels Total | 1020 (H) x 508 (V) |
| Image Pixels-Effective | 976 (H) x 494 (V) |
| Minimum Scene Illumination | Color: 0.2 Lux @ (F1.4, AGC ON) , B/W: 0.02 Lux @ (F1.4, AGC ON) |
| Operating Temperature | -4ºF – 149ºF ; -20°C - 65°C |
| Dimensions (W x H) | 98.8 x 81.2 in.(251 x 206.3mm) |
| OSD Menu | English / Chinese / German / French / Portuguese / Spanish |
| Power Consumption | Max. 15W |
| Privacy Zone | 24 zones |
| Protocols | Interlogix- 485, Pelco D, Pelco-P |
| S/N Ratio | 52dB (AGC off) |
| Scanning System | Interlaced scan |
| Signal System | NTSC |
| Video Output | 1.0 Vp-p/75 ohm composite |
| Weatherproof | IP54 |
| Zoom Ratio | Optical 36x; Digital 16x |
| Synchronization | Internal synchronization |
| Digital Noise Reduction | 3DNR |
| Day/Night | Yes |
| Heater & Fan | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
