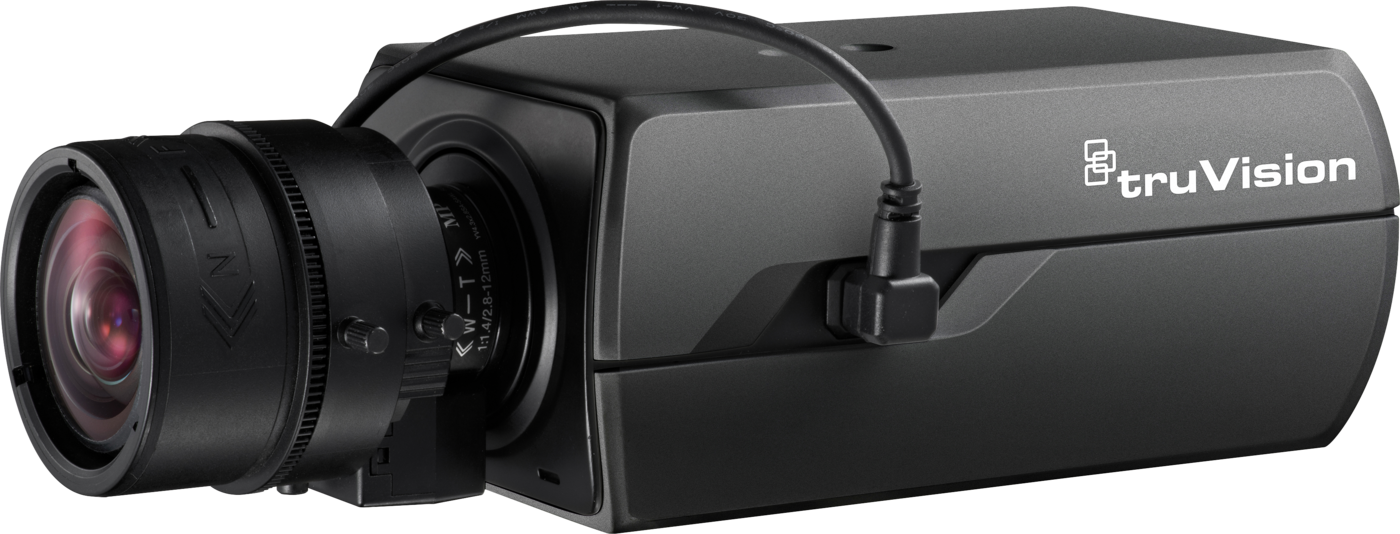

GE Security Interlogix TVC-1202 Truvision 3.0mpx IP Box Camera, PAL
SKU
TVC-1202
Model No
TVC-1202
$900.00
Product Highlights
- 3MPx Imager
- H.264 Compression w/Triple-streaming Functionality Accommodates Multiple Settings
- Designed to PSIA and ONVIF Profile S Open Standards
- Integrated Motion Detection and Privacy Masking
- Alarm Inputs and Outputs Provide Easy Notification and Control of Events
Speak to an expert
The GE Security Interlogix TVC-1202 TruVision 3.0mpx IP Box Camera is a versatile and advanced surveillance solution designed to deliver high-definition video performance. It features superior image capturing capabilities, cutting-edge technology for signal processing, and a host of user-friendly functionalities, making it the ideal choice for effective monitoring in various environments.
GE Security Interlogix TVC-1202 Camera Features
- 3MPx Imager: Offers exceptional image clarity to capture detailed visuals, ensuring better surveillance.
- H.264 Compression w/Triple-streaming Functionality: Accommodates multiple settings, allowing for flexible bandwidth management and optimized storage.
- Real-time Video Streaming: Select models support up to 1080p resolution for exceptionally detailed image capture, enhancing security monitoring.
- PSIA and ONVIF Profile S Compliance: Ensures compatibility with a variety of systems and easy integration into existing setups.
- True Day/Night Functionality: Infrared illuminators allow for image capturing in various lighting scenarios, ensuring round-the-clock surveillance.
- Advanced Image Processing Features: Includes ROI, Hallway View, Mirror, De-fog, and Electronic Image Stabilization for customized monitoring.
- Integrated Motion Detection and Privacy Masking: Provides enhanced security with configurable privacy settings for specific areas.
- Comprehensive Detection Capabilities: Features face detection, audio exception detection, and several types of intrusion detection to enhance security measures.
- Alarm Inputs and Outputs: Facilitate easy notification and control of events to improve response times.
- Edge Recording: Supports up to 64GB Micro SD/SDXC card (not included) for audio/video playback directly on the camera.
- Browser-supported Audio: Mono and bi-directional audio options to expand the IP stream, enhancing communication capabilities.
- External Analog BNC Video Out: Simplifies installation and setup, making it user-friendly.
- TruVision Device Manager Program: Provides fast and easy access to newly added system devices to streamline operations.
Detailed Specifications for GE Security Interlogix TVC-1202
| Camera Type | IP Box Camera |
| Resolution | 3.0 Megapixel |
| Video Compression | H.264 |
| Streaming Capability | Triple-streaming |
| Compatibility | PSIA and ONVIF Profile S |
| Infrared Capability | Yes, True Day/Night Functionality |
| Storage Support | Up to 64GB Micro SD/SDXC |
| Audio Features | Mono and Bi-directional Audio |
| Detection Features | Face Detection, Motion Detection, Privacy Masking |
| Special Modes | ROI, Hallway View, De-fog, Electronic Image Stabilization |
SKU  | TVC-1202 |
|---|---|
| Features | Auto Gain Control, Day/Night, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Interlogix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 3 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 2.68 x 2.56 x 5.70 in. (69.8 × 58 × 145mm) |
| Electronic Shutter | 50 Hz: 1/25s ~ 1/100,000s, 60 Hz: 1/30s ~ 1/100,000s |
| Image Device | 1/3" Progressive Scan CMOS Sensor |
| Minimum Scene Illumination | Color 0.1 lux @ f1.2, AGC ON, B/W 0.01 lux @ f1.2, AGC ON |
| Operating Temperature | -22~140°F (-30~60 °C) |
| OSD Menu | Text overlay and picture overlay |
| Power Consumption | Max. 9.5W with IR cut fi lter on @12VDC/24VAC |
| Protocols | TCP/IP, UDP, HTTP, DHCP, DNS, DDNS, ezDDNS, DynDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, UPnP, NAT, MULTICAST, 802.1x, Qos, IPv4, IPv6 |
| S/N Ratio | 50 dB (AGC OFF) |
| Signal System | PAL |
| Video Output | BNC Port - 1.0 Vp-p @75 ohm |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
