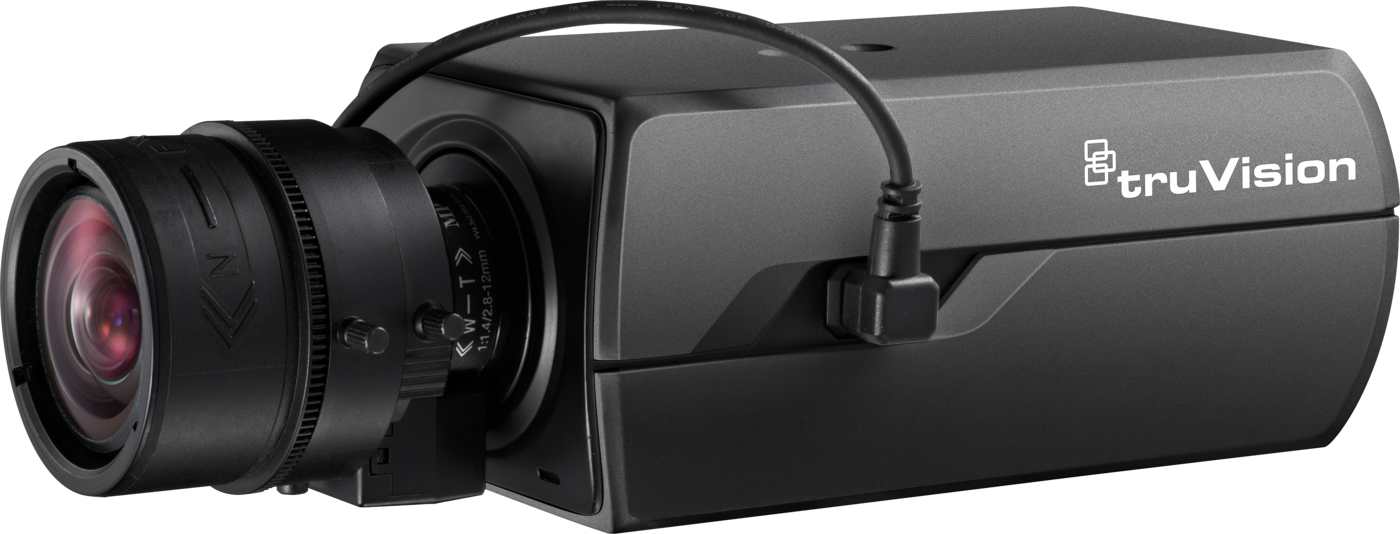

GE Security Interlogix TVC-1201 Truvision 1.3mpx IP Box Camera, PAL

SKU
TVC-1201
Model No
TVC-1201
$306.05
Qty:
Product Highlights
    • 1.3MPx Imager
    • H.264 Compression w/Triple-streaming Functionality Accommodates Multiple Settings
    • Designed to PSIA and ONVIF Profile S Open Standards
    • Integrated Motion Detection and Privacy Masking
    • Alarm Inputs and Outputs Provide Easy Notification and Control of Events

The TruVision line of IP Open Standards box cameras bring stateof-the-art, high-defi nition pictures to the mass video surveillance market. With camera resolutions of 1.3 or 3 megapixel, these IP cameras represent a fl exible video surveillance device to meet any need. Equipped with advanced technology and signal processing capability, they effectively capture video under challenging conditions.

TruVision cameras utilize H.264 compression technology with triple-streaming capability, making it easy to manage the camera’s bandwidth usage. These cameras adhere to PSIA and ONVIF Profile S open communication standards, and also support a CGI command set for simple integration into any IP system. Video streams can be set for high or low bandwidth, and images can be streamed for live viewing or sent to a designated recording location.

These cameras go above and beyond standard motion detection with enhanced alarm capabilities, including cross lines, intrusion, defocus and face detection features. Each is user-confi gurable to best suit the installation environment. A Region of Interest function ensures specifi c portions of an image are given priority during instances of high network traffi c or network degradation. Location-specifi c functions include a Hallway View Mode to provide a portrait view of a hallway or corridor, a De-Fog Mode to help resolve images though fog or rain and Electronic Image Stabilization for installations subject to physical vibration or shaking.

CCTV Resolution Comparison

Features

  • 1.3MPx Imager
  • H.264 Compression w/Triple-streaming Functionality Accommodates Multiple Settings
  • Select Models Feature Real-time Video Streaming Up to 1080p Resolution for Exceptionally Detailed Image Capture
  • Designed to PSIA and ONVIF Profile S Open Standards
  • True Day/Night Functionality and Infrared Illuminators to Capture Images in Various Lighting Scenarios
  • ROI (Region of Interest), Hallway View, Mirror, De-fog, Electronic Image Stabilization
  • Integrated Motion Detection and Privacy Masking
  • Face Detection, Audio Exception Detection, Cross Line, Intrusion Detection, De-focus, Scene Change Detection
  • Alarm Inputs and Outputs Provide Easy Notification and Control of Events
  • Edge Recording Supports Up to 64GB Micro SD/SDXC Card for Audio/Video Playback (card not included)
  • Browser-supported Mono and Bi-directional Audio to Expand IP Stream to Include Audio
  • External Analog BNC Video Out Connection for Easier Installation and Setup
  • Included TruVision Device Manager Program Provides Fast and Easy Access to Newly Added System Devices
SKU  TVC-1201
Features  Auto Gain Control, Day/Night, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Wide Dynamic Range
Manufacturer  Interlogix
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    1.3 Megapixel
Lens Type    Not Included
Mount Type  Bracket Required
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Indoor
Voltage  12vDC, 24vAC, PoE
Dimensions (W x H)  2.68 x 2.56 x 5.70 in. (69.8 × 58 × 145mm)
Electronic Shutter    50 Hz: 1/25s ~ 1/100,000s, 60 Hz: 1/30s ~ 1/100,000s
Image Device    1/3" Progressive Scan CMOS Sensor
Minimum Scene Illumination  Color 0.01 lux @ f1.2, AGC ON, B/W 0.001 lux @ f1.2, AGC ON
Operating Temperature    -22~140°F (-30~60 °C)
OSD Menu    Text overlay and picture overlay
Power Consumption  Max. 9W with IR cut fi lter on @12VDC/24VAC
Protocols  TCP/IP, UDP, HTTP, DHCP, DNS, DDNS, ezDDNS, DynDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, UPnP, NAT, MULTICAST, 802.1x, Qos, IPv4, IPv6
S/N Ratio  50 dB (AGC OFF)
Signal System    PAL
Video Output    BNC Port - 1.0 Vp-p @75 ohm
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
