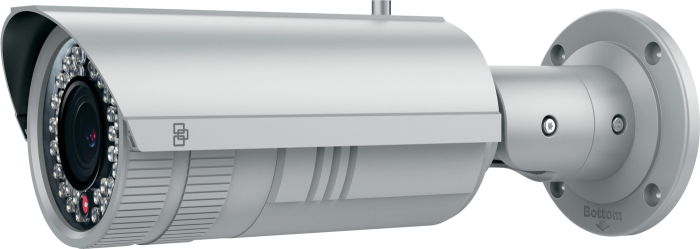

GE Security Interlogix TVB-3203 Truvision 3.0mpx IP Bullet Camera, 8~32mm, 50m IR, NTSC

SKU
TVB-3203
Model No
TVB-3203
$639.30
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • 3MPx Imager
  • H.264 Compression Technology w/Triple-streaming Capability Accommodates Multiple Settings
  • Long Zoom and IR Range
  • Motorized Varifocal Lens Technology Provides Remote Autofocus
  • IP66 Vandal-resistant Housings

The GE Security Interlogix TVB-3203 TruVision 3.0mpx IP Bullet Camera offers exceptional high-definition surveillance capabilities, perfect for outdoor environments. With advanced features like motorized varifocal lens technology, H.264 compression, and enhanced alarm systems, this camera excels in providing flexible surveillance solutions under diverse conditions. Its adherence to open communication standards ensures seamless integration into existing security systems, making it a versatile choice for both residential and commercial applications.

Key Features

  • 3MPx Imager: Provides high-resolution images for improved clarity and detail, ideal for capturing critical footage.
  • H.264 Compression Technology w/Triple-streaming Capability: Manages bandwidth efficiently while offering versatile streaming options for various settings.
  • Long Zoom and IR Range: Ensures excellent visibility up to 50 meters in low light, expanding your monitoring capabilities.
  • Motorized Varifocal Lens Technology: Enables remote lens adjustment and focus for enhanced usability and quick setup.
  • Designed to PSIA and ONVIF Profile S Open Standards: Guarantees compatibility with a wide array of surveillance systems, simplifying integration.
  • True Day/Night Functionality: Captures clear images in varying lighting conditions, along with infrared illuminators for nighttime visibility.
  • Up to 120dB of Wide Dynamic Range (WDR) Performance: Maintains image quality in challenging lighting situations, balancing bright and dark areas.
  • ROI, Hallway View, Mirror, De-Fog and Electronic Image Stabilization Features: Optimizes image capture for specific needs and environments, enhancing overall functionality.
  • Integrated Motion Detection and Privacy Masking: Provides advanced security measures, allowing users to define monitoring areas and maintain privacy.
  • Face Detection, Cross Line, Intrusion Detection, De-focus and Scene Change Detection: Enhances security response with intelligent alerts based on specific triggers.
  • Edge Recording Supports Up to 64GB Micro SD/SDXC Card: Safeguards data with reliable storage options (card not included), ensuring continuous recording.
  • IP66 Vandal-resistant Housings: Offers robust protection against environmental factors and tampering for increased durability.
  • Included TruVision Device Manager Program: Simplifies the management of system devices, providing quick and efficient access to integrated components.

GE Security Interlogix TVB-3203 TruVision Camera Specifications

FeatureDetails
Imager Resolution3MPx
Lens Type8~32mm Motorized Varifocal Lens
Infrared RangeUp to 50m
Compression FormatH.264
Dynamic Range120dB WDR
Standards CompliancePSIA, ONVIF Profile S
Recording CapabilitySupports 64GB Micro SD/SDXC
Ingress ProtectionIP66
Included SoftwareTruVision Device Manager
Alarms & DetectionFace, Motion, Intrusion, Cross Line Detection
Electronic StabilizationYes
Day/Night FunctionalityTrue Day/Night with IR illuminators
SKU  TVB-3203
Features  Auto Gain Control, Day/Night, Heater & Fan, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Interlogix
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    101 Feet +
Resolution    3 Megapixel
Lens Type    Varifocal
Lens Size    8-32mm
Mount Type  Ceiling, Wall
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  3.86 x 4.0 x 12.74 in (98 x 105 × 328.8 mm)
Electronic Shutter    50 Hz: 1/25s ~ 1/100,000s, 60 Hz: 1/30s ~ 1/100,000s
Image Device    1/3" Progressive Scan CMOS sensor
Minimum Scene Illumination  Color 0.1 lux @ f1.2, AGC ON, 0 lux IR ON
Operating Temperature    -22°F~140°F (-30°C~60°C)
OSD Menu    Text overlay and picture overlay
Power Consumption  Max. 12.5W
Protocols  TCP/IP, UDP, HTTP, DHCP, DNS, DDNS, ezDDNS, DynDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP, UPnP, NAT, MULTICAST, 802.1x, Qos, IPv4, IPv6
S/N Ratio  50 dB (AGC OFF)
Signal System    NTSC
Weatherproof    IP66
IR Distance  164 ft. (50m)
Auto Gain Control    Yes
Day/Night    Yes
Heater & Fan    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
