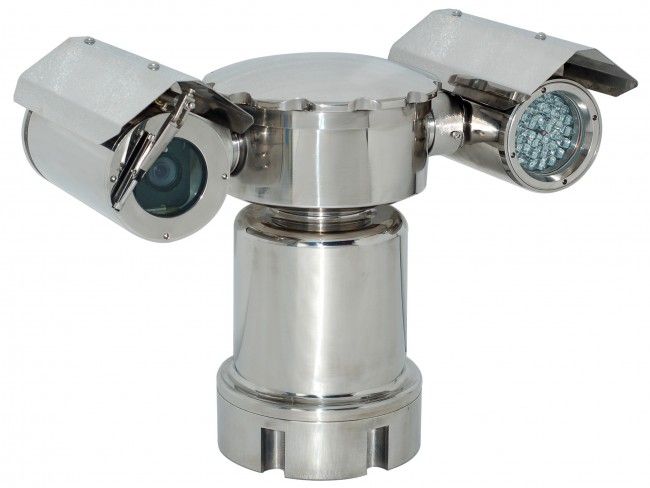

Veilux SVEX-HIR7 IP68 Explosion Proof Security Camera

SKU
SVEX-HIR7
Model No
SVEX-HIR7
$10,375.43
Qty:
Product Highlights
    • Double Certifications
    • 304 or 316L Stainless Steel Material
    • Housing, Pan/Tilt, Decoder, IR Headlight Integrated
    • All Kinds of Camera Optional
    • Multiple Protocol

Safely operating security and surveillance equipment can be nearly impossible if it is needed in explosive, flammable, and extremely hostile environments. The Veilux SVEX-HIR7 monitoring station is integrated into a stainless steel housing that is CNEx06.172 and Nemko 08ATEX1100 certified for use in explosive and flammable environments. Offering a choice of 304 or 316L stainless steel material, the fireproof housing carries an IP-68 all-weather indoor/outdoor rating for use in the most extreme weather conditions.

The SVEX-HIR7 explosion-proof security camera includes an integrated color camera offering 480 TV lines resolution, an 18x optical zoom lens, and an IR headlight that compensates for low lighting conditions. It features an integrated structure design which eliminates the cables between the camera and the explosion-proof PTZ mechanism. This allows for 360-degree continuous pan operation and +90°~-90° tilt turning radius. The fixed brackets, base, and pole or lattice tower mounting make it easy to install and maintain.

Features

  • Double Certifications
  • 304 or 316L Stainless Steel Material
  • Housing, Pan/Tilt, Decoder, IR Headlight Integrated
  • All Kinds of Camera Optional
  • 360° Continuous Pan Rotation
  • +90°~-90° Tilt Turning
  • 128 Presets
  • Stabilized images by reducing flickering
  • Indoor and Outdoor For All Weather Use
  • Bracket or Base Installation / Stand Installation
  • IP68 Weather Proof Rating
  • 100v AC~240v AC Power Input
SKU  SVEX-HIR7
Features  Auto Gain Control, Weather Resistant
Manufacturer  Veilux
Camera Signal     Analog
Resolution    480 TVL
Sensor Option    1/4" CCD
Lens Type    Motorized Zoom
Lens Size    18X
Infrared Distance    101 Feet +
Durability    Explosion Proof, Indoor, Weather Resistant
Mount Type  Bracket Required
Voltage  100-240vAC
Image Device    1/4” ExView HAD CCD
Image Pixels-Effective752(H) x 582(V)
Minimum Scene Illumination  0.7Lux (Color) / 0.01Lux (Black)
Operating Temperature    -40ºC~+60ºC
Power Consumption  <1A
Protocols  Multi-, To Be Set
S/N Ratio  >50db
Scanning Horizontal  15.625KHz
Scanning Vertical50Hz
Video Output    1.0 Vp-p Composite 75Ω, BNC
Weatherproof    IP68
Zoom Ratio    18x
Synchronization  Internal/External
Angle of View    48° (Wide) / 2.8° (Tele)
Auto Gain Control    Yes
