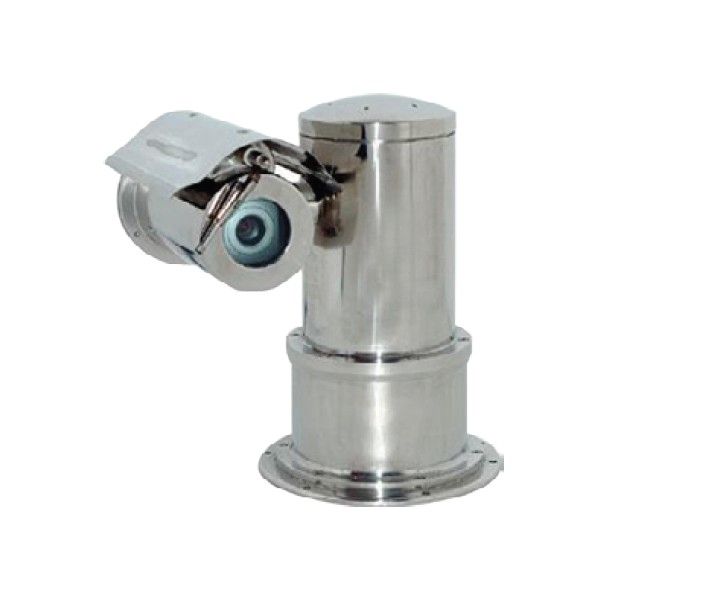

Veilux SVEX-1301HD 1.3MP Explosion Proof PTZ IP Dome Camera
- 360 degree continuous pan
- 128 Preset Positions
- IP68 Rated Waterproof
- Wiper, Heater and Sun Shield included
Veilux SVEX-1301HD Explosion-Proof IP PTZ Camera is a new, exciting addition to the rugged Veilux Explosion-Proof line. This powerful PTZ Explosion-Proof device has been meticulously designed and certified to meet the rigorous requirements for hazardous areas for both explosive gases and dust. The SVEX-1301HD provides a powerful, reliable IP video solution for challenging environments that can exist on Oil Rigs, Various Production facilities, Chemical Plants, Government and Military installations. The Veilux SVEX-1301HD provides the user not only with a rugged explosion-proof PTZ design, but also with an amazing 1.3 megapixel IP video solution for an exceptional image. This combination of features make this camera one the most talked about designs by engineers and designers alike.
Features
- 360 Degree Continuous Pan: Enables complete area coverage without blind spots, ensuring comprehensive surveillance.
- 128 Preset Positions: Allows quick camera alignment to key areas, improving response time in critical situations.
- IP68 Rated Waterproof: Ensures durability and reliability in harsh environments, protecting against dust and water ingress.
- Wiper, Heater and Sun Shield Included: Provides optimal performance under varying weather conditions, extending the camera’s operational life.
Veilux SVEX-1301HD Detailed Camera Specifications
| Camera Type | IP PTZ Dome Camera |
| Resolution | 1.3 Megapixels |
| Pan Range | 360 Degrees Continuous |
| Waterproof Rating | IP68 |
| Preset Positions | 128 |
| Included Accessories | Wiper, Heater, Sun Shield |
SKU  | SVEX-1301HD |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Digital Zoom, Heater & Fan, Weather Resistant |
| Manufacturer | Veilux |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 1.3 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 18X |
| Mount Type | Pedestal, Wall |
| Durability | Explosion Proof, Indoor, Weather Resistant |
| Voltage | 100-240vAC |
| Automatic Gain Control (AGC) | Auto/Manual |
| Image Device | 1/4˝ ExView HAD CCD |
| Minimum Scene Illumination | 0.7Lux (Color) / 0.01Lux (Black) |
| Operating Humidity | <95%RH [77°F (+25°C)] |
| Operating Temperature | -40°F ~ +140°F (-40°C ~ +60°C) |
| S/N Ratio | > 50dB |
| Video Output | Composite, 1.0Vp-p, 75Ω, BNC |
| Weatherproof | IP68 |
| Angle of View | 48° (Wide) / 2.8° (Tele) |
| Automatic White Balance | Auto/Manual/Auto track/Indoor/Outdoor |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Heater & Fan | Yes |
| Digital Zoom | Yes |
SVEX-1301HD-Specsheet
