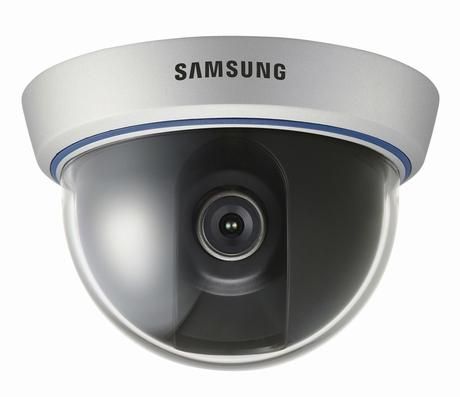

Hanwha Vision sid-53-N 580TVL Indoor Mini Dome Camera, 3mm
SKU
sid-53-N
Model No
sid-53-N
$25.26
Product Highlights
- 1/3" Super HAD color CCD
- Built-in W-IV, the latest generation of Winner DSP engine
- Built-in A/I fixed lens : 3mm
- Compact, light weight and stylish design
- Built-in SSNRII, Upgraded Noise Reduction technology
Speak to an expert
Hanwha Vision sid-53-N high-resolution mini dome cameras deliver outstanding images to your monitor. Utilizing our 4th generation WIVDSP, these cameras feature 580TV lines of resolution. You will enjoy low noise high quality color images because of advances in noise filtering technology. It is easy to install these palm size dome cameras, which blend well with any environment.
Hanwha Vision sid-53-N Camera Features
- 1/3" Super HAD color CCD - Provides superior image quality with vibrant colors and clarity.
- Built-in W-IV, the latest generation of Winner DSP engine - Enhances image processing for superior performance in various lighting conditions.
- Built-in A/I fixed lens: 3mm - Ideal for indoor surveillance, allowing a wide field of view.
- Compact, lightweight, and stylish design - Easily integrates into any environment without being obtrusive.
- Built-in SSNRII, Upgraded Noise Reduction technology - Minimizes noise in low-light conditions, ensuring clear images.
- High resolution of 580TV lines - Captures detailed images, making identification easier.
- Min. illumination of [email protected] (Color, Sens-up) - Performs well in low-light environments, enhancing security monitoring.
- S/N ratio of 52dB - Ensures high-quality audio and video output for better surveillance.
- Voltage: 12V DC - Compatible with standard power supplies for easy installation.
Hanwha Vision sid-53-N Detailed Camera Specifications
| Image Sensor | 1/3" Super HAD color CCD |
| Resolution | 580TV lines |
| Lens | Built-in A/I fixed lens: 3mm |
| Noise Reduction | Built-in SSNRII |
| Minimum Illumination | [email protected] (Color, Sens-up) |
| S/N Ratio | 52dB |
| Power Supply | 12V DC |
| Design | Compact and lightweight |
SKU  | sid-53-N |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction |
| Manufacturer | Hanwha Vision |
Camera Signal  | Analog |
| Resolution | 580 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Lens Size | 3mm |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | Auto |
| Image Device | 1/3" Super HAD color CCD |
| Image Pixels Total | 811(H) x 508(V) |
| Image Pixels-Effective | 768(H) x 494(V) |
| Minimum Scene Illumination | [email protected] (Sens-up mode) |
| Operating Humidity | 30% ~ 80% RH |
| Operating Temperature | -10°C ~ +50°C |
| Dimensions (W x H) | Ø104(W) x 67(H)mm / Ø4.09”(W) x 2.64”(H) |
| Power Consumption | Max. 1.8W |
| Power Requirements | 12vDC |
| S/N Ratio | 52dB (AGC off, Weight on) |
| Scanning Horizontal | 15,734KHz |
| Scanning System | 2 : 1 Interlace, 525 Lines / 60 Fields/ 30 Frames |
| Scanning Vertical | 59.94Hz |
| Video Output | 1.0Vp-p / 75Ω (Video 0.714Vp-p, Sync 0.286Vp-p) |
| Synchronization | Internal |
| Backlight Compensation | Auto |
| Automatic White Balance | Auto |
| Auto Gain Control | Auto |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Auto Gain Control | Yes |
