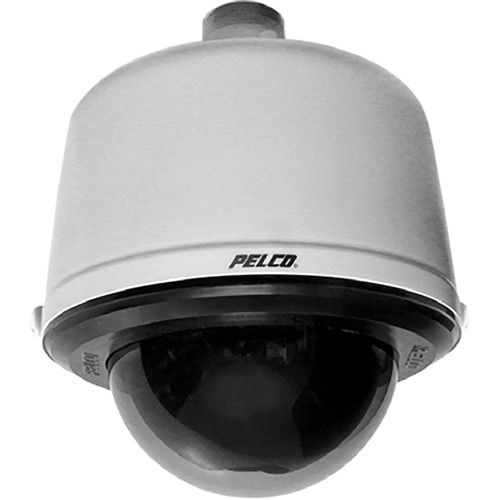

Pelco SD436-PG-0 Spectra IV SE 36X Integrated Dome Camera System, Smoked Bubble, Gray, NTSC

The SD436-PG-0 from Pelco is a Spectra IV SE 36x Day/Night Indoor Dome Camera, black. Spectra® IV SE was designed with ease of installation and ease of maintenance in mind. Each dome system consists of three components: a back box, a dome drive a lower dome. These three system components are interchangeable with other Spectra IV SE dome systems, making retrofitting and application adjustments simple. Also, dome drives and lower domes can be removed and replaced reducing maintenance time. It features a built-in back box memory to store camera and location-specific dome settings, including labels, presets, patterns zones. A passive UTP circuit is located on the door assembly for convenient video transmission through twisted pair wire. For added flexibility, fiber modules can also be attached to the door assembly for transmission over single-mode or multimode fiber.

This indoor camera features the LowLight technology that allows it to compensate for scenes where minimal light is present. It features built-in motion detection and 128x WDR (Wide Dynamic Range) that enables the system to compensate for scenes where dramatic contrasts in lighting are present. The camera’s electronic image stabilization digitally reduces blurring of the camera image due to vibration caused by external sources, such as wind and traffic. Auto sharpness enhances picture detail by increasing the aperture gain of the camera and sharpening the edges in the picture. The dome drive features removable and fixed mount bracket only (camera and lens not included).

Spectra IV SE dome systems feature many software enhancements that increase performance and make configuration and operation easy. An internal scheduling clock allows for the scheduling of presets and patterns. Window blanking enables a user to configure up to eight, four-sided, user-defined privacy areas. Password protection prevents unauthorized users from changing system settings. Configurable on-screen compass and tilt display provides positioning information when needed. Intuitive multilingual on-screen menus can be displayed in English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish Czech.

Features

• 2 Autofocus, High Resolution Integrated Camera/Optics Packages; Multiple Back Box Models
• Day/Night, 540 TVL, 128X Wide Dynamic Range (WDR), Motion Detection, and Electronic Image Stabilization (SD436 Series)
• Day/Night, 540 TVL, 128X Wide Dynamic Range (WDR), and Motion Detection (SD429 Series)
• Auto tracking
• Window Blanking
• Camera Title Overlay, 20 User-Definable Characters
• Horizontal and Zone Blanking
• On-Screen Compass and Tilt Display
• Password Protection
• Low Lux Noise Reduction
• Built-in Surge and Limited Lightning Protection
• Sure Focus
• Integrated Passive Unshielded Twisted Pair (UTP) Circuit
• Internal Scheduling Clock
• Ability to Add IP Network Capability by Purchasing Optional TXB-N Module
• Standard and Environmental Models
• Built-in Memory Stores Camera/Dome Settings
• Standard Pendant Available in Black or Gray Finish; Environmental Pendant Gray Finish Only
• Quick Disconnect to Dome Drive
• Aluminum Construction
• Environmental Model Includes Sun Shield, Fan, and Heater
• Integrated Passive UTP
