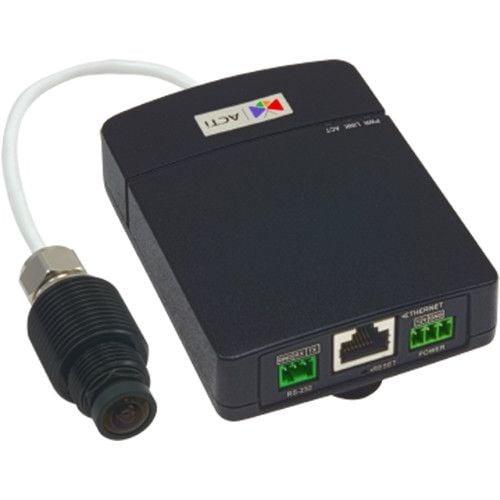

ACTi Q12 2 Megapixel Indoor Covert Camera, 2.55mm Lens
Model No
Q12
$1,120.50
Product Highlights
- 2 Megapixel
- Fixed Lens with f2.55mm/F2.2
- Basic WDR
- Super wide angle
- Easy-to-Install for mounting solutions
Speak to an expert
The Q12 from ACTi is a high-performance 2MP Indoor Covert Camera designed to deliver exceptional surveillance quality with its innovative features. This compact camera is equipped with a 2.55mm fixed lens and Basic WDR technology, ensuring clear images in diverse lighting conditions. The camera’s adaptability, combined with a range of connectivity options, makes it an ideal choice for discreet indoor monitoring.
ACTi Q12 Camera Features
- 2 Megapixel: Provides high-definition video quality, ensuring clear detail for accurate monitoring.
- Fixed Lens with f2.55mm/F2.2: Offers a super wide angle of 110.3°, enhancing coverage and reducing blind spots.
- Basic WDR: Improves visibility in challenging lighting conditions, ensuring effective surveillance day or night.
- Audio Support: Captures audio along with video for comprehensive situational awareness.
- MicroSDHC/MicroSDXC Support: Allows for local video storage, making it easy to manage recordings without additional hardware.
- Power over Ethernet (PoE): Simplifies installation and reduces the need for multiple cables, providing both power and data via a single cable.
Detailed Specifications for ACTi Q12
| Camera Type | Indoor Covert |
| Resolution | 2 Megapixel (1080p) |
| Frame Rate | 30fps |
| Lens | Fixed, f2.55mm/F2.2 |
| View Angle | 110.3° (HOV) |
| WDR Technology | Basic WDR |
| Noise Reduction | 2D+3D DNR |
| Audio Capability | Audio support built-in |
| Storage | MicroSDHC/MicroSDXC compatible |
| Power Supply | PoE/DC12V |
| Environmental Compliance | EN50155 |
| Input/Output | DI/DO, RS-232 |
SKU  | Q12 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.55mm |
| Mount Type | Bracket Required |
| Compression Method | M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 100.33mm x 75mm x 25.5mm (3.95" x 2.95" x 1") |
| Electronic Shutter | 1/5 ~ 1/32,000 sec (manual mode); 1/5 ~ 1/32,000 sec (auto mode) |
| Image Device | 1/2.8'' Progressive Scan CMOS |
| Image Pixels-Effective | 1944(H) x 1224(V) (2.38 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F2.8 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Consumption | PoE Class 2 (IEEE802.3af) / 4.32 W, DC 12V (adapter not included) / 3.6 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 52 dB |
| Digital Noise Reduction | 2D + 3D |
| Angle of View | 110.3° (overview area), 67.3° (high detail area) |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | Automatic, hold and manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
