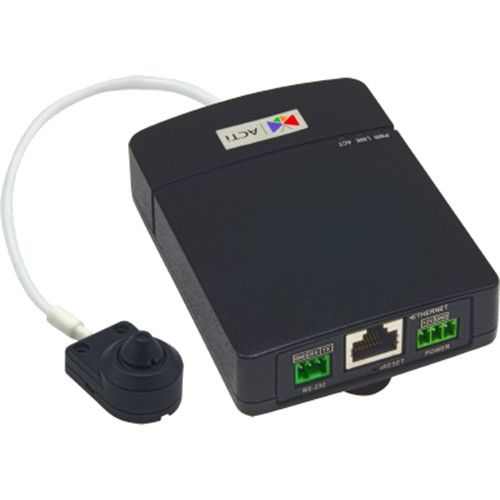

ACTi Q113 2 Megapixel Indoor L-Shape Pinhole Covert Camera, 3.7mm Lens
SKU
Q113
Model No
Q113
$973.35
Product Highlights
- 2 Megapixel
- Fixed Lens with f3.7mm/F2.5
- Basic WDR
- Wide Angle
- Easy-to-Install for mounting solutions
Speak to an expert
The Q113 from ACTi is a cutting-edge 2MP Indoor L-Shape Pinhole Covert Camera designed for discreet surveillance without compromising on performance. Featuring a fixed 3.7mm lens, advanced image clarity with Basic WDR, and versatile recording options including H.264 encoding, this camera ensures superior image quality at 1080p/30fps. Its user-friendly installation and robust connectivity options make it an ideal choice for various security applications.
ACTi Q113 Camera Features
- 2 Megapixel: Provides high-resolution clarity for detailed image capture.
- Fixed Lens with f3.7mm/F2.5: Delivers a wide horizontal viewing angle of 84.5°, ensuring effective coverage of large areas.
- Basic WDR: Enhances image quality in varying light conditions, improving overall visibility.
- Wide Angle: Allows for comprehensive monitoring of the environment without blind spots.
- Easy-to-Install: Simplifies mounting solutions, making setup quick and efficient.
- Event Trigger: Enables automatic responses and notifications, enhancing surveillance capability.
Detailed Specifications for ACTi Q113
| Feature | Details |
|---|---|
| Resolution | 2 Megapixel |
| Lens Type | Fixed, f3.7mm/F2.5 |
| Horizontal View Angle | 84.5° |
| Video Compression | H.264 |
| Frame Rate | 1080p at 30fps |
| Dynamic Range | Basic WDR |
| Noise Reduction | 2D+3D DNR |
| Audio Support | Yes |
| Storage Options | MicroSDHC/MicroSDXC |
| Power Options | PoE/DC12V |
| Compliance | EN50155 |
| Digital Inputs/Outputs | DI/DO |
| Serial Interface | RS-232 |
SKU  | Q113 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.7mm |
| Mount Type | Bracket Required |
| Compression Method | M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 100.33mm x 75mm x 25.5mm (3.95" x 2.95" x 1") |
| Electronic Shutter | 1/5 ~ 1/32,000 sec (manual mode); 1/5 ~ 1/32,000 sec (auto mode) |
| Image Device | 1/2.8'' Progressive Scan CMOS |
| Image Pixels-Effective | 1944 (H) x 1224 (V) (2.38 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F2.5 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Consumption | PoE Class 2 (IEEE802.3af) / 4.32 W, DC 12V (adapter not included) / 3.6 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 52 dB |
| Digital Noise Reduction | 2D + 3D |
| Angle of View | 84.5° |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | Automatic, hold and manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
