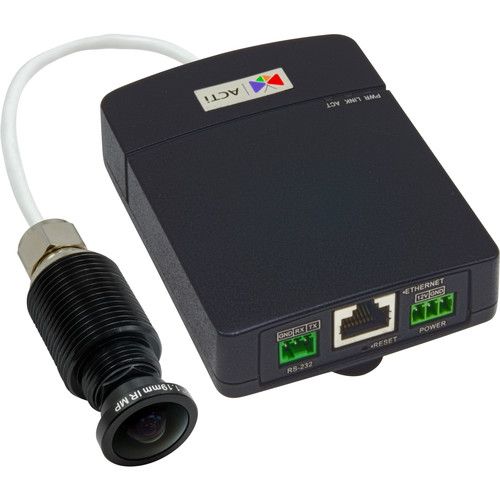

ACTi Q111 5 Megapixel Indoor Fisheye Covert Camera, 1.9mm Lens
SKU
Q111
Model No
Q111
$615.60
Product Highlights
- 5 Megapixel with 1080p
- Fixed Lens with f1.19mm / F2.0
- Basic WDR (74 dB)
- 15 fps at 2592 x 1944
- 180/360° Fisheye View
Speak to an expert
The Q111 from ACTi is a 5MP indoor fisheye covert camera equipped with basic WDR and a 1.9mm fixed lens, designed to deliver exceptional image quality and coverage in various surveillance applications.
ACTi Q111 Camera Features
- 5 Megapixel Resolution: Provides high-definition 1080p video, ensuring clear and detailed images for enhanced surveillance.
- Fixed Lens (1.9mm): The lens is optimized for fisheye views, allowing for comprehensive coverage of indoor areas without blind spots.
- Basic WDR (74 dB): Enhances image clarity in challenging lighting conditions, supporting accurate monitoring in both bright and dark areas.
- 15 fps at 2592 x 1944: Facilitates smooth video playback, crucial for accurate incident analysis in high-resolution environments.
- 180/360° Fisheye View: Offers versatile panoramic coverage, making it ideal for monitoring large spaces with minimal camera placement.
- Vibration Proof (EN50155): Ensures durability and reliability in various environments, maintaining performance even in challenging conditions.
ACTi Q111 Detailed Specifications
| Feature | Details |
|---|---|
| Model | ACTi Q111 |
| Image Sensor | 5 Megapixel |
| Lens Type | Fixed, 1.9mm |
| WDR Capability | Basic WDR (74 dB) |
| Video Resolution | 2592 x 1944 (15 fps) |
| View Type | 180/360° Fisheye |
| Durability Standard | Vibration Proof (EN50155) |
SKU  | Q111 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | ACTi |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.9mm |
| Mount Type | Bracket Required |
| Compression Method | M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 100.33mm x 75mm x 25.5mm (3.95" x 2.95" x 1") |
| Electronic Shutter | 1/5 ~ 1/32,000 sec (manual mode); 1/5 ~ 1/32,000 sec (auto mode) |
| Image Device | 1/3.2" Progressive Scan CMOS |
| Image Pixels-Effective | 2592 (H) x 1944 (V) (5.04 MP) |
| Minimum Scene Illumination | Color: 0.1 lux at F2.0 (30 IRE, 2400°K) |
| Operating Humidity | 10% ~ 85% RH |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Consumption | PoE Class 2 (IEEE802.3af) / 4.32 W, DC 12V (adapter not included) / 3.6 W |
| Privacy Zone | 4 configurable regions |
| Protocols | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| S/N Ratio | 52 dB |
| Digital Noise Reduction | 2D + 3D |
| Angle of View | 189.67° (overview area), 115.7° (high detail area) |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | Automatic, hold and manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
