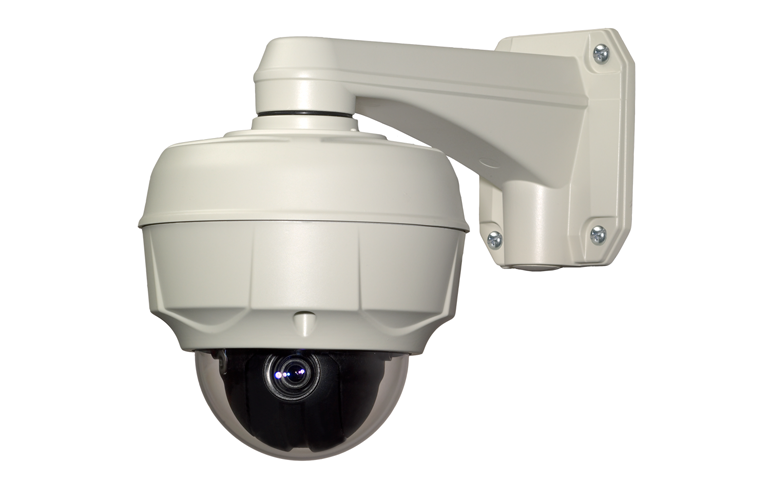

Ganz PT112N 12X Indoor Vandal Resistant Fully Programmable PTZ Dome

SKU
PT112N
Model No
PT112N
$496.70
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Low noise & low vibration
  • True Day/Night (retractable IR cut filter)
  • Auto-flip feature
  • Built-in alarm sensor in function
  • Compact / vandal-resistant

The Ganz PT112N 12X Indoor Vandal Resistant Fully Programmable PTZ Dome offers advanced surveillance solutions with its seamless integration of fast motion capabilities and superior zoom functionality. Designed for high-performance environments, it enhances security with programmable features and durable construction, ensuring reliable operation across various conditions.

Ganz PT112N Camera Features

  • Fast & Silent Motion: Equipped with vector drive technology for shortest path panning and tilting, it ensures discreet surveillance without noticeable noise.
  • Optimum Accuracy: Micro-stepping motor control provides precise movements, enhancing tracking accuracy and responsiveness during operations.
  • Superior Zoom Camera: 144X zoom, combining optical and digital capabilities, allows for detailed imaging, crucial for identifying subjects over distances.
  • Day/Night Functionality: The retractable IR cut filter ensures quality footage in both bright and low-light conditions, enhancing 24/7 surveillance.
  • Powerful Functions: Features like 127 preset positions and multiple operational patterns allow for customizable surveillance tailored to specific environments.
  • Weatherproof Design: With an IP66 rating, this camera operates flawlessly in various weather conditions, ensuring consistent surveillance performance.
  • Built-in Alarm Sensor: Adds an extra layer of security by triggering alerts based on predefined conditions, integrating seamlessly into security systems.

Detailed Camera Specifications (Ganz PT112N)

Product TypeIndoor Vandal Resistant PTZ Dome
Zoom CapabilityOptical 12X, Digital 12X (144X combined)
Image Resolution560 TVL (color), 600 TVL (black & white)
Power Supply24VAC Power input
Rotation RangeEndless 360°/sec Pan rotation
Operating SpeedMaximum panning speed of 360°/sec, minimum 0.05°/sec
Preset Positions127 with alpha-numeric labels
Weather RatingIP66 for all weather conditions
Special FeaturesAuto-flip, Auto-parking, and built-in heater
DimensionsCompact design suitable for various mounting options
Protocols SupportedPelco P & D Protocol ready
SKU  PT112N
Features  Auto Gain Control, Back Light Compensation, Day/Night, On Screen Display Menu, Vandal Resistant
Manufacturer  Ganz
Camera Signal     Analog
Resolution    560 TVL
Lens Size    12X
Infrared Distance    Non Infrared
Durability    Indoor, Vandal Resistant
Mount Type  Ceiling, Wall
Voltage  24vAC
Electronic Shutter    1/60(50) ~ 1/10000 sec
Image Device    1/4'' Super-HAD CCD
Image Pixels Total811(H)×508(V) 410K
Image Pixels-Effective768(H)×494(V) 380K
Minimum Scene Illumination  2.0 Lux
Operating Temperature    0°C ~ 40°C , (*-30 ~ 50°C / -22~ 122°F)
Dimensions (W x H)  Dome : ?115 , Ceiling ?178× 233(H) mm , Housing ?154.5 × 158.5(H) mm , *?178 × 244(H)×289(H) mm
OSD Menu    Menu / PTZ information etc
Power Requirements12 VDC, 24 VAC
Privacy Zone    8 Zone
Protocols  Pelco-D, Pelco-P selectable
S/N Ratio  52 dB (AGC Off)
Signal System    NTSC
Video Output    BNC
Weatherproof    IP66
Zoom Ratio    ×12 Optical Zoom, ×12 Digital Zoom
Backlight Compensation    On / Off
Rotation Angle360°/sec
Automatic White Balance    Auto / Manual(Red, Blue Gain Adjustable)
Auto Gain Control    Auto / Manual
Flickerless    Selectable
Back Light Compensation    Yes
Day/Night    Yes
On Screen Display Menu    Yes
Auto Gain Control    Yes
