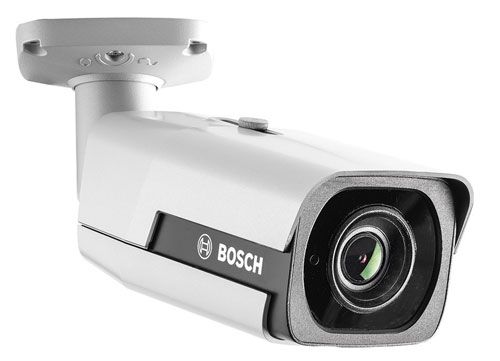

Bosch NTI-40012-A3 IP Bullet Camera, 2.7-12mm
SKU
NTI-40012-A3
Model No
NTI-40012-A3
$273.71
Product Highlights
- Easy to install with auto zoom/focus lens, wizard and pre-configured modes
- Built-in IR illuminator with 30 m (98 ft) viewing distance
- 720p resolution for sharp images
- Regions of interest and E-PTZ
Speak to an expert
The Bosch NTI-40012-A3 IP Bullet Camera is designed for professional surveillance needs, providing high-quality 720p HD images. Its robust construction ensures reliability in various environments, while the advanced day/night functionality guarantees excellent performance at any time. With built-in infrared LEDs, this camera offers exceptional nighttime monitoring, allowing visibility up to 30 meters (98 feet) in total darkness, making it an ideal choice for comprehensive security solutions.
Bosch NTI-40012-A3 Camera Features
- Easy Installation: Comes with an auto zoom/focus lens, setup wizard, and pre-configured modes for quick deployment and reduced installation time.
- Superior Night Vision: The built-in IR illuminator extends viewing capabilities, providing effective monitoring in low-light conditions up to 30 meters (98 feet).
- 720p HD Resolution: Ensures sharp and clear images, enhancing the detail in surveillance footage for better identification and monitoring.
- Regions of Interest and E-PTZ: Allows users to define specific areas for monitoring and enables electronic pan-tilt-zoom capabilities, enhancing the camera's versatility.
Detailed Specifications for Bosch NTI-40012-A3
| Model | Bosch NTI-40012-A3 |
| Camera Type | IP Bullet Camera |
| Resolution | 720p |
| Lens Type | 2.7-12mm Auto Zoom/Focus |
| Night Vision Distance | 30m (98ft) |
| Infrared LEDs | Built-in |
| Features | Regions of Interest, E-PTZ |
| Installation | Wizard and Pre-configured Modes |
SKU  | NTI-40012-A3 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Bosch |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 0.9 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.7-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, 24vAC, PoE |
| Dimensions (W x H) | 271 x 90 x 90 mm (10.7 x 3.5 x 3.5 in) |
| Electronic Shutter | Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable; Default shutter |
| Image Device | 1/2.9-inch CMOS |
| IR LEDs | 4 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | (3200K, reflectivity 89%, F1.3, 30IRE), Color: 0.07 lx, Mono: 0.05 lx, With IR: 0.0 lx |
| Operating Humidity | 20% to 90% relative humidity (non condensing) |
| Operating Temperature | -30 ºC to +60 ºC (-22 ºF to +148 ºF) for continuous operation; -34 ºC to +74 ºC (-30 ºF to +165 ºF) according to NEMA TS 2-2003 (R2008), para 2.1.5.1 using fig. 2.1 test profile |
| Power Consumption | PoE (12 W); 24 VAC (12.13 W); +12 VDC (13.2 W) |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP |
| Scanning System | Progressive |
| Signal System | NTSC, PAL |
| Video Output | CVBS, 1 Vpp, BNC connector, 75 Ohm Selectable standard |
| Weatherproof | IP66 |
| Digital Noise Reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Angle of View | Horizontal: 32° - 100°, Vertical: 18° - 53° |
| Rotation Angle | 360º |
| Back Light Compensation | On/off |
| Automatic White Balance | Four automatic modes, manual mode and measure |
| IR Distance | 30m/98 ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
