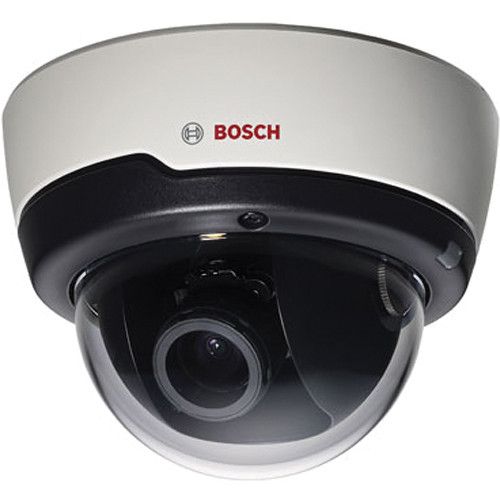

Bosch NII-40012-V3 FlexiDome Indoor 720p IR Network Dome Camera
SKU
NII-40012-V3
Model No
NII-40012-V3
$589.00
Product Highlights
- Indoor IP dome camera with varifocal lens
- 720p resolution for sharp images
- Regions of interest and E-PTZ
- Motion, tamper and audio detection
- IR version with 15 m (50 ft) viewing distance
Speak to an expert
The Bosch NII-40012-V3 FlexiDome Indoor 720p IR Network Dome Camera is designed for high-quality security surveillance needs, delivering sharp 720p images even in low-light conditions thanks to its intelligent infrared capabilities. Its advanced features, such as Dynamic Noise Reduction and efficient H.264 compression, ensure clear images while minimizing bandwidth usage, making it ideal for demanding applications.
Bosch NII-40012-V3 Camera Features
- Indoor IP Dome Camera: The varifocal lens allows for flexible installation options, catering to various security needs.
- 720p Resolution: Ensures sharp and detailed images for effective monitoring.
- Regions of Interest and E-PTZ: Customize focus areas and digital zoom capabilities to enhance surveillance effectiveness.
- Motion, Tamper, and Audio Detection: Alerts users to potential security breaches, ensuring timely response to incidents.
- Infrared Capability: 15 m (50 ft) viewing distance in complete darkness, enhancing night-time surveillance.
Bosch NII-40012-V3 Detailed Camera Specifications
| Camera Type | Indoor IP Dome |
| Resolution | 720p |
| Lens Type | Varifocal |
| IR Viewing Distance | 15 m (50 ft) |
| Compression Technology | H.264 |
| Features | Dynamic Noise Reduction, E-PTZ |
| Detection Features | Motion, Tamper, Audio |
| Bandwidth Reduction | Up to 50% compared to conventional cameras |
SKU  | NII-40012-V3 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Bosch |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 0.9 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3-10mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Diameter: 135 mm (5.32 in), Height: 102 mm (4 in) |
| Electronic Shutter | Automatic Electronic Shutter (1/25[30] to 1/150000), Fixed shutter (1/25[30] to 1/15000) selectable |
| Image Device | 1/2.7-inch CMOS |
| Image Pixels Total | 1952 x 1092 (2MP) |
| IR LEDs | 15 |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color 0.24 lx, Mono 0.05 lx, With IR 0.0 lx |
| Operating Humidity | 20% to 90% relative humidity (non condensing) |
| Operating Temperature | -20 ºC to +50 ºC (-4 ºF to +122 ºF) |
| Power Consumption | 4.5 W max., 6.0 W max. (IR version) |
| Privacy Zone | Four independent areas, fully programmable |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, NTP (SNTP), SNMP (V1, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox |
| S/N Ratio | > 50 dB |
| Video Output | CVBS, 1 Vpp, 2.5 mm jack, 75 Ohm Selectable standard |
| Digital Noise Reduction | Intelligent Dynamic Noise Reduction |
| Angle of View | 36° - 117° |
| Rotation Angle | 355º |
| Back Light Compensation | On/off |
| Automatic White Balance | 3 automatic modes, manual mode and measure |
| IR Distance | 15 m (50 ft) |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
