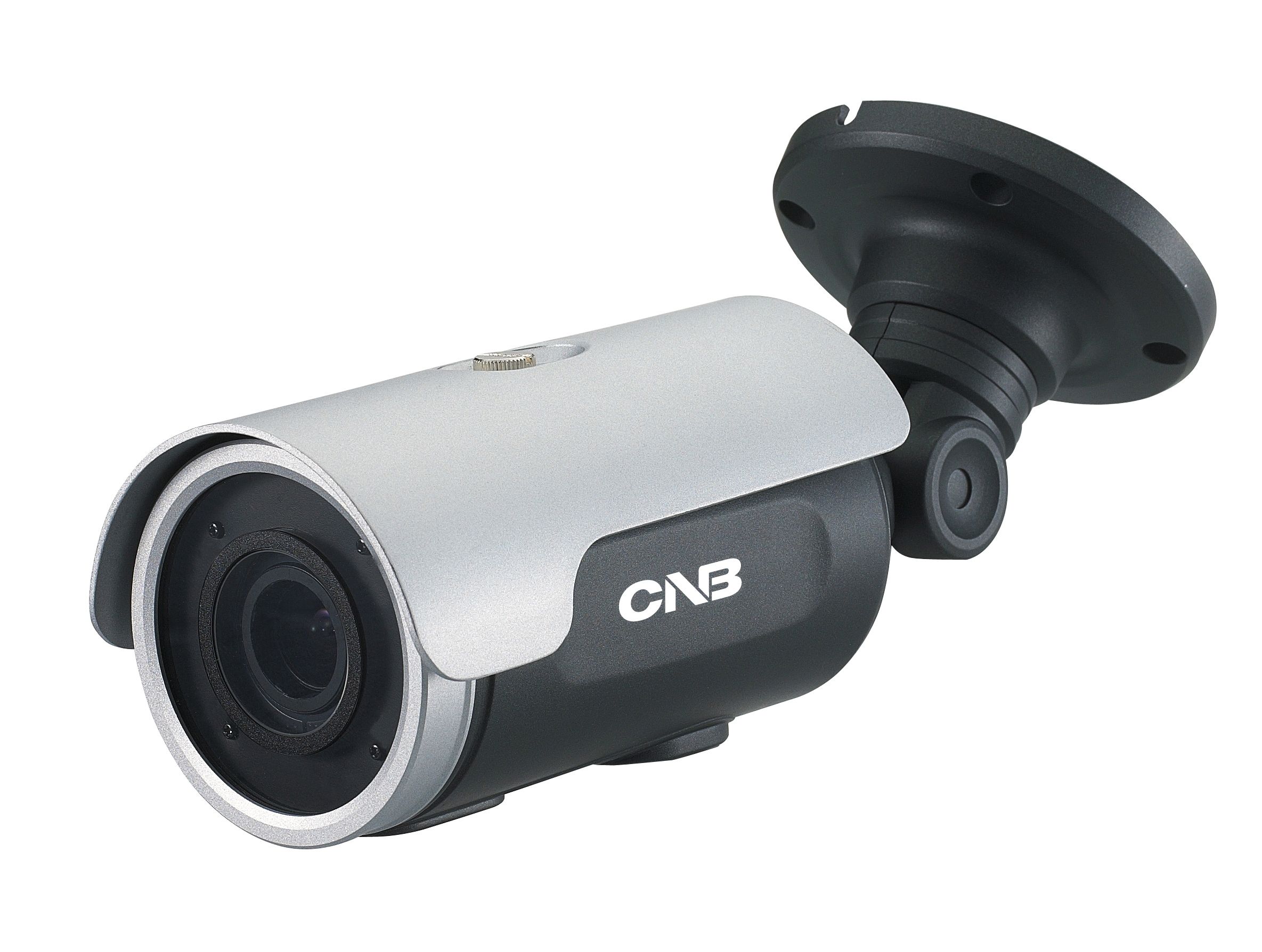

CNB NB22-7MH Bullet Network Camera with 2.8-12mm Lens

SKU
NB22-7MH
Model No
NB22-7MH
$324.00
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Full HD Bullet IP Camera
  • 1/3″ Progressive scan CMOS Sensor
  • Dual-Codec (H.264/MJPEG)
  • Progressive scan megapixel (2M CMOS)
  • Multi profile streaming (5 different streams per Resolution, Frame, Rate, Codec)

CNB NB22-7MH is a Dual-Codec (H.264/MJPEG) 2 megapixel IP camera with vandal proof housing for indoor and outdoor applications. Multiple simultaneous video streams of differentiated resolutions and frame rates will ensure highest quality service while enabling simultaneous connections through lower speed networks. Dark Hunter technology is the most optimized solution for indoor and outdoor surveillance in low-light conditions by using superior CMOS sensor with low-light sensitivity ISP sensor. Dark Hunter is especially beneficial in poor lighting environments, efficiently reducing noise and ghosting while maintaining a color image without the use of IR LEDs.

Features

  • Full HD Bullet IP Camera - Provides crystal clear resolution for enhanced surveillance quality.
  • 1/3” Progressive scan CMOS Sensor - Improves image clarity and reduces motion blur in videos.
  • Dual-Codec (H.264/MJPEG) - Offers flexibility in video compression for various network conditions.
  • Progressive scan megapixel (2M CMOS) - Captures detailed image even during rapid movements.
  • Multi profile streaming - Supports 5 different streams per resolution, frame, rate, and codec for optimal performance.
  • Digital PTZ, video crop - Enables zoom and focus on important areas of interest without sacrificing image quality.
  • Analog video output (CVBS) - Compatible with older CCTV systems for versatile installation options.
  • Built-in standard PoE - Simplifies installation by allowing power and data transmission over a single cable.
  • Two-way audio communication - Facilitates real-time interaction for enhanced security monitoring.
  • Dark Hunter - Enhances low-light performance ensuring clarity in dark environments without IR LEDs.
  • Compact design & Easy installation - Facilitates easy wall or ceiling mounting without needing extensive tools.
  • Vandal proof, Weather proof (IP66) - Ensures durability and reliability in challenging outdoor conditions.

CNB NB22-7MH Camera Specifications

FeatureDetails
ModelCNB NB22-7MH
Sensor Type1/3” Progressive scan CMOS
Resolution2 Megapixels
Video CompressionH.264/MJPEG
Streaming Capability5 profiles
Power SupplyStandard PoE
Audio CapabilityTwo-way audio
Environmental RatingIP66 (Vandal and Weather proof)
Installation StyleWall/Ceiling mount
SKU  NB22-7MH
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  CNB
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Varifocal
Lens Size    2.8-12mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Indoor, Vandal Resistant, Weather Resistant
Voltage  12vDC, PoE
Dimensions (W x H)  Ø99mm x 252.7mm
Image Device    Progressive scan 1/3 inch CMOS 1.3M pixels
Minimum Scene Illumination  Dark Hunter Max - 0.0005 Lux
Operating Humidity    8 ~ 80% RH
Operating Temperature    -10℃ ~ 50℃
OSD Menu    English
Privacy Zone    ON / OFF (10 Programmable Zone)
Protocols  IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS
Weatherproof    IP66
Zoom Ratio    X1 ~ X12
Synchronization  Internal
Digital Noise Reduction    3D, DAY : 0~20, NIGHT : 0~20
Mirror    H/ V/ Rotate
Wide Dynamic Range    ON / OFF
Motion Detection Tracking    ON / OFF (4 Programmable Zone)
Back Light Compensation  On/Off
Automatic White Balance    ATW(2.000 K ~ 10,000 K)/ MANUAL / PUSH
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
On Screen Display Menu    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
Digital ZoomYes
