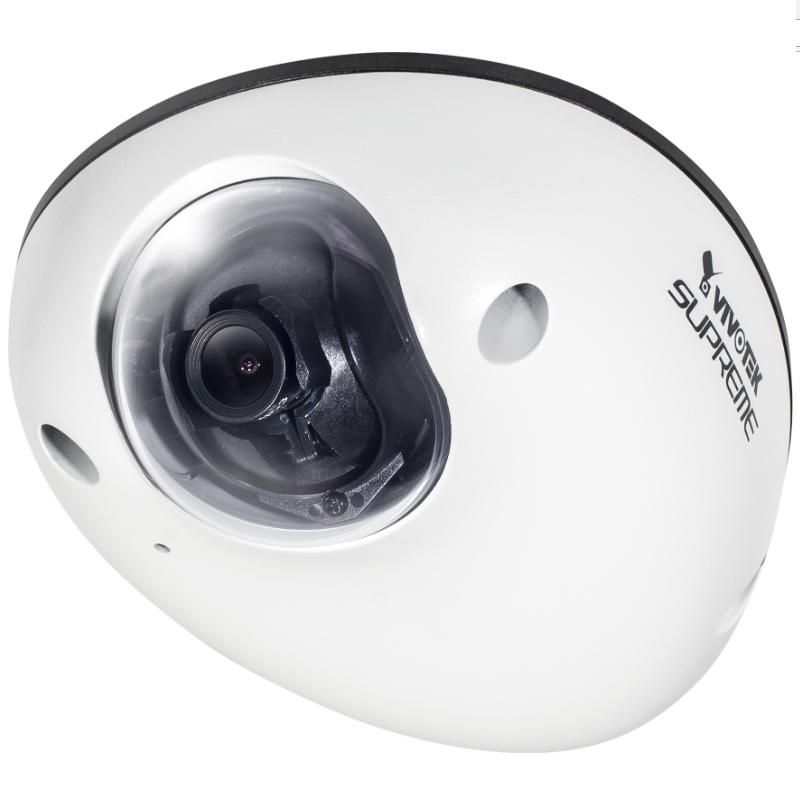

Vivotek's MD8563-EHF4 is a compact 2-megapixel network camera geared toward transportation applications such as buses, trains and other vehicles. With full EN50155 compliance & IP67-rated rugged design, the camera can withstand shocks, vibration, humidity, dust and temperature fluctuations to maintain stable and reliable video during vehicle movement. Furthermore, the vandal-proof IK10-rated metal housing provides effective and robust protection from vandalism. This combination of high-resolution imaging and protective housing endows the MD8563-EHF4 with the rugged reliability required to maximize passenger safety and optimize mobile surveillance. Featuring the Wide Dynamic Range Technology, WDR Pro, the MD8563-EHF4 provides improved visibility in high-contrast lighting environments. In addition, 3D Noise Reduction Technology enables the camera to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise. Taken together, these features allow users to enjoy an increased level of image detail in bright as well as low-light environments. PoE (Power-over-Ethernet) also allows the camera to be operated and powered with a single Ethernet cable, giving greater ease of installation. In order to facilitate on-board storage and data portability, the camera is also equipped with a MicroSD/SDHC/SDXC card slot for local recording. And to further add to the flexibility of this compact camera, in corridor scenarios, its video rotation feature can provide wider vertical coverage for more depth and a larger useful field of view.
Vivotek MD8563-EHF4 Camera Features
2-Megapixel CMOS Sensor: Captures high-resolution images for clear video surveillance.
30 fps @ 1920x1080: Ensures smooth video playback for monitoring purposes.
Smart Stream II to Optimize Bandwidth Efficiency: Reduces bandwidth usage while maintaining quality video feed.
EN50155 Compliance for Professional Mobile Surveillance: Designed specifically for transportation applications.
WDR Pro for Unparalleled Visibility in High Contrast Environments: Enhances image clarity in challenging lighting conditions.
Vandal-proof IK10-rated and Weather-proof IP67-rated Housing: Protects the camera from vandalism and harsh weather.
Built-in 802.3af Compliant PoE: Simplifies installation by allowing power and data transfer over one cable.
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage: Facilitates local recording for data portability.
Video Rotation for Corridor Scenario: Provides optimal coverage and field of view in narrow areas.
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
