KT&C KPC-HDV120F HD Panorama View Vandal Proof Dome Camera
SKU
KPC-HDV120F
Model No
KPC-HDV120F
$409.20
Product Highlights
- 1/2.8″ SONY Exmor CMOS
- 3 Megapixel
- Min. Illumination of 1.0 Lux
- IP 66 (Weather Resistant)
- Digital Day & Night
Speak to an expert
The KPC-HDV120F from KT&C is a 1080p HD panorama view vandal proof dome camera, featuring a 1.25mm fisheye lens for expansive area coverage. This cutting-edge camera is designed for durability and high performance, perfect for both indoor and outdoor surveillance applications.
KT&C KPC-HDV120F Camera Features
- 1/2.8” SONY Exmor CMOS: Ensures enhanced image quality with excellent low-light performance, providing clear and detailed footage.
- 3 Megapixel: Offers superior resolution for a detailed view, enabling better identification of persons and objects.
- Min. Illumination of 1.0 Lux: Captures images even in low-light settings, ensuring reliable surveillance around the clock.
- IP 66 (Weather Resistant): Protects against dust and water, making it suitable for outdoor applications without compromising performance.
- Digital Day & Night: Automatically adjusts to lighting conditions, maintaining optimal image quality day or night.
- 3D DNR / BLC / AGC / WDR / DSS: Advanced image processing technologies that enhance clarity, contrast, and detail in various lighting conditions.
- DC 12V / AC 24V Dual Power: Versatile power options provide flexibility in installation setups.
KT&C KPC-HDV120F Detailed Camera Specifications
| Feature | Details |
|---|---|
| Camera Type | Dome |
| Resolution | 1080p |
| Lens Type | Fisheye, 1.25mm |
| Sensor | 1/2.8” SONY Exmor CMOS |
| Image Sensor Resolution | 3 Megapixel |
| Minimum Illumination | 1.0 Lux |
| Weather Resistance | IP 66 |
| Power Supply | DC 12V / AC 24V |
| Features | Digital Day & Night, 3D DNR, BLC, AGC, WDR, DSS |
SKU  | KPC-HDV120F |
|---|---|
| Features | Auto Gain Control, Back Light Compensation, Day/Night, Digital Noise Reduction, On Screen Display Menu, Vandal Resistant, Weather Resistant |
| Manufacturer | KT&C |
Camera Signal  | HD-SDI |
| Resolution | 1080p |
| Sensor Option | 1/2.8" CMOS |
| Lens Type | Fixed |
| Lens Size | 1.25mm |
| Infrared Distance | Non Infrared |
| Durability | Vandal Resistant, Weather Resistant |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC, 24vAC |
| Electronic Shutter | Auto / Manual |
| Image Device | 3 Megapixel, 1/2.8” SONY Exmor CMOS |
| Image Pixels-Effective | 2096 x 1561 |
| Minimum Scene Illumination | 1.0 Lux |
| Operating Temperature | 14 °F ~ 122 °F (-10 °C ~ 50 °C) |
| Dimensions (W x H) | Bubble (?4.2), ?5.9 x 4.9 inch (Bubble (?107), ?151 x 123.4 mm) |
| OSD Menu | Built-in with Joystick |
| Power Consumption | DC 12V (±10%), Max. 600mA / AC 24V (±10%), Max. 7.2W |
| S/N Ratio | More than 50dB |
| Signal System | NTSC, PAL |

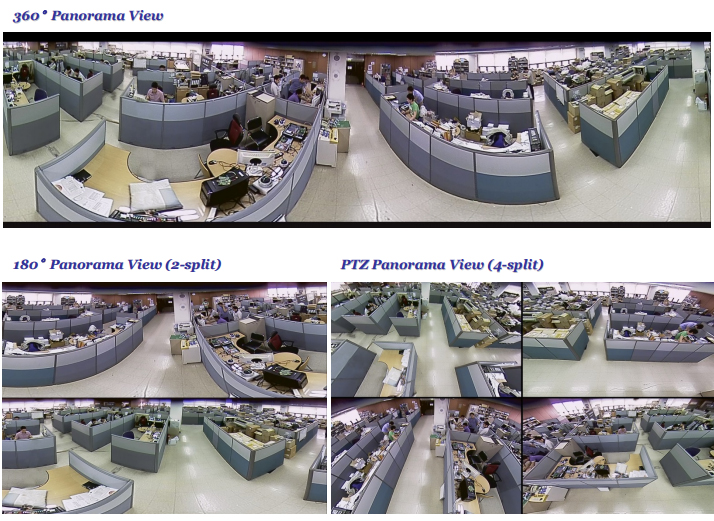

| Video Output | 1080p@30 fps, 1080p@25 fps360° Panorama View / Four PTZ Views / Two 180° Panorama Views / One 360° Panorama View with PAN |
| Weatherproof | IP66 |
| Digital Noise Reduction | 2D DNR |
| Backlight Compensation | On / Off |
| Automatic White Balance | ATW / Manual / Specific Color / Push |
| Back Light Compensation | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| On Screen Display Menu | Yes |
| Auto Gain Control | Yes |
